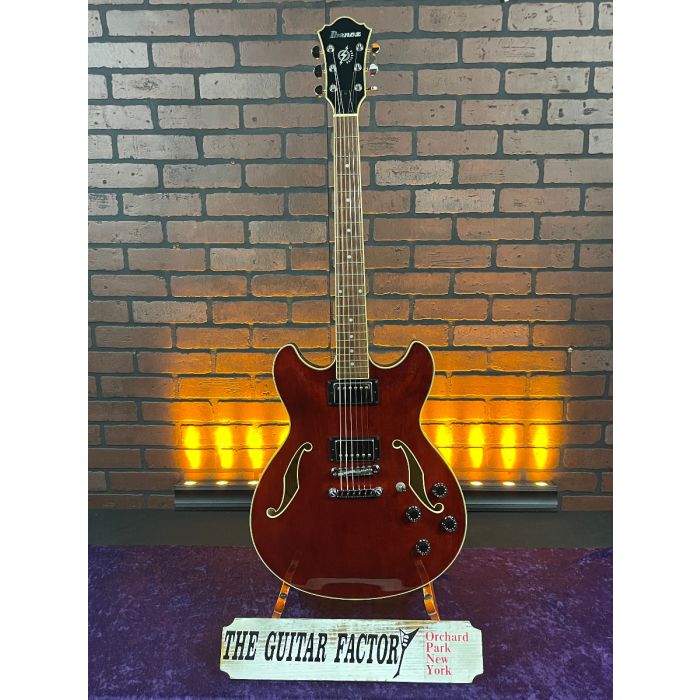

2003 Ibanez Artcore AS73 - Transparent Cherry (TCR) Semi Hollow Body Electric Guitar SN0917

Authorized Dealer

Super Fast Same Day Shipping

Overall excellent Condition especially for a 20 year old guitar. Just Set Up with new strings. Looks, Plays, and Sounds Awesome!!

THIS GUITAR WEIGHS 7.90 LBS

The AS73 is an Artcore series hollow body electric guitar model introduced by Ibanez in 2002.

The AS73 features a double-cutaway, semi-hollow body design constructed of an arched laminated maple top with ƒ holes and ivory multi-binding on laminated maple sides and back. The set-in mahogany neck has a 22-fret rosewood fingerboard with ivory binding and pearl dot position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers and individual volume and tone controls, a Tune-o-matic style bridge with a Quik Change tailpiece, a plastic nut, speed knobs, and Ibanez tuning machines.

Body type:
Hollow body
Dimensions:
Length: 489mm / 19¼"
Width: 400mm / 15¾"
Depth: 67mm / 2⅝" (43mm / 1.69" at tail)
Top:
Material: 2002–2018: Maple (laminated)
2019–2024: Linden (laminated)
Binding: Ivory multi-ply
Back/sides:
Material: 2002–2018: Maple (laminated)
2019–2024: Linden (laminated)
Neck joint:
Set-in
Bridge:
2002–2019: ART-1
2020–2024: Gibraltar Performer (10.5mm string spacing)
Tailpiece:
Quik Change III
Pickguard:
2002–2016: none
2017–2024: 3-ply black/white/black
Knob style:
2002–2010: Speed (black)
2011–2024: Sure Grip III (black)
Hardware color:
Chrome
Neck
Neck type:
2002–2016: Artcore
2017–2024: AS Artcore
Neck material:
2002–2018: 1-piece mahogany
2019–2024: 1-piece nyatoh
Scale length:
628mm/ 24¾"
Fingerboard material:
2002–2017: Rosewood w/ ivory binding
2018: Rosewood or treated New Zealand pine w/ ivory binding
2019: Laurel w/ ivory binding
2020–2024: Walnut w/ ivory binding
Fingerboard inlays:
2002–2014: Pearl dot
2015–2016: White dot
2017–2024: Acrylic block
Frets:
2002–2009: 22 / large nickel silver
2010–2024: 22 / medium nickel silver
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
2002–2014: Ibanez Artcore Humbucker 2 (H)
2015–2024: Ibanez Classic Elite bridge (H) passive/ ceramic
Neck pickup:
2002–2014: Ibanez Artcore Humbucker 1 (H)
2015–2024: Ibanez Classic Elite neck (H) passive/ ceramic
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
Mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
