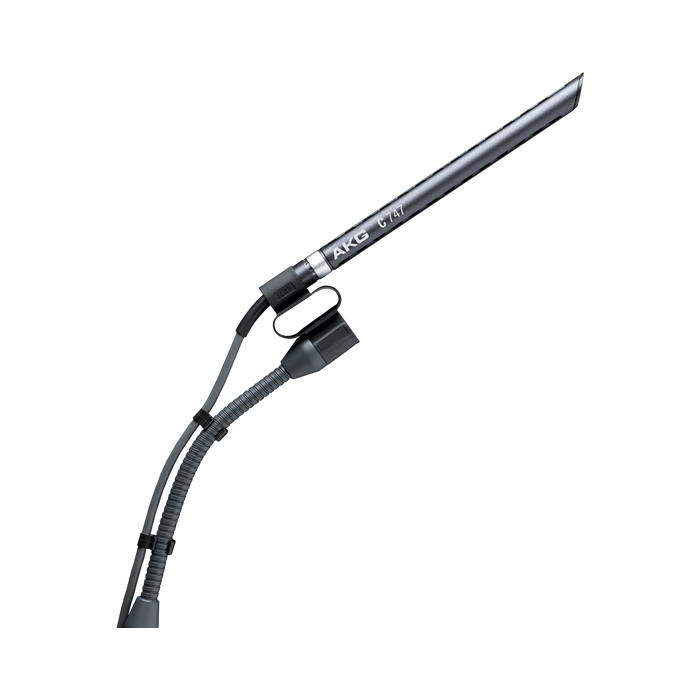

AKG C747 VII Professional Shotgun Condenser Microphone

A history of sound
The C747 V11 is a professional shotgun condenser capsule with a flat frequency response and a clean off-axis response. Due to its brilliant sound reproduction, it is perfect for guitar, piano, drum and overhead recordings. Thanks to its inconspicuous appearance, it is also widely used as a speech and lectern microphone.

The C747 V11 features an integrated RFi shield to block out unwanted interference from mobile phones, wireless microphones and other wireless devices. The C747 V11 ships with an extensive accessory set including a shock mount adapter, mini-gooseneck, stand adapter, mounting clamp, thread link and windscreen.

SPECS

General Specifications

• Audio frequency bandwidth - 30 - 18000 Hz
• Equivalent noise level - 32 dB-A
• Sensitivity - 8.5 mV/Pa
• Signal to Noise - 73 dB-A
• Bass cut filter - 150 Hz
• Electrical impedance - 400 Ohms
• Recommended load impedance - 1500 Ohms
• Polar Pattern - Hypercardioid

Dimensions

• Diameter - 9 mm
• Net Weight - 25 g

Design

• Finish - stage blue

Audio Output

• TypeBalanced XLR
• Gender - Male
• Contacts - 3-pin

Powering Interface

• Voltage9 to 52 V
• Current - 2 mA

Application

• Pro StudioYes
• Presentation - Yes

Instrument

• Drums / PercussionYes
• Piano / Strings - Yes

Device

• Shotgun Microphone - Yes

What's in the Box
1 x C747 V11 Microphone
1 x H47 Shock Mount
1 x MSH70 Short Gooseneck (5.5 in. / 140 mm)
1 x SA47 Stand Adaptor
1 x SA 80 clamp
1 x SHZ80 Screw Link
1 x Windscreen
