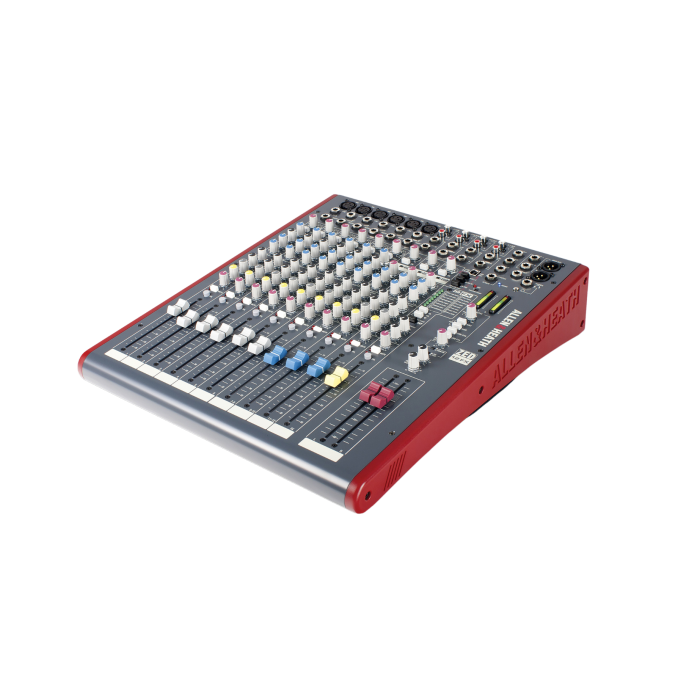

Allen & Heath ZED-12FX Mixer

ZED-12FX is ideal for groups who need to travel light. Even with its small footprint, the 12FX squeezes in 4 auxiliary channels and swept semi-parametric EQ on top of the already impressive feature set including configurable USB audio in/out makes it easy to capture stereo recordings. USB audio flexibility Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it!

CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:- Send options 1) Main Mix Left + Right (Post-fade) 2) Main Mix Left + Right (Pre-Fade) 3) Auxes 1-2 4) Auxes 3-4 Return options 1) To Stereo 3 channel MusiQ ZED-12FX features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ with optimised slope (or Q factor) for equalising individual instruments.

ZED-FX ZED-12FX has an essential selection of 16 time-delay effects, designed for small groups who don't want to carry around an effects unit with their gear but who still want great quality FX at their gigs and on their recordings. Our DSP engineers worked hard, crafting and refining beautiful reverb algorithms to enhance every performance. These effects are available nowhere else at this price point this quality and integration is only available from the ZED-FX. ZED effects are easily controlled using 3 buttons with 9 display LEDs. For example, the ideal delay time can be quickly tapped-in, or the perfect amount of reverb on the lead vocal can be dialled-in. There is one-stop navigation and editing in fact, it's just as easy as using effects pedals. To alter eff

Features

• 6 mono channels and 3 stereo channels with additional stereo inputs
• 16 internal time-delay effects, including delay, reverb, and ping-pong
• Channel inserts and DuoPre preamps for detailed signal control
• 3-band EQ with swept mids (MusiQ system) for natural tone shaping
• 2 pre-fade aux sends, 1 post-fade aux send, and 1 internal FX send
• ALPS 100mm faders for smooth, responsive control
• Integrated USB audio interface with configurable stereo routing
• Tap tempo for effects timing
• 48V global phantom power

Specifications

General
- Series: ZED
- Format: Analog Mixer with USB and Effects
- Orientation: Right-Handed
- Application: Live Sound, Recording

Inputs/Outputs
- Mono Channels: 6 (Mic/Line with DuoPre)
- Stereo Channels: 3 dual stereo inputs with 2-band EQ
- Stereo Returns: Yes (2-track and standard stereo return)
- Main Outputs: XLR (with inserts)
- Aux Sends: 4 total (2 pre-fade, 1 post-fade, 1 FX send)
- USB Audio: Configurable USB stereo in/out
- Insert Points: Yes (Channel & Main Out)
- Monitoring: Headphone out (1/4" & 3.5mm), Stereo Monitor Outs
- Additional Outputs: Stereo Record Out, Alt Stereo Out, Mono Sum L/R

FX & Processing
- Internal FX Engine: 16 effects (Delay, Reverb, Ping-Pong, etc.)
- FX Controls: 3-button navigation, 9 LED indicators

Controls & Features
- EQ: 3-band EQ with swept mid (MusiQ)
- Preamps: DuoPre
- Faders: ALPS 100mm
- Meters: 12-bar L/R meters, Peak and Signal LEDs on all channels
- Channel Mute: Yes
- Stereo Imaging: Per channel control
- Layout: Top-panel controls and connections

Power
- Phantom Power: Global 48V
