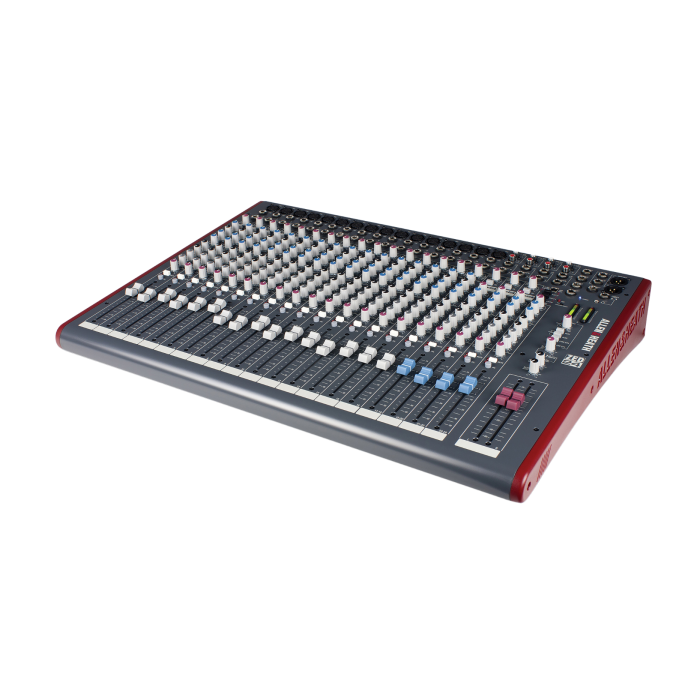

Allen & Heath ZED-24 Mixer TGF33
Brand new. Not available for curbside pickup. Online orders only.
Mint, Perfect, Open Box with Full Allen & Heath Warranty
Features
- 16 mono mic/line channels with DuoPre™ preamps and insert points
- 4 stereo channels with 2-band EQ and extra source inputs
- 4 auxiliary sends (2 pre-fade, 2 post-fade)
- Configurable USB stereo audio in/out
- 3-band EQ with swept midrange (MusiQ) on mono channels
- 2-band EQ on stereo channels
- 100mm ALPS faders for precise level control
- USB send options: Main Mix (pre/post), Aux 1–2, Aux 3–4
- USB return options: To stereo channel 3
- Stereo returns and dedicated playback input
- Neutrik XLR mic and 1/4" jack connectors
- Illuminated mute, PFL, and peak indicators on all channels
- Alt stereo output source for alternate speaker or zone feed
- 12-bar LED meters
- Separate monitor output section
MUSIQ
ZED-24 features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments.
DUOPRE
Based on the proven pre-amps from the hugely successful PA series, ZED-24 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge – 69dB of range to be exact – and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.
USB AUDIO FLEXIBILITY
Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:-
SEND OPTIONS
1) Main Mix Left + Right (Post-fade)
2) Main Mix Left + Right (Pre-Fade)
3) Auxes 1-2
4) Auxes 3-4
RETURN OPTIONS
1) To Stereo 3 channel
Specifications
General
- Series: Allen & Heath ZED
- Format: Analog Mixer
- Category: Passive (non-powered)
Inputs
- 16 x Mono Mic/Line Inputs (XLR & TRS)
- 4 x Stereo Line Inputs (TRS)
- Channel Inserts
- Stereo Playback Input
Outputs
- Main L/R XLR Outputs
- Alt Stereo Output
- Monitor Output
- 4 Aux Sends
- USB Out (Stereo Configurable)
Connectivity
- USB Audio Interface (2-in/2-out; 24-bit, CD quality)
EQ
- 3-Band EQ with Swept Mid on Mono Channels
- 2-Band EQ on Stereo Channels
Faders
- 100mm ALPS Faders
Other
- 12-Segment LED Metering
- Phantom Power: 48V
- USB Routing Switches
- Rugged Construction for Touring/Live Use
