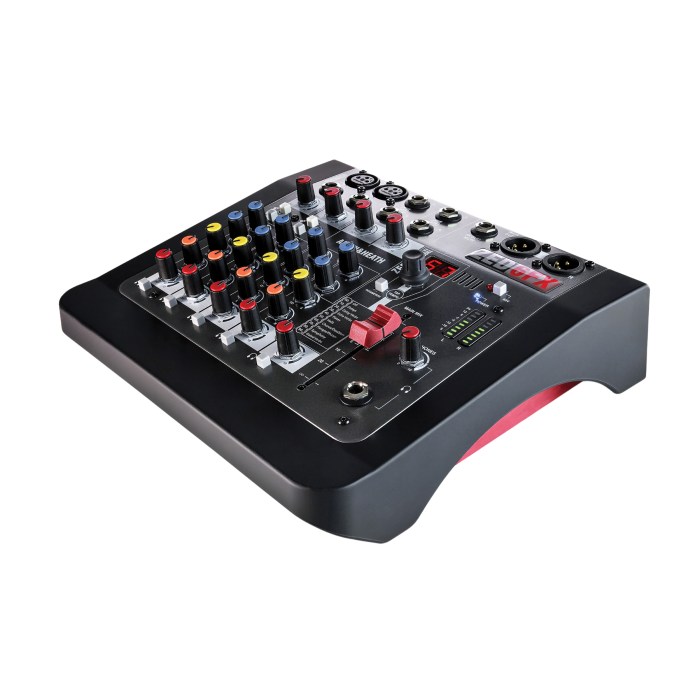

Allen & Heath ZED-6FX Mixer

Compact, rugged, and designed with Allen & Heath’s legendary audio excellence in mind, the ZED-6FX is a powerful portable mixer perfect for singer-songwriters, home studios, small venues, or content creators. It’s built to perform at every stage of the creative journey—whether you're jamming at home, performing live, or recording your next track for YouTube or SoundCloud.

At its core is the boutique GSPre preamp, a design inspired by Allen & Heath’s acclaimed GS-R24 studio console. This preamp delivers ultra-low noise, massive headroom, and that warm, analog depth the brand is known for. It’s also the first mixer in the ZED lineup to offer multi-model effects, including a carefully crafted suite of reverbs and delays developed by A&H’s in-house FX team.

For guitarists, the ZED-6FX is especially accommodating—it features two Guitar DI high-impedance inputs, so you can plug in directly without needing external DI boxes. Combined with a simple yet musical 2-band EQ, onboard FX, and a durable touring-grade chassis, this mixer is a reliable and powerful tool for artists on the go.

Features

• Boutique GSPre preamps for warm, studio-quality analog sound
• Built-in studio-quality FX engine with reverbs, delays, and multi-FX
• 2 Guitar DI inputs—no DI box required
• Compact and ultra-portable design with touring-grade durability
• Smooth 60mm main mix fader
• Easy tonal shaping with 2-band MusiQ EQ
• Flexible monitoring with 8-segment LED metering and headphone output
• Lo-cut filter for removing unwanted low-frequency rumble
• Tap tempo button for syncing time-based effects on the fly

Specifications

General
- Series: Allen & Heath ZED
- Type: Analog Mixer
- Format: Desktop

Inputs
- 2 x Mic/Line Inputs (XLR/TRS combo)
- 2 x Stereo Line Inputs (TRS)
- 2 x High-Impedance Guitar Inputs

Outputs
- Main Mix Out (XLR)
- Headphone Out (1/4")
- Monitor Out

EQ
- 2-band MusiQ EQ (per channel)
- Lo-cut filter on mono channels

Faders & Controls
- 60mm Main Mix fader
- Rotary level controls
- FX level and tap tempo buttons

Effects
- Internal FX engine with 16 effects programs
- Includes delays, reverbs, and combination FX

Monitoring & Metering
- 8 LED signal metering
- Headphone monitoring with level control

Build
- All-metal chassis with individual vertical circuit boards
- Designed to withstand rugged gigging conditions

Dimensions & Weight
- Dimensions: 10.1" x 9.6" x 3.6" (256mm x 244mm x 91mm)
- Weight: Approx. 3.3 lbs (1.5 kg)
