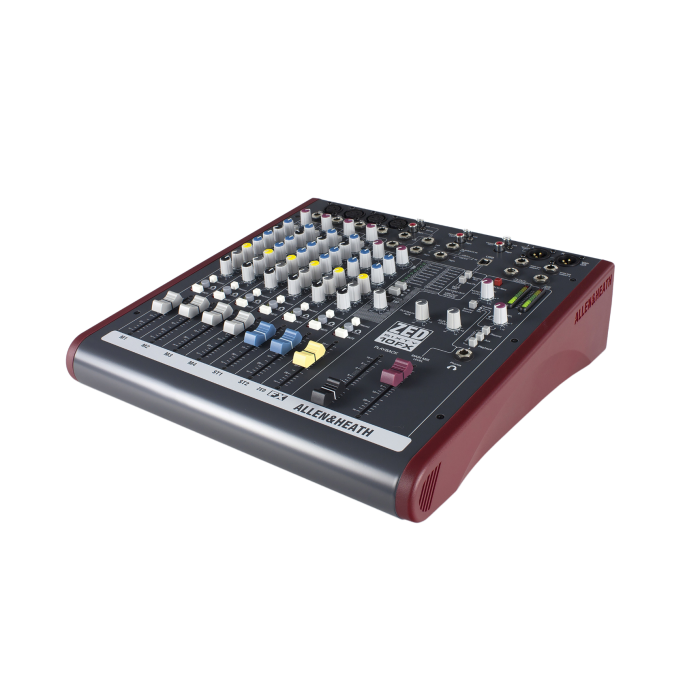

Allen & Heath ZED60-10FX Mixer

Live or in the studio, ZED60-10FX is an ultra-portable mixer for solo artists and small bands. Based on the top selling ZED-10FX, the new ZED60-10FX adds premium quality 60mm faders for that intuitive, tactile mixing experience. This mixer is a guitarists dream. Two of the 4 mono channels have high impedance jack inputs that can take a normal line level or a low level input from a guitar pickup, so guitars can be plugged straight into the mixer without the need for DI boxes. These inputs have been crafted to recreate the sound of a classic tube preamp in a combo or head amp for incredible definition and warmth. Two stereo inputs are provided for MP3/CD players or keyboards. ZED60-10FX comes with configurable USB audio in/out, making it easy to capture a stereo recording at the gig or in the studio. The mixer is equipped with professional XLR main stereo outputs, a flexible monitoring section with headphone and speaker feed outputs, and 16 stunning FX. Most important of all, ZED60-10FX lives up to the audio and build quality standards that have made Allen & Heath one of the most trusted names in professional audio for more than 40 years USB audio flexibility Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! CD quality audio to and from your PC or Mac.

Features

• Adds solid-feeling 60mm faders to the popular ZED-10FX mixer
• 4 mic/line channels, 2 with guitar DIs that re-create the warmth and character of a classic tube preamp
• 3 stereo channels for keyboards and other stereo sources
• 3-band EQ design with MusiQ for quick, easy optimization of your EQ settings
• High-quality built-in digital effects for polishing your sound
• Stereo USB audio connectivity for capturing quick recordings
• Comprehensive monitoring and effective metering
• Rugged Neutrik XLR and 1/4" connectors

Specifications:

- Type: Analog Mixer
- Channels: 10
- Computer Connectivity: USB (2 x 2)
- Faders: 8 x 60mm
- Inputs - Mic Preamps: 4 x XLR, etc.
- Phantom Power: Global
- Inputs - Line: 4 x 1/4" (Ch 1-4), 6 x 1/4" (Ch 5-10 Stereo), 1 x RCA (Ch 5 Stereo)
- Outputs - Main: 2 x XLR
- Outputs - Other: 4 x RCA (record, monitor)
- Aux Sends: 1 x 1/4"
- Headphones: 1 x 1/4"
- USB: 1 x Type B
- Other I/O: 1 x 1/4" (footswitch)
- EQ Bands: 3-band, Sweepable Mid (Ch 1-4), 2-band (Ch 5-10 Stereo)
- Effects: Yes
- Power Source: AC power supply
- Height: 3.7"
- Manufacturer Part Number: AH-ZED60-10FX
