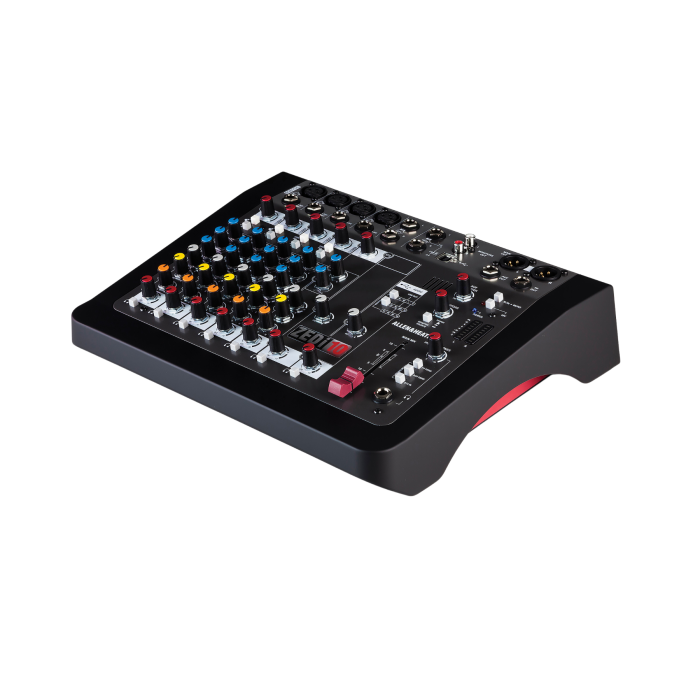

Allen & Heath ZEDi-10 Mixer TGF33

Mint, Perfect, Open Box with Full Allen & Heath Warranty

ZEDi-10 combines the robustness and hands-on control of an analogue mixer with a high quality 4 x 4 USB interface, making it a perfect all-round choice for musicians, recording artists and venues. Whether it’s bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZEDi-10 is a versatile companion for every step of the creative journey.

The studio quality, 24-bit / 96kHz, 4×4 USB interface makes it easy to capture stunning multitrack recordings direct from the mixer to a Mac or PC without the need for any extra equipment. Featuring the new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED boasts exceptionally low noise and massive headroom, with a signature analogue warmth and depth. Guitarists will be pleased to know that two of ZEDi-10’s mono channels feature Guitar DI high impedance inputs, allowing guitars to be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.

Features

• 4x4 USB audio interface (24-bit / 96kHz) for high-resolution multitrack recording and playback
• Boutique GSPre preamps deliver ultra-low noise and rich analog warmth
• 2 high-impedance Guitar DI inputs—no DI box required
• 3-band MusiQ EQ with responsive tone shaping
• Lo-cut filter for removing unwanted low-end rumble
• Stereo TRS line inputs for keyboards, players, or sound sources
• FX out for routing to external processors or effects units
• Aux out for monitor mixes, stage wedges, or in-ear systems
• 60mm smooth travel main mix fader
• Rugged construction with steel-nut secured rotary controls
• 48V phantom power for condenser microphones
• Cubase LE software and Cubasis LE app included

MIXER + USB INTERFACE
ZEDi-10 offers the best of both worlds, incorporating a studio quality 4 in / 4 out, 24-bit/96kHz USB audio interface for hassle-free multitrack recording and playback to/from a Mac or PC, or to an iOS device using the iOS camera kit. The USB output source can be set up in several different ways to match your workflow.

EXCEPTIONAL AUDIO QUALITY
ZEDi-10 features an exceptional new preamp design, created by analogue guru, Mike Griffin and developed from his highly acclaimed GS-R24 studio recording console. Known as GSPre, the preamps deliver exceptionally low noise and massive headroom, and the warmth and depth that Allen & Heath’s analogue range is famous for. For tonal shaping, the precise 3 band MusiQ EQ controls have been carefully calibrated for responsiveness and precision, making it easy to shape and enhance each musical source.

ROAD TOUGH
All ZED mixers are designed and built to Allen & Heath’s legendary touring grade standards to ensure a long life in the toughest environments. All channels are on individual, vertical circuit boards and all rotary controls are secured to the front panel with a steel nut to guard against impact damage.

Specifications

General
- Type: Analog Hybrid Mixer with USB Interface
- Interface: 4-in / 4-out USB (24-bit/96kHz)
- Channels: 4 Mic/Line + 2 Stereo

Inputs
- 4 x Mic/Line Inputs (XLR + TRS combo)
- 2 x Stereo Line Inputs (TRS)
- 2 x Guitar DI High-Impedance Inputs

Outputs
- XLR Main Outputs
- Headphone Out (1/4")
- Aux Out
- FX Send

EQ & Controls
- 3-band MusiQ EQ on mono channels
- Lo-cut filter on mono channels
- 60mm Main Mix fader
- 8-segment LED metering

Build & Power
- Robust all-metal chassis
- Internal universal power supply
- All channels on vertical circuit boards
- Steel-nut secured rotary knobs

Software Included
- Cubase LE (for Mac/PC)
- Cubasis LE (iOS app)

Dimensions & Weight
- Dimensions: 11.3" x 9.6" x 3.8" (287mm x 244mm x 96mm)
- Weight: Approx. 4.4 lbs (2.0 kg)
