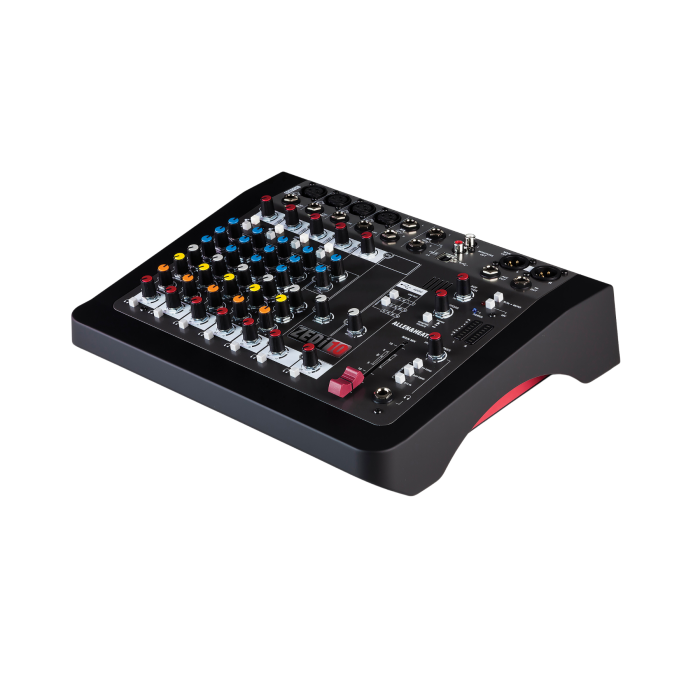

Allen & Heath ZEDi-10 Mixer

Hybrid compact mixer / 4×4 USB interface

ZEDi-10 combines the robustness and hands-on control of an analogue mixer with a high quality 4 x 4 USB interface, making it a perfect all-round choice for musicians, recording artists and venues. Whether it’s bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZEDi-10 is a versatile companion for every step of the creative journey.

The studio quality, 24-bit / 96kHz, 4×4 USB interface makes it easy to capture stunning multitrack recordings direct from the mixer to a Mac or PC without the need for any extra equipment. Featuring the new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED boasts exceptionally low noise and massive headroom, with a signature analogue warmth and depth. Guitarists will be pleased to know that two of ZEDi-10’s mono channels feature Guitar DI high impedance inputs, allowing guitars to be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.

MIXER + USB INTERFACE

ZEDi-10 offers the best of both worlds, incorporating a studio quality 4 in / 4 out, 24-bit/96kHz USB audio interface for hassle-free multitrack recording and playback to/from a Mac or PC, or to an iOS device using the iOS camera kit. The USB output source can be set up in several different ways to match your workflow.

EXCEPTIONAL AUDIO QUALITY

ZEDi-10 features an exceptional new preamp design, created by analogue guru, Mike Griffin and developed from his highly acclaimed GS-R24 studio recording console. Known as GSPre, the preamps deliver exceptionally low noise and massive headroom, and the warmth and depth that Allen & Heath’s analogue range is famous for. For tonal shaping, the precise 3 band MusiQ EQ controls have been carefully calibrated for responsiveness and precision, making it easy to shape and enhance each musical source.

ROAD TOUGH

All ZED mixers are designed and built to Allen & Heath’s legendary touring grade standards to ensure a long life in the toughest environments. All channels are on individual, vertical circuit boards and all rotary controls are secured to the front panel with a steel nut to guard against impact damage.

• 4 in, 4 out USB Audio Interface (24-bit/96kHz)
• Cubase LE Software included
• Cubasis LE App included
• 4 Mic / Line Inputs with separate XLR and TRS jack sockets
• 2 Stereo Inputs with TRS jack sockets
• 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
• Lo-cut filter for cleaning up unwanted low frequency noise
• 3 band EQ for easy creative and corrective tonal shaping
• FX out for connecting external effects units
• Aux out for connecting a monitor speaker or in-ear / headphone monitoring
• 60mm smooth travel fader on main mix
• XLR main outputs
• Flexible signal monitoring
• 8 LED signal metering
• 48V Phantom Power for condenser mics
• Robust internal power supply
