American DJ AV3039 3.9mm Pixel Pitch Flat Panel Display with Wired Digital Communication Network

$1,139.99

In stock

SKU

ADJ-AV3039

Brand New. Not available for curbside pickup. Online orders only.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

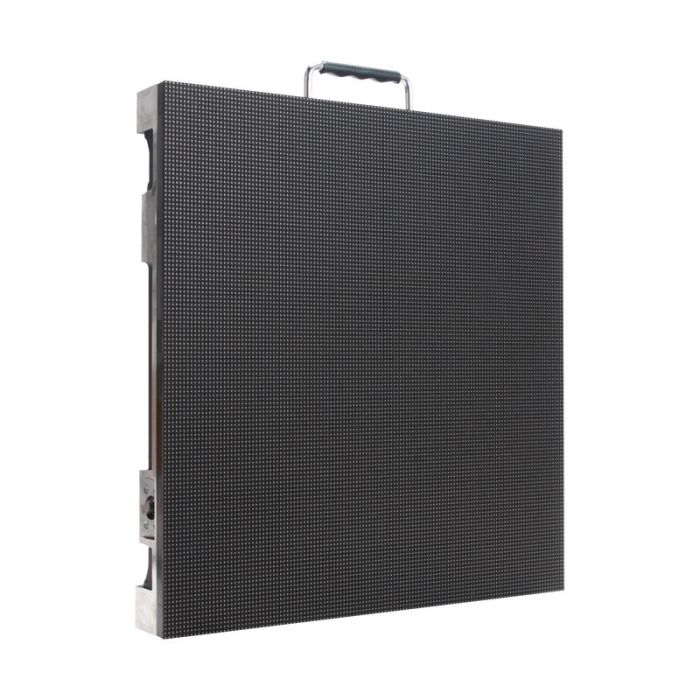

The AV3 is a high resolution, flexible video panel from ADJ. Each panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED. The panel can curve in convex or concave up to 10°. The brightness is 1000NITS. There are 2 LED modules per panel. This allows for easy serviceability. The AV3 connections include powerCon In/Out and Ethercon In/Out. This panel also features a Novastar receiving card.

SPECIFICATIONS:

• Pixel Pitch: 3.91mm (0.25”)

• LED Configuration: 3-in-1 SMD2121 LED

• Pixel Density: 128x128; 65536 per square meter

• Size :19.75” x 19.75” x 4” / 500 x 500 x 100mm

• Module Quantity: 2

• Weight: 20 lbs. / 9kg.

MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm

OPTICAL RATINGS:

• Brightness: 1000 NITS

• View Angle: Horizontal 120°/Vertical 120° @ 13 ft. (4m)

• Gray Scale / Display Color: 14-bit

• Brightness Adjustment: 0~100% 100 Levels

• Processing: 14-bit

POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz

• Max. Power Consumption: 170W/per panel

• Ave. Power Consumption: 70W/per panel

• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-60Hz

• Scan Mode: 1/16

• Refresh Rate: 1920Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <100m or Fiber Optic>120m

• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

• Brightness Correction: Pixel, Module, Cabinet
• With Wired Digital Communication Network

ENVIRONMENTAL:

• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)

• Operating Life / MTBF: 50,000 Hours / 5,000 Hours

• Protection Level: IP20 (Front and Back)

• Out of Control Rate: <0.02%

• Listings: ETL, CE, FCC Class A

OPTIONAL ACCESSORIES:

AV3FC (AV3095): Flight Case - fits 8 AV3X Video Walls

AV3RB1 (AV3070): Rigging Bar - Connect up to 15 AV3X Video Panels

AV3RSB (AV3111): Rear Support Bracket

Novastar VX4S: Video Processor

Novastar MCTRL-300: Video Processor

Media Master Express 4: Video Software

GrandVJ 2.0: Video Software

CABLES:

Cabinet to Cabinet Data Link Cables

MCTRL-300 Processor to Cabinet

VX4S Processor to Cabinet

NOVA PRO HD Processor to Cabinet

Locking Power Link Cables

Locking Main Power Cables

ETL Approved
