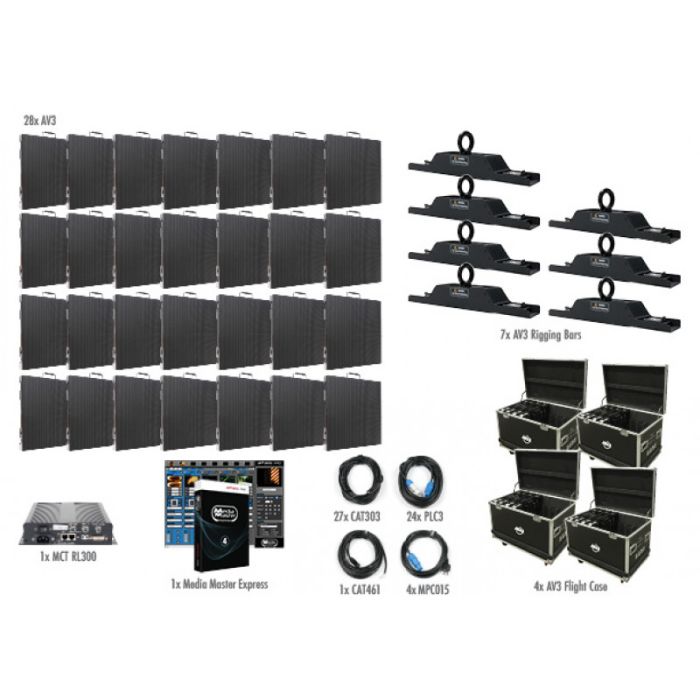

American DJ AV37x4 28 x AV3 7 x AV3 Rigging Bars 27 x CAT303

Specifications

• Pixel Pitch: 3.91mm (0.25”)

• LED Configuration: 3-in-1 SMD2121 LED

• Pixel Density: 128x128; 65536 per square meter

• Size :19.75” x 19.75” x 4” / 500 x 500 x 100mm

• Outer System Dimensions: 11.48' x 6.56'

• Module Quantity: 2

• Weight: 20 lbs. / 9kg.

MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm

OPITCAL RATINGS:

• Brightness: 1000 NITS

• View Angle: Horizontal 120°/Vertical 120° @ 13 ft. (4m)

• Gray Scale / Display Color: 14-bit

• Brightness Adjustment: 0~100% 100 Levels

• Processing: 14-bit

POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz

• Max. Power Consumption: 170W/per panel

• Ave. Power Consumption: 70W/per panel

• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-60Hz

• Scan Mode: 1/16

• Refresh Rate: 1920Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <100m or Fiber Optic>120m

• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

• Brightness Correction: Pixel, Module, Cabinet

ENVIRONMENTAL:

• Operating Temp / Humidity:  Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)

• Operating Life / MTBF: 50,000 Hours / 5,000 Hours

• Protection Level: IP20 (Front and Back)

• Out of Control Rate: <0.02%

• Listings:  ETL, CE, FCC Class A

CABLES:

Cabinet to Cabinet Data Link Cables (NEUTRIK Ethercon Connectors)

MCTRL-300 Processor to Cabinet (NEUTRIK Ethercon Connectors)

VX4S Processor to Cabinet (NEUTRIK Ethercon Connectors)

NOVA PRO HD Processor to Cabinet (NEUTRIK Ethercon Connectors)

NEUTRIK powerCON Link Cables

NEUTRIK powerCON Main Power Cables

ETL Approved
