American DJ AV4127 AV4IP Flat Panel Display 4.81mm Pixel with Wired Digital Communication Network

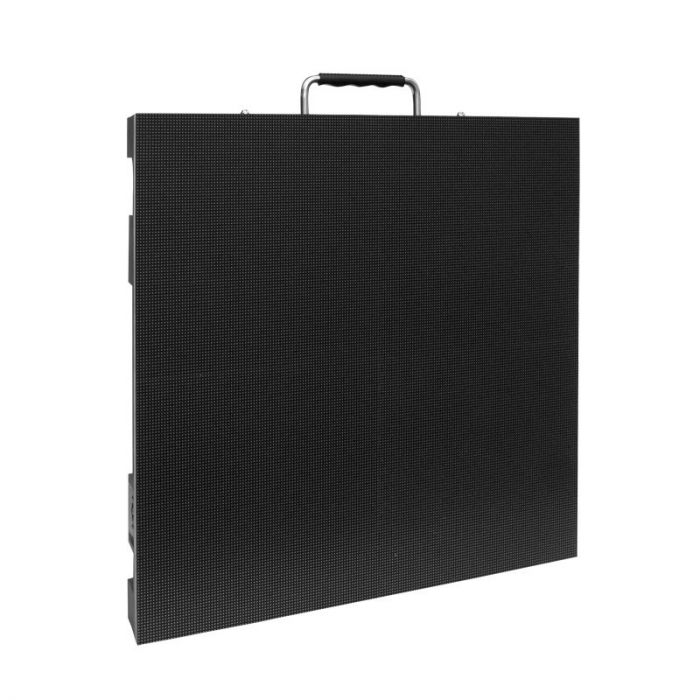

The AV4IP is a high resolution video panel from ADJ. Each panel has a pixel pitch of 4.81mm with a configuration of a 3-in-1 RGB SMD1921 LED's. The panel is IP65 on the front and IP54 on the back, which allows for temporary outdoor use. The brightness is 4000 NITS. There are 2 LED modules per panel. This allows for easy serviceability. The AV4IP includes IP65 locking power in/out connections and locking RJ45 ethernet in/out connections. This panel also features a Novastar receiving card.
• 4.81mm pixel pitch high resolution video panel
• IP65 Front, IP54 Back (Temporary outdoor use)
• SMD1921 3-IN-1 RGB LEDs
• NITS: 4,000
• Pixel Count: 104x104
• Quick release power supply / receiving card module
• IP65 Locking Power In/Out Connections
• Locking RJ45 Ethernet In/Out Connections
• Novastar receiving card
• Dimensions: 19.7" x 19.7" (500x500mm) panel size
SPECIFICATIONS:
• Pixel Pitch: 4.81mm (0.19”)
• LED Configuration: 3-in-1 SMD1921 LED
• Pixel Density: 104x104; 43264 (dot/m2)
• Panel Size :19.75” x 19.75” x 4” / 500 x 500 x 100mm
• Module Quantity: 2
• Module Size: 250 x 500mm
• Module Resolution: 52 x 104 pixels
• Panel Weight: 20 lbs. / 9kg.
MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:
• Brightness: 4000 NITS
• View Angle: Horizontal 140°/Vertical 140°
• Gray Scaler: 14-bit
• Brightness Adjustment: 0~100% 100 Levels
• Processing: 14-bit
POWER SUPPLY:
• Input Voltage: 100~240V 50-60Hz
• Max. Power Consumption: 180W/per panel
• Ave. Power Consumption: 60W/per panel
• Connections Power/Data: Power = True1 powerCON In/Out; Data = etherCON In/Out
CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/16
• Refresh Rate: 1920Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <100m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
• With Wired Digital Communication Network
ENVIRONMENTAL:
• Operating Temp / : Fahrenheit: -14° + 122° / Celsius: -10° + 50°
• Humidity: 10-90% (No Condensation)
• Operating Life / MTBF: @ 50,000 Hours
• Protection Level: IP65 Front, IP54 Back (Temporary outdoor use)
• Out of Control Rate: <0.02%
• Listings: cETL, CE, FCC Class A
OPTIONAL ACCESSORIES:
AV3FC (AV3095): Flight Case - fits 8 AV4IP
AV3RB1 (AV3070): Rigging Bar - Holds up to 15 AV4IP vertically
AV3FWA (AV3111): Rear Support Bracket
Novastar VX4S: Video Processor
Novastar MCTRL-300: Video Processor
Novastar NOVA PRO HD: Video Processor
Media Master Express 4: Video Software
GrandVJ 2.0: Video Software
MAIN POWER CABLES, IP65 (IP65 Locking Power to Edison):
10ft. / 3.04M (TRU200)
15ft. / 4.57M (TRU215)
25ft. / 7.62M (TRU230)
50ft. / 15.24M (TRU254)
100ft. / 30.48M (TRU271)
PANEL TO PANEL POWER LINK CABLES, (IP65 Locking Power Out Connector to IP65 Locking Power In Connector):
1.64ft. / .50M (TRU064)
3.28ft. / 1M (TRU113)
4.92ft. / 1.5M (TRU126)
9.84ft. / 3M (TRU139)
13.12ft. / 4M (TRU152)
22.96ft. / 7M (TRU165)
49.21ft. / 15M (TRU178)
98.42ft. / 30M (TRU191)
MAIN DATA CABLES, Bare RJ45 Ethernet to Locking RJ45 Ethernet Connector
10ft. / 3.04M (CAT271)
25ft. / 7.62M (CAT729)
50ft. / 15.24M (CAT743)
100ft. / 30.48M (CAT757)
PANEL TO PANEL DATA LINK CABLES, (Locking RJ45 Ethernet Connector to Locking RJ45 Ethernet Connector):
3ft. / .91M (CAT303)
5ft. / 1.52M (CAT305)
10ft. / 3.04M (CAT310)
15ft. / 4.87M (CAT315)
25ft. / 7.62M (CAT325)
50ft. / 15.24M (CAT350)
