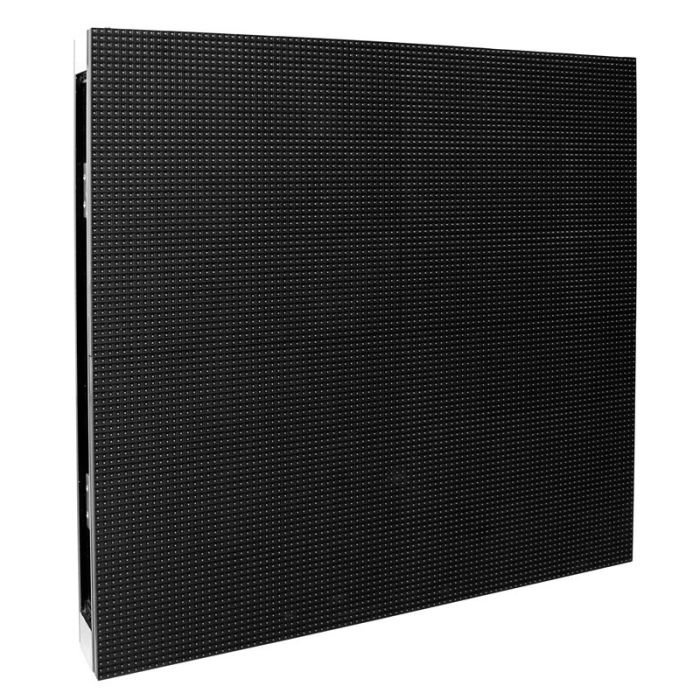

American DJ AV6222 AV6X 6mm Pixel Pitch Flat Panel Display with Wired Digital Communication Network

The AV6 is an affordable 6mm LED Video panel designed for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship. cETL Approved.

Specifications

• Pixel Pitch: 6.0mm (0.25”)

• LED Configuration: 3-in-1 SMD2121 LED

• Pixel Density: 96x96; 27,777 per square meter
• For indoor use only

• Size: 576 x 576 x 75mm / 22.75” x 22.75” x 3”

• Module Quantity: 4

• Weight: 23lbs. / 8.15Kg

MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm

OPITCAL RATINGS:

• Brightness: 1200 NITS

• View Angle: Horizontal 140°/Vertical 140°

• Distance: 20ft (6m)

• Gray Scale / Display Color: 14Bit

• Brightness Adjustment: 0~100% 100 Levels

• Processing: 14Bit

POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz

• Max. Power Consumption: 300W/per panel

• Ave. Power Consumption: 120W/per panel

• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-60Hz

• Scan Mode: 1/12 Duty

• Refresh Rate: 1200Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <100m or Fiber Optic>120m

• Support VGA Mode: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668

• Brightness Correction: Pixel, Module, Cabinet
• With Wired Digital Communication Network

ENVIRONMENTAL:

• Operating Temp / Humidity:  Fahrenheit: -4° + 104° / Celsius: -20° + 40°/

   10-90% (No Condensation)

• Operating Life / MTBF: 100,000 Hours / 5,000 Hours

• Protection Level: IP20 (Front and Back)

• Out of Control Rate: <0.02%

HEAT EMISSIONS:

• 100% Brightness = 172W = 587 BTU/h

• 75% Brightness = 133W = 454 BTU/h
• 50% Brightness = 96W = 327 BTU/h
• 25% Brightness = 57W = 195 BTU/h

LISTINGS:
cETL, CE, FCC Class A
