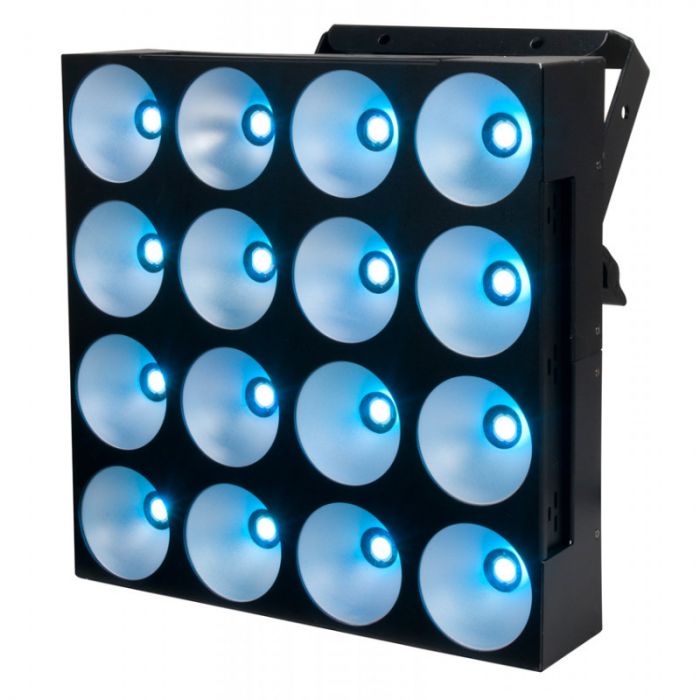

American DJ DOT294 DOTZ Matrix Dotz COB LED Series Fixtures with Wired Digital Communication Network

Having cemented themselves as a mainstay of live and performance lighting, ADJ introduces their Dotz Matrix light fixture to up the ante on your visual arrangement! A 4x4 grid of 16 total 30-watt tri-color LEDs deliver a whopping 430 watts of light, utilizing Chip On Board (COB) technology to achieve seamless, smooth color-mixing and 0-100% electronic dimming. Four operational modes include auto, sound activated, manual RGB dimming, and DMX-512, as well as being RDM (Remote Device Management) compliant, giving you plenty of access to a bevy of wash, blinder, pulse, and strobe FX. If the built-in programs aren’t your thing, then you’ll find plenty of creative opportunities to utilize the bevy of pixel mapping options, variable dimming curves, and pixel-orientation changes. With 60-degree beam angles, these rich palettes are great for any live installation, ensuring flicker-free output with the possibility of daisy-chaining up to nine units on a single 20-amp circuit. Lighting technicians can’t get enough of the versatility these lights allow, and the onboard 4-button DMX LCD display that accompanies the 3- and 5-pin XLR connectors make for painless integration into your system!

Features

• COB technology ensures smooth color mixing alongside 0-100% electronic dimming
• 3-, 6-, 7-, 48, and 53-channel DMX modes allow for plenty of variety
• Wash, blinder, pulse, and strobe FX are accompanied by a host of built-in programs to deliver rich, high-quality RGB light right out of the box
• Pixel mapping capabilities include four Pixel Flip options to modify pixel orientation for nuanced, creative use
• 4 operational modes (auto, sound activated, manual RGB dimming, and DMX-512) and 5 variable dimming curves (standard, stage, TV, architectural, and theater), boast great versatility
• 3- and 5-pin XLR chassis mount connectors guarantee straightforward DMX-linking
• Power AC I/O allows for daisy-chaining multiple units for expanded visual feasts (5 units @ 120V and 9 units @ 230V on 1 x 20-amp circuit)
• A 3.6kHz refresh rate means smooth, flicker-free operation
• Fan cooling make sure your lights are in it for the long haul
• Single yoke mounting fixture guarantees straightforward, secure installation
• RDM compliance and Wired Digital Communication Network compatibility provide countless modular options for managing and running lights
• 1630 LUX @2M; 730 LUX @4M (60° beam)

Specifications:

• 4 x 4 COB LED high output Wash/Blinder Matrix panel
• COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
• Use as Wash/Blinder or Pixel Mapped matrix for a stunning visual effect
• Great for Stage Lighting, Bands or Night Clubs
• 5 DMX channel modes: 3, 6, 7, 48 & 53 channel
• Individual Pixel controllable in 48 & 53 channel DMX modes
• 4x Pixel Flip options changes pixel orientation
• 4x Operational modes: Auto, Sound Active, Manual RGB Dimmer, Static Color, and DMX-512
• RDM Compliant (Remote Device Management)
• Built-In preset colors and programs
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• 60-degree beam angle
• 3 & 5-pin XLR chassis mount connectors for DMX linking
• With Wired Digital Communication Network
• PowerCon AC IN/OUT to daisy chain power (up to 5 Dotz Matrix's @ 120V and 9 Dotz Matrix's @ 230V on one 20 amp circuit )
• Power Draw: 430W total (All LED's @ Full)
• 4-button DMX LCD display
• Single yoke allows fixture to be mounted
• Fan Cooled
• Light Source: 16x 30-Watt COB TRI LEDs (RGB: 3 in 1)
• 2630 LUX @2M; 730 LUX @4M (60-degree beam)
• Refresh Rate: 3.6KHz
• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
• Dimensions (LxWxH): 13.75” x 6.75” x 14.75”/ 345 x 170 x 370mm
• Weight: 18 lbs. / 7.8 kgs.
• ETL Approved
