American DJ FS3000 SYS II

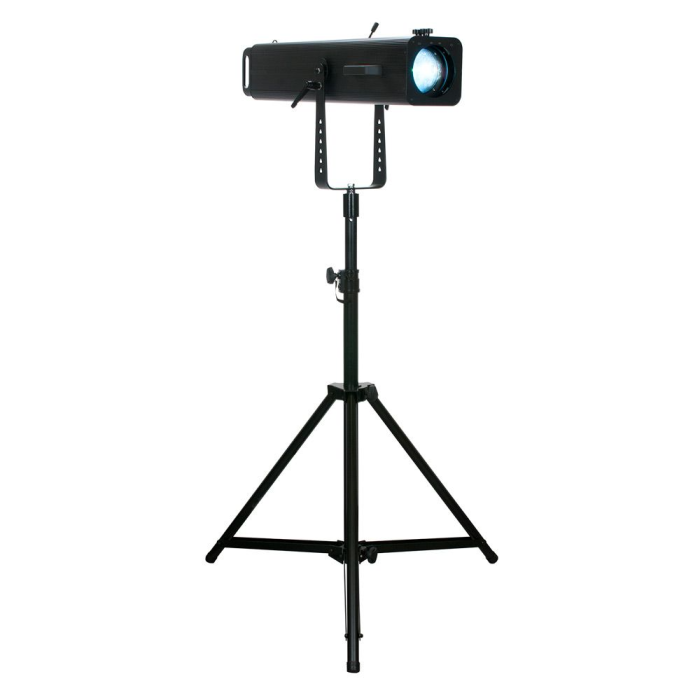

The FS3000 Sys includes ADJ’s state-of-the-art FS3000LED Followspot fixtures along with the PRO FS Stand and the FS Pan Glide.

The FS3000LED is a powerful and feature-packed follow spot that is joining ADJ’s range of theatrical stage lighting fixtures. Powered by a potent 300W white COB LED engine (6000K) with a CRI of 95, the unit generates a powerful spotlight ideal for tracking performers at live productions, theatre stages and churches. It features digital dimming, an adjustable beam angle of 12 ~ 32-degrees, framing shutters and a GOBO slot. A removable 4-slot boomerang is included where color gels or frost filters may be added. The fixture supports both DMX and IR remote control, with an intuitive touchscreen interface on the rear panel facilitating DMX addressing and mode selection. In addition, a convenient rotary brightness control on the back panel makes for easy manual control, while two large rear handles allow for comfortable manual positioning. The FS3000LED has both 5-pin and 3-pin DMX In/Out sockets as well as locking power In/Out to daisy chain power from one fixture to another.

The Pro FS Stand is a black lighting tripod stand for use with most follow spots and ellipsoidals. Compatible with ADJ’s FS Pan Glide. Made of aluminum and steel construction and is very stable. Sets up quickly and easily with tightening knobs. Collapses down and may be conveniently stored away. The height may be adjusted manually from 3.3 feet to 4.55 feet. The maximum weight capacity is 110 lbs.

The FS Pan Glide assembly attaches to the Accu Stand Pro FS Stand (FSS300) follow spot stand, or any pole that measures 1.5" in diameter, and makes your follow spot or Ellipsoidal easy to pan back and forth so you don't get any jittering or shaking on stage. The Pan Glide assembly is a must for any professional stage application where pan smoothness is imperative.

FS3000 LED Features

• Beam angle: 12~32-degree manually adjustable
• Color touch screen display with selectable settings
• Manual Dimming Potentiometer
• Manual Zoom
• Manual Focus
• Manual Iris
• Fan cooling
• Hanging Bracket
• Compatible with ADJ UC IR wireless remote

FS3000 LED Specifications:

Light Source:
- 300W white C.O.B. (Chip On Board) LED
- Color temperature: 6000K
- CRI: 95
- Light Output (12-degree): 6558 LUX @ 5M; 1639 LUX @ 10M; 410 LUX @ 20M
- Total Lumen Output: 8500 lm

GOBO:
- GOBO holder with metal break apart pattern GOBO
- Gobo Dimensions: Outer 74.5mm; Inner: 65mm; Thickness: 2mm

Electrical:
- Voltage:AC100V-240V/50Hz-60Hz
- Maximum Power: 340W

Connections:
- 3-pin and 5-pin DMX data linking
- PowerLock In/Out to daisy chain power (3 fixtures max at 110V, 5 fixtures max at 240V)
- USB Input for firmware update

Dimensions & Weight:
- Dimensions (LxWxH): 33.5” x 12.25” x 7” / 850x310x180mm
- Weight: 26.5” / 12kg.

What's Included:
- Locking power cord
- GOBO holder with metal break apart GOBO
- Includes 4-slot Boomerang (Replacement Part # Z-400142) - color gels and frost filters are sold separately

Pro FS Stand Features

• Black Follow Spot Stand
• Aluminum and Steel construction
• Collapsable Tripod type
• Height is manually adjustable between 3.3' and 4.55'
• Sets up quickly and easily
• Very stable
• For use with most Follow Spots (See technical data below)

Pro FS Stand Specifications:
- Minimum Working Height: 3.3' (1006mm)
- Maximum Working Height: 4.55' (1387mm)
- Minimum Working Height, including FS Pan Glide: 3.37' (1030mm)
- Maximum Working Height, including FS Pan Glide: 4.62' (1410mm)
- Net Weight: 12lbs.
- Center pipe dimension: 1.38" (35mm)
- Maximum Weight Capacity: 110lbs. (50kg)

FS Pan Glide Specifications:
- Top Bolt Thread size: M14
- Bottom Pole Opening Width: 1.38" (35mm)
