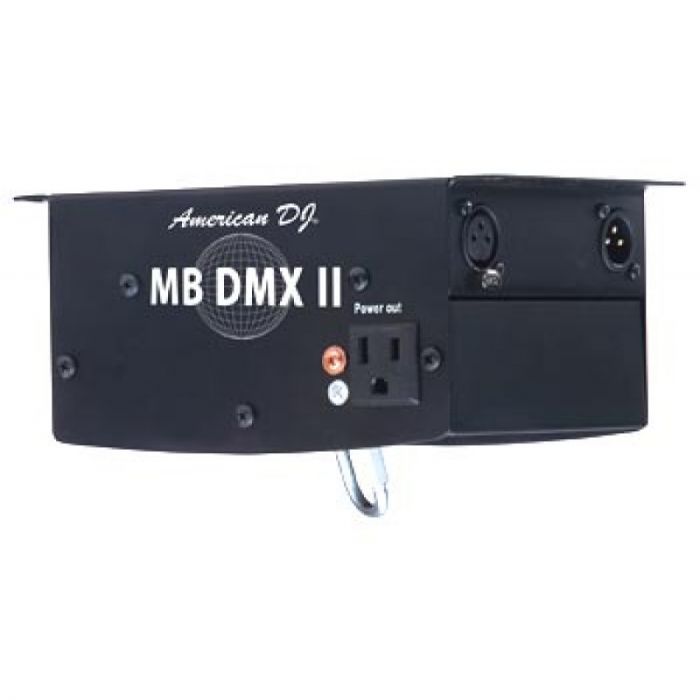

American DJ MBDMXII DMX Mirror Ball Motor
$169.99
In stock
SKU
ADJ-MBDMXII
Brand New. Not available for curbside pickup. Online orders only.
American DJ's MB DMX II Mirror Ball Motor is a versatile platform made for use with up 20" mirror balls. It features three operating modes that allow it to be used standalone, in a master or slave configuration with multiple units daisy-chained, or controlled from a DMX-512 controller. Its micro-stepping motors provide smooth ball rotation with variable-speed capabilities. Two DMX channels enable control of the motor speed and direction, as well as turn pinspots on and off. It also features two 3-prong outlets to power pinspots and a built-in 3-amp circuit breaker that protects them from damage without the need to replace fuses. A 1/4" socket for an optional Mini/C controller gives the user on/off control.
Two DMX Channels
- Channel 1: Adjustable motor speed and direction control of mirror ball
- Channel 2: Turns pinspots on/off
Two 3-Prong Outlets
- Use to power pinspots
- DMX-512 protocol controlled for complete control
- 3-amp circuit breaker protects accessories without needing to change fuses
Three Operation Modes
- DMX-512 protocol control: Control the motor using an optional DMX controller
- Standalone: Customize preset performance using onboard dipswitches
- Master/slave control: Up to four MB DMX units can be daisy-chained for synchronized motor rotation and universal speed
Motors
- Micro-stepping motors provide smooth rotation
- Variable head rotation speed
