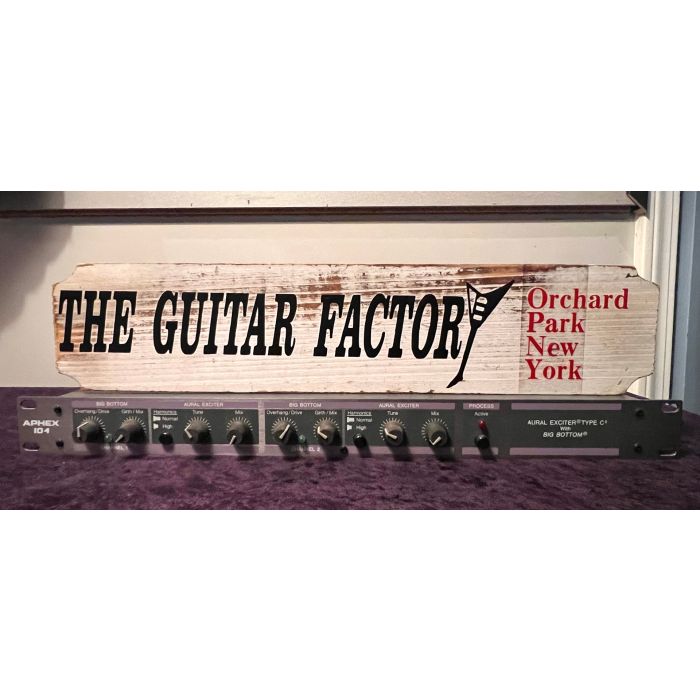

Aphex Aural Exciter Type C2 (Big Bottom) Model 104 SN1209

Overall Great Condition. Tested and Working! The Aphex Aural Exciter Type C2 (Model 104) is a 1U rackmount processor featuring independent Aural Exciter (adds harmonics for clarity/brightness) and Big Bottom (enhances low-end resonance/articulation) sections, offering two channels, a wide frequency response (10Hz-38kHz), low distortion (<0.0003% THD), and high headroom, powered by an external 24V supply, designed to add presence, depth, and punch without significant peak output changes. Key Specifications & Features Channels: 2 (Stereo operation possible) Effects: Aural Exciter: Adds brightness, presence, detail. Big Bottom: Deeper, tighter, more resonant bass. Frequency Response: 10Hz - 38kHz (±0.5dB). Audio Performance: THD (Total Harmonic Distortion): <0.0003% (10Hz-22kHz at max output). IMD (Intermodulation Distortion): <0.0007% (10Hz-22kHz at max output). Hum & Noise: -93 dBu (unweighted, 22Hz-22kHz). Crosstalk: -79 dB (10Hz-22kHz). Controls: Independent Big Bottom & Exciter sections, Bypass. Power: External 24V DC transformer (included). Dimensions: 19" rackmount, 1U height, ~5.75" depth. Weight: Approx. 3.5 lbs (unit). Applications: Recording, mixing, sound reinforcement, nightclubs, musicians.
