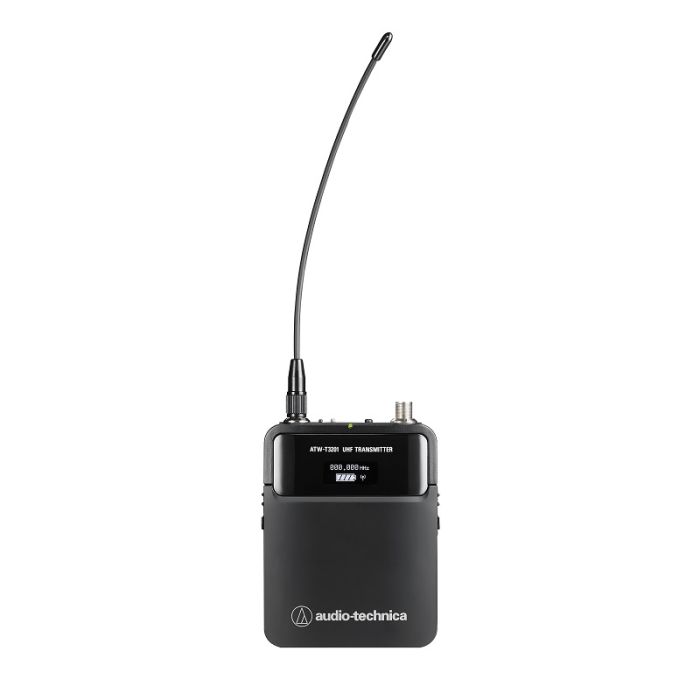

Audio-Technica 3000 Series ATW-T3201EE1 4th Generation Bodypack Transmitter
The Audio-Technica ATW-T3201 is a 3000 Series (4th generation) bodypack transmitter compatible with ATW-R3210 and ATW-R3210 Networked receivers. It features a 4-pin cH-style screw-down connector and an adjustable input level to accommodate the cH-style lavalier or headset microphone of your choice, or an adapter cable for guitar and bass. With a rugged metal housing and rounded corners, the transmitter is comfortable to wear and provides natural audio to presenters, clergy, lecturers, and performers working in business and educational settings, houses-of-worship, theaters, or on musical stages.
The ATW-T3201 operates on a wide 60 MHz UHF tuning range with 2400 selectable frequencies available. It provides up to 9.5 hours of operation on two AA NiMH rechargeable batteries (available separately), with a selectable 10/30mW RF power output for overcoming interference in difficult RF environments. The transmission range is up to 330'.
Specs
| Wireless Transmission | Analog UHF |
| RF Frequency Band | EE1: 530 to 589.975 MHz |
| RF Bandwidth | 60 MHz |
| Frequency Step Size | 25 kHz |
| Max Operating Range | 328.1' / 100 m |
| Encryption | None |
| Modulation | FM |
| Form Factor | Bodypack |
| RF Output Power | 10 / 30 mW (Switchable, at 50 Ohms) |
| Audio I/O | 1 x Hirose cH-Style 4-Pin Male Input (Lockable) |
| Plug-In Power | 5 V |
| Muting | Mute Switch |
| Gain Range | -10 to +20 dB (2 dB Steps) |
| Signal Processing | High-Pass Filter: 125 Hz, 12 dB/Octave Slope |
| Sync Method | IR |
| Antenna | 1 x Flexible Whip, Detachable (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Not Included) 2 x Rechargeable (Not Included) |
| Approx. Battery Life | Low: 9 Hours (Alkaline) 9.5 Hours (NiMH Rechargeable) High: 8 Hours (Alkaline) 9 Hours (NiMH Rechargeable) |
| Display & Indicators | 1 x Backlit OLED (Battery Status, High-Pass Filter, Mute, RF Output Power) |
| Housing | Metal |
| Dimensions | 2.5 x 0.9 x 3.2" / 64 x 23 x 82 mm |
| Weight | 3.6 oz / 102 g (without Batteries) |
| Package Weight | 0.42 lb |
| Box Dimensions (LxWxH) | 10.5 x 3.4 x 2" |
