Audio Technica ATW-2192XBITH Wireless Headworn Microphone System

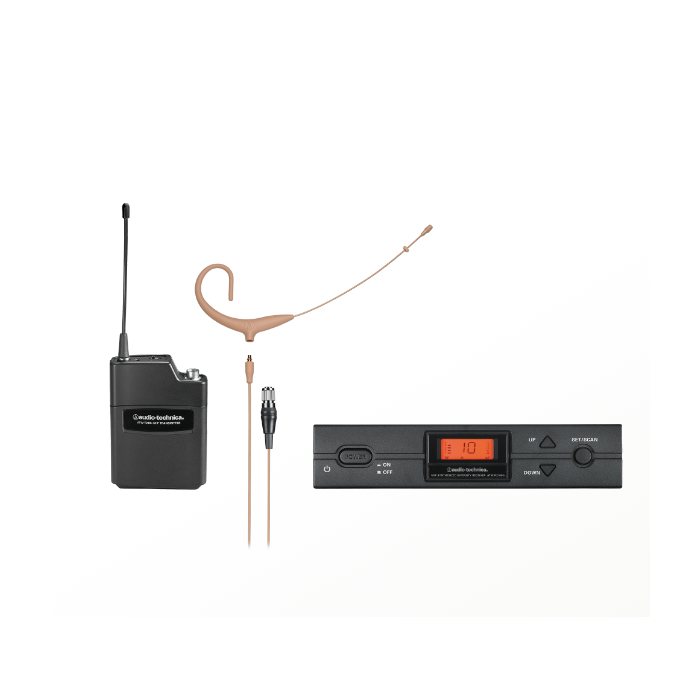

ATW-R2100b receiver and ATW-T210a body-pack transmitter with BP892xcW-TH MicroSet omnidirectional condenser headworn microphone (beige). Includes element covers, windscreens, clothing clip, and dual-ear adapter kit.
SPECS
Overall System
Operating Frequencies - UHF Band D: 656.125 to 678.500 MHz DISCONTINUED IN NORTH AMERICA Band I : 487.125 to 506.500 MHz
Modulation Mode - FM
Maximum Deviation - ±40 kHz
Frequency Response - 100 Hz to 15 kHz (+1 dB, -3 dB)
Operating Range 100 m (300'), typical
Total Harmonic Distortion - < 1% (at 1 kHz, ±20 kHz deviation)
Operating Temperature Range - 5º C to 45º C, 41º F to 113º F
Number Of Channels - 10 total
Notes - Third-generation 2000 Series (“b” version) components: ATW-R2100b receiver ATW-T210b body-pack transmitter ATW-T220b cardioid dynamic microphone/transmitter Click here for “b” version 2000 Series owner’s manual. Second-generation 2000 Series (“a” version) components: ATW-R2100a receiver ATW-T210a body-pack transmitter ATW-T220a cardioid dynamic microphone/transmitter Click here for “a” version 2000 Series owner’s manual. First-generation 2000 Series (original) components: ATW-R2100 receiver ATW-T210 body-pack transmitter ATW-T220 cardioid dynamic microphone/transmitter Click here for original 2000 Series owner’s manual. CONSUMER ALERT Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
Handheld Transmitter
RF Power Output - High: 30 mW; Low: 10 mW (switchable), at 50 ohms
Spurious Emissions - Following federal and national regulations
Microphone Element - Dynamic cardioid
Battery Type - Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included) Recharging power for NiMH batteries (with ATW-CHG2) U.S./Canada/Latin America: 3.2 V DC, 230 mA x2 Other world areas: 3.2 V DC, 320 mA x2
Battery Life - High: 7 hours (alkaline) Low: 9 hours (alkaline) Depending on battery type and use pattern.
Dimensions - 232.0 mm (9.13") long, 48.0 mm (1.89") diameter
Net Weight - 252 g (8.9 oz), without batteries
Accessories Included - AT8456a Quiet-Flex™ stand clamp
Body Pack
RF Power Output High - 30 mW, Low: 10 mW (switchable), at 50 ohms
Battery Life - High: 7 hours (alkaline) Low: 9 hours (alkaline) Depending on battery type and use pattern.
Battery Type - Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included) Recharging power for NiMH batteries (with ATW-CHG2) U.S./Canada/Latin America: 3.2 V DC, 230 mA x2 Other world areas: 3.2 V DC, 320 mA x2
Dimensions - 66.0 mm (2.60") W x 22.5 mm (0.89") D x 92.3 mm (3.63") H
Input Connections - Four-pin Locking Connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +9V
Net Weight - 81 g (2.9 oz), without batteries
Spurious Emissions - Following federal and national regulations
Receiver
Receiving System - True diversity
Image Rejection - 60 dB nominal, 55 dB minimum
RF Sensitivity - 20 dBuV at 60 dB S/N ratio
(50 ohms termination)
Antenna Input - BNC-type, 50 ohms
Bias - voltage 12V DC, 60 mA, each
Power Requirements - 12-18V DC, 500 mA
Dimensions - 210.0 mm (8.27") W x 162.2 mm (6.39") D x 44.0 mm (1.73") H Not including BNC connectors or feet.
Weight - 1.0 kg (35.3 oz), without accessories
Accessories Included - Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters ADDITIONAL RECEIVER SPECS Maximum Output Level: XLR, balanced: +9 dBV ¼" (6.3 mm), unbalanced: +4 dBV Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB
