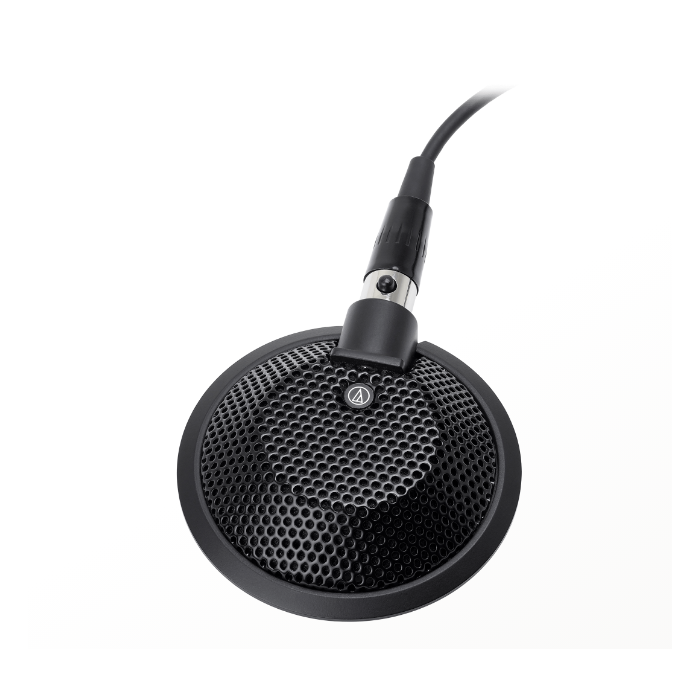

Audio Technica U841R Omnidirectional Condenser Boundry Microphone
The U841R delivers exceptionally intelligible audio reproduction in a super-compact, low-profile design. Equipped with UniGuard® RFI-shielding technology, this omnidirectional condenser boundary microphone is designed for clear, highly intelligible sound quality in surface-mount applications. The phantom-powered U841R is equipped with self-contained electronics, eliminating the need for an external power module.
- Designed for surface-mount applications where highly intelligible sound quality is required
- Small-diameter omnidirectional capsule near boundary eliminates phase distortion and delivers clear, high-output performance
- Superior off-axis rejection for maximum gain before feedback
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Self-contained electronics eliminate need for external power module
- Heavy die-cast case and non-slip silicon foam bottom pads minimize coupling of surface vibration to the microphone
- Low-profile design with low-reflectance finish for minimum visibility
Microphones
Element - Fixed-charge back plate, permanently polarized condenser
Polar Pattern - Omnidirectional in hemisphere above mounting surface
Frequency Response - 40-20,000 Hz
Open Circuit Sensitivity - –35 dB (17.7 mV) re 1V at 1 Pa
Maximum Input Sound Level - 130 dB, 1 kHz at 1% T.H.D.
Dynamic Range - 105 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio - 69 dB, 1 kHz at 1 Pa
Phantom Power Requirements - 11-52V DC, 2 mA typical
Weight (Microphone) - 84 g (3.0 oz)
Weight - 84 g
Cable - 7.6 m (25.0') long, 3.2 mm (0.13") diameter, 2-conductor, shielded cable with TA3F-type and XLRM-type connectors
Dimensions - 65.0 mm (2.56") diameter, 15.1 mm (0.59") height
Dimensions (Microphone) - 65.0 mm (2.56") diameter, 15.1 mm (0.59") maximum height
Output Connector - TB3M-type
Accessories Included - Soft protective pouch
