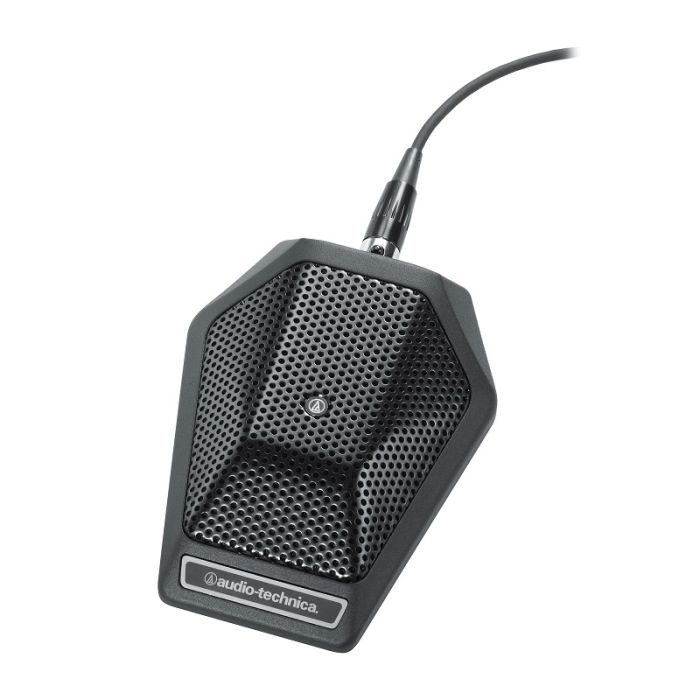

Audio-Technica U851RO Omnidirectional Condenser Boundary Microphone
$239.00
In stock
SKU
AUD-U851RO
Brand New. Not available for curbside pickup. Online orders only.
Featuring breakthrough audio and mechanical design innovations, the phantom-powered U851RO offers outstanding speech intelligibility and transparent sound quality for surface-mount applications. The omnidirectional microphone is equipped with a PivotPoint rotating output connector, UniSteep filter and UniGuard RFI-shielding technology. It accepts interchangeable condenser elements in cardioid and hypercardioid polar patterns. With a heavy die-cast case and silicon foam bottom pads to minimize coupling of surface vibration to the microphone, the U851RO is equipped with self-contained electronics, eliminating the need for an external power module.
FEATURES
- Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
- Low-profile element provides uniform omnidirectional polar pattern with 360º acceptance angle
- PivotPoint rotating output connector allows cable to exit from either the rear or the bottom of the microphone
- UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- UniSteep filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Self-contained electronics eliminate need for external power module
- Small-diameter UniPoint® capsule near boundary eliminates phase distortion and delivers clear, high-output performance
- Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
- Low-profile design with low-reflectance finish for minimum visibility
SPECS
| ELEMENT | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | Omnidirectional in hemisphere above mounting surface |
| FREQUENCY RESPONSE | 30-20,000 Hz |
| LOW FREQUENCY ROLL-OFF | 80 Hz, 18 dB/octave |
| OPEN CIRCUIT SENSITIVITY | –31 dB (28.2 mV) re 1V at 1 Pa |
| IMPEDANCE | 200 ohms |
| MAXIMUM INPUT SOUND LEVEL | 132 dB SPL, 1 kHz at 1% T.H.D. |
| DYNAMIC RANGE (typical) | 111 dB, 1 kHz at Max SPL |
| SIGNAL-TO-NOISE RATIO | 73 dB, 1 kHz at 1 Pa |
| PHANTOM POWER REQUIREMENTS | 11-52V DC, 4 mA typical |
| SWITCH | Flat, roll-off |
| WEIGHT | 262 g (9.2 oz) |
| DIMENSIONS | 108.0 mm (4.25") maximum length, 84.0 mm (3.31") maximum width, 23.0 mm (0.91") maximum height |
| OUTPUT CONNECTOR | TB3M-type |
| CABLE | 7.6 m (25.0') long, 3.2 mm (0.13") diameter, 2-conductor, shielded cable with TA3F-type and XLRM-type connectors |
| OPTIONAL INTERCHANGEABLE ELEMENTS | UE-C cardioid (120°); UE-H hypercardioid (100°) |
| ACCESSORY FURNISHED | Soft protective pouch |
