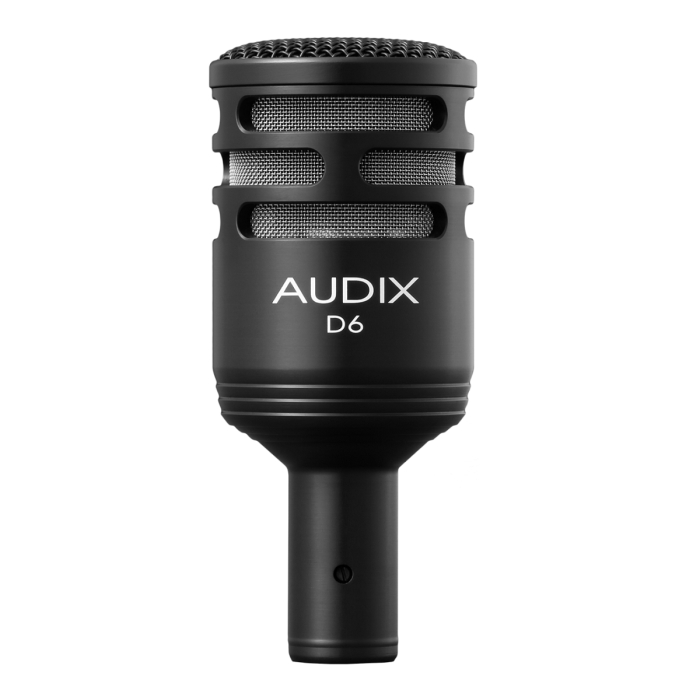

The D6 dynamic instrument microphone is used for stage, studio, and broadcast applications. Designed with a cardioid pickup pattern for isolation and feedback control, the D6 drum microphone is equipped with a VLM™ diaphragm for natural, accurate sound reproduction.

Lightweight, compact, and easy to position, the D6 cardioid microphone is an excellent choice for miking instruments requiring extended low-frequency reproduction such as kick drums, large toms, and bass cabinets. The D6’s transformerless design, low impedance, and balanced output allow for interference-free performance.

Designed, machined, assembled, and tested by Audix in the USA.

Transducer Type: Dynamic
Frequency Response: 30 Hz – 15 kHz
Polar Pattern: Cardioid
Output Impedance: 280 ohms
Sensitivity: 0.8 mV / Pa @ 1k
Capsule Technology: WLM Type E
Off-Axis Rejection: >20 dB
Maximum SPL: ≥144 dB
Power Requirements: None
Connector: 3-pin XLRm
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish: Machined Aluminum / Black Finish
Weight: 254 g / 8.9oz
Length: 117 mm / 4.6 in
