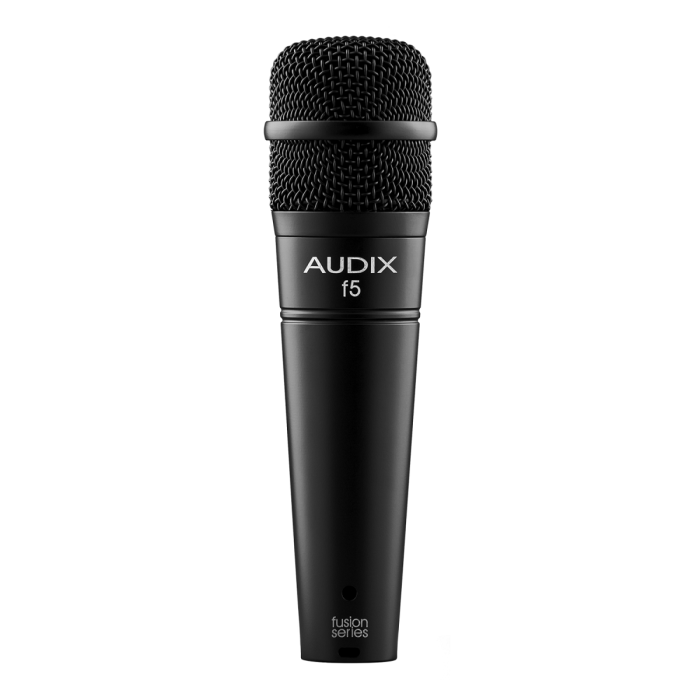

Audix F5 Fusion Series Drum Microphone

The Fusion Series microphones represent affordable excellence.

The f5 dynamic instrument microphone is an ideal choice for snare, toms, percussion, and acoustic instruments in live and studio applications. A hypercardioid pick-up pattern helps to minimize feedback and isolate the instrument from ambient sound.

The f5’s low impedance and balanced output allow interference-free performance.

Designed, assembled, and tested by Audix in the USA.

Transducer Type: Dynamic
Frequency Response: 55 Hz – 15 kHz
Polar Pattern: Hypercardioid
Output Impedance: 580 ohms
Sensitivity: 2.2 mV / Pa @ 1k
Capsule Technology: LM Type A
Off-Axis Rejection: >20 dB
Maximum SPL: ≥137 dB
Power Requirements: None
Connector: 3-pin XLRm
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish: Zinc Alloy / Black Finish
Weight:283 g / 10 oz
Length: 145 mm / 5.7 in
