Boss SDE-3000EVH Dual Digital Delay EVH Edition TGF11

New Open Box With Full Boss Warranty

Authorized Dealer

Super Fast Same Day Shipping

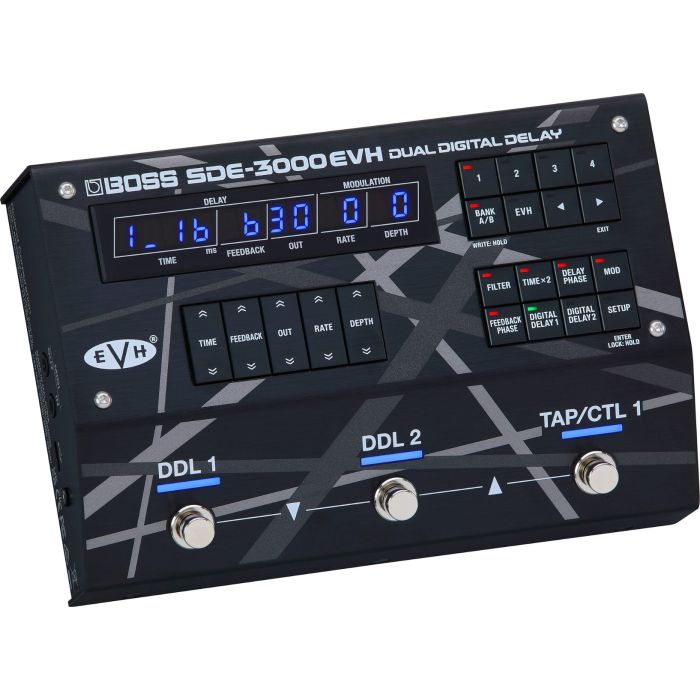

Digital delay effects pedal that’s a faithful reproduction of EVH’s dual Roland SDE-3000 setup.
The SDE-3000 EVH Digital Delay effects pedal faithfully recreates Eddie Van Halen's iconic delay setup in a single, compact pedal. Developed in collaboration with Eddie Van Halen himself, this pedal packs two legendary SDE-3000 delay units with a stereo in/out configuration and selectable return impedance for matching any setup. Guitarists can dial in delay times from 0 to 3,000ms, adjust modulation and switch between parallel and series signal chains just like Eddie did.

Replicate EVH's Unique Sound
With the turn of a knob, guitarists can call up Eddie Van Halen's personal delay presets and signature sound. The EVH button instantly recalls his custom settings while the three outputs provide his unique three-amp setup in one pedal.

Unparalleled Delay Control
The SDE-3000 EVH gives guitarists unparalleled control over their delay effects. Adjustable delay times up to 3,000ms provide a range of sounds from subtle echoes to self-oscillating walls of sound. Musicians can also control modulation, adjust the delay feedback level, and switch the phase of the delay or feedback signals independently for new creative possibilities.

Save and Recall 100 Presets
With 100 storable presets, guitarists can save their favorite delay settings and instantly recall them during performances or studio sessions. The presets also include Eddie Van Halen's personal delay settings for his iconic sound. The CTL1 footswitch provides tap tempo, hold and momentary functions for on-the-fly adjustments. Up to four external footswitches or two expression pedals provide even more hands-free control.

Road-Ready and Intuitive
Housed in a road-tough metal chassis, the SDE-3000 EVH is built to withstand the rigors of touring and studio use. The iconic black and grey EVH stripes provide instant recognition of this legendary piece of gear. Large, easy-to-read displays and intuitive controls make this a user-friendly pedal for guitarists at any skill level.

Features
Faithful reproduction of Eddie Van Halen’s unique dual Roland SDE-3000 setup
One input and three outputs for unique three-amp setup
Selectable Return Impedance for adequate matching
All the features of the SDE-3000D
Get the EVH sound. Order today.

Specs
SDE-3000 EVH Digital Delay Effects Pedal Specifications:
Sampling Frequency: 48kHz
AD Conversion: 24 bits + AF (Adaptive Focus) method—a proprietary method from Roland and BOSS that improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA Conversion: 32 bits
Processing: 32-bit floating point
Effects: SDE-3000 Stereo Delay x2, Noise Suppressor, Foot Volume
Memories: 100
Nominal Input Level: NPUT MONO: -10 dBu, INPUT L/MONO: -10 dBu, RETURN/INPUT R: -10 dBu
Maximum Input Level: INPUT MONO: +12 dBu, INPUT L/MONO: +12 dBu, RETURN/INPUT R: +12 dBu
Input Impedance: INPUT MONO: 1 mohm, INPUT L/MONO: 1 mohm, RETURN/INPUT R: 1 mohm or 180 kohm (switching)
Nominal Output Level: OUTPUT (DIRECT, EFX L, EFX R): -10 dBu, OUTPUT (L/MONO, R): -10 dBu, SEND: -10 dBu
Output Impedance: OUTPUT (DIRECT, EFX L, EFX R): 1 kohm, OUTPUT (L/MONO, R): 1 kohm, SEND: 1 kohm
Recommended Load Impedance: OUTPUT (DIRECT, EFX L, EFX R): 10 kohms or greater, OUTPUT (L/MONO, R): 10 kohms or greater, SEND: 10 kohms or greater
Controls: TIME button, FEEDBACK button, OUT button, RATE button, DEPTH button, 1–4 buttons, BANK A/B button, EVH button, LEFT button, RIGHT button, FILTER button, TIMEx2 button, DELAY PHASE button, MOD button, FEEDBACK PHASE button, DIGITAL DELAY1 button, DIGITAL DELAY2 button, SETUP button, DDL1 switch, DDL2 switch, TAP/CTL1 switch, GND LIFT switch, RETURN IMPEDANCE switch
Display: 7 segments, 12 digits LED
Connectors: INPUT MONO jack, INPUT L/MONO jack, OUTPUT (DIRECT, EFX L, EFX R) jacks, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN/INPUT R jack: 1/4" phone type,
CTL2,3/EXP1 jack, CTL4,5/EXP2/GA-FC jack: 1/4-inch TRS phone type, MIDI (IN, OUT) jacks: Stereo miniature phone type, USB port: USB Type-C(R), DC IN jack
Current Draw: 450 mA
