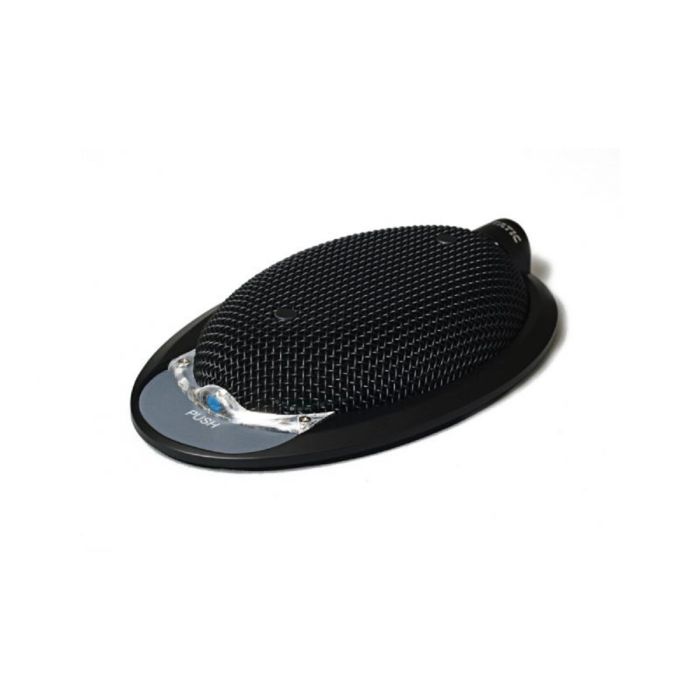

CAD Audio 930VPL Variable Pattern Boundary Microphone

The CAD Audio 930VPL is a high-performance boundary microphone designed to meet the diverse needs of altars, conference tables, stage floors, and media production. Equipped with continuously variable polar pattern selection, this mic allows system designers to precisely tailor its pick-up characteristics, eliminating the need for multiple microphones in different scenarios.

Offering patterns ranging from omnidirectional to cardioid, hypercardioid, and figure-eight, the 930VPL ensures maximum flexibility and sound clarity in any setting. Additional features include RF-resistant architecture, a programmable feather-touch membrane with LED, contact closure in/out interface, and a bottom exit cable option for discreet and professional installations.

With selectable power-up modes (On/Mute) via dip switches, the CAD Audio 930VPL provides seamless integration into any audio system, making it the ideal solution for professional environments demanding exceptional performance and adaptability.

Features

• Continuously variable polar pattern allows for precise sound capture customization.
• Omnidirectional, cardioid, hypercardioid, and figure-eight options ensure optimal performance in any environment.
• Programmable feather-touch membrane with LED for intuitive control.
• Selectable power-up modes (On/Mute) provide flexibility in live and installed applications.
• RF-resistant architecture eliminates interference for clear, professional-quality audio.
• Contact closure in/out interface enhances system compatibility.
• Bottom exit cable option enables clean, low-profile installations.

Specifications

General
- Operating Principal: Permanently-Biased Condenser
- Polar Pattern: Continuously Variable

Performance
- Frequency Response: 90Hz – 17KHz
- Sensitivity: -32dBV (25 mV) @ 1 Pa
- Impedance: 120 ohms
- Max SPL: 120dB
- Self Noise: 29dBA

Power Requirements
- Phantom Power: P12, P24, P48, 4mA

With its customizable pickup pattern, superior sound quality, and advanced features, the CAD Audio 930VPL is an essential tool for professional audio applications. Whether used in corporate settings, houses of worship, theaters, or broadcasting, this microphone delivers unmatched versatility, clarity, and performance.
