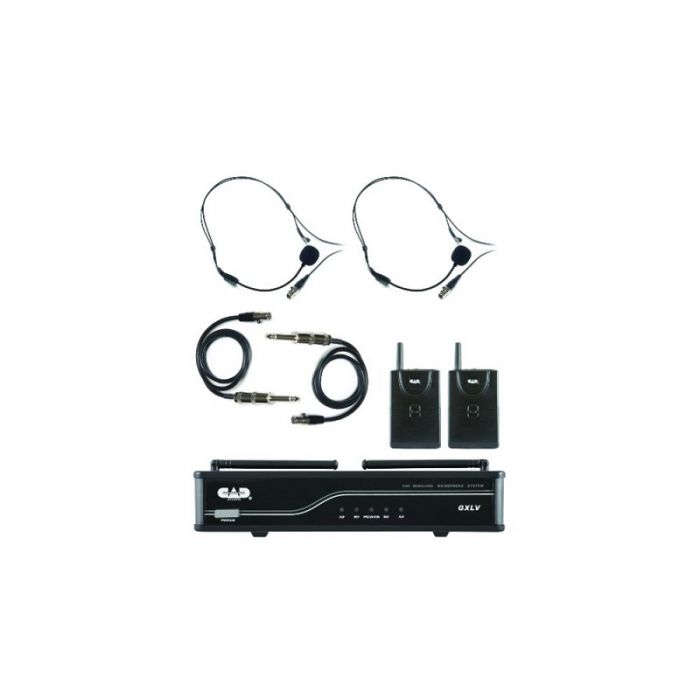

CAD Audio GXLVBBH Dual Bodypack Microphone System Band H

VHF Wireless Dual Bodypack Microphone System H Frequency Band
Dual Channel

SPECS:

• Two discrete channels of wireless packaged in one receiver chassis.
• Each channel has RF and AF indicator lights that indicate the presence of
connectivity and audio source.
• VHF Frequency Operation for increased operating range
• Advanced dipole antenna technology for increased operating range.
• Three output options on the receiver for maximum performance and
flexibility of use.
- Professional balanced XLR discrete
- Professional balanced XLR mixed output
- Professional 1⁄4 inch output for easy output to a guitar amp or mixer
equipped with 1⁄4 inch input connections.
• Handheld transmitter outfitted with on/off and mute function for flexibility
of use.
• Battery life of >10hrs.
• Handheld transmitter features battery life indicator.
• All Bodypack systems ship with WXGTR guitar cable and WXHW

• condenser headworn mic included in the system
• Frequency Band: VHF
• Frequency Response: 50Hz – 18KHz
• Dynamic Range: >100 dB
• Sensitivity: -105 dB
• Output Connectors: (2) XLR Balanced, 1 TRS 1/4”
• TXGXLBV Body Pack Transmitter
• Transmit Power: 10mW
• Power Requirements: 9V battery
• Battery Life: >10 hours (alkaline)
• Connector: Accepts TA4F-type
• TXGXLHV Handheld Transmitter
• Operating Principal: Dynamic Unidirectional Capsule
• Sensitivity: -26 dBV (50mv) @ 1Pa
• Transmit Power: 10mW
• Power Requirements: 9V battery
• Battery Life: >10 hours (alkaline)
