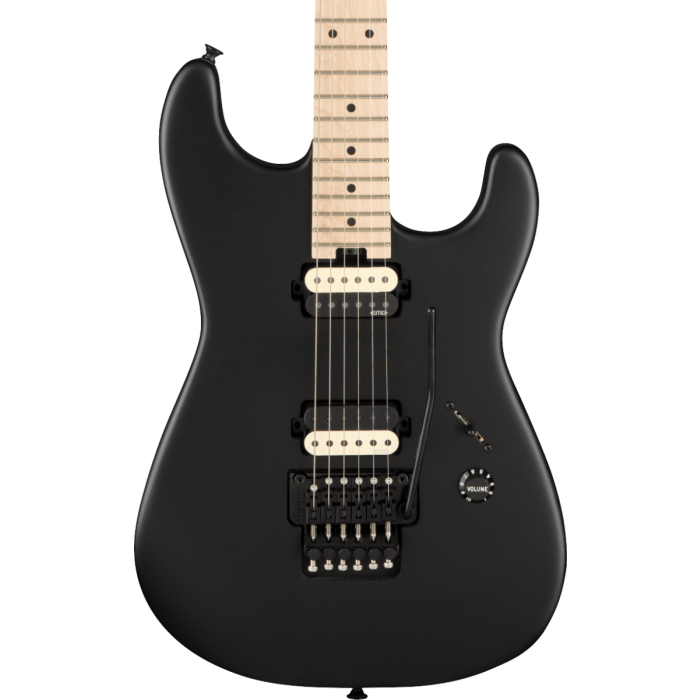

Charvel Jim Root Signature Pro-Mod San Dimas Style 1 Electric Guitar. HH FR M, Maple Fingerboard, Satin Black

The Jim Root Signature Pro-Mod San Dimas® Style 1 HH FR M begins with a mahogany body that has been sleekly contoured with a scalloped lower back bout for comfortable and unencumbered upper-fret access. The bolt-on maple neck is graphite-reinforced for rock-solid stability to withstand extreme climate changes, while the 12"-16" compound radius maple fingerboard with rolled edges and 22 jumbo frets allows for effortlessly fast playing and comfortable bends. A heel-mount truss rod adjustment wheel and Luminlay® side dots are game changers for touring musicians, allowing for pain-free neck relief tweaks on the fly and fingerboard guidance on even the darkest of metal stages.

A fearsome set of EMG® Jim Root Daemonum™ humbucking pickups combines the power of active pickups with the sensitive touch of passive pickups. Incredibly responsive and versatile, these pickups create a massive wall of crushing sound that cuts to the front of the mix. The streamlined controls consist of a three-way blade pickup switch and a skirted Strat®-style volume knob.

Dive bomb for days while maintaining tuning stability courtesy of the premium Floyd Rose® 1500 Series double-locking tremolo and Charvel locking tuners.

The Jim Root Signature Pro-Mod San Dimas® Style 1 HH FR M comes in a menacing Satin Black finish with black hardware. A Charvel multi-fit hardshell gig bag is also included.

Specifications:

General
- Series: Artist Signature
- Orientation: Right-Hand
- Color: Satin Black
- Country Of Origin: MX

Neck
- Headstock: Licensed Fender® Stratocaster®
- Material: Maple
- Finish: Hand-Rubbed Satin Urethane
- Shape: Speed Neck with Rolled Fingerboard Edges
- Construction: Bolt-On with Graphite Reinforcement
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Maple
- Position Inlays: Black Dot
- Side Dots: Luminlay®
- Number of Frets: 22
- Truss Rod: Dual-Action with Wheel
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- String Nut: Floyd Rose® 1500 Series Locking
- Nut Width: 1.6875" (42.86 mm)
- Nut Material: Floyd Rose® 1500 Series Locking

Body
- Body: Mahogany
- Finish: Satin
- Shape: San Dimas® Style 1
- Style: Solid Body
- Material: Mahogany

Hardware
- Bridge: Floyd Rose® 1500 Series Double-Locking Tremolo
- Pickguard: None
- Pickup Covers: Zebra (Black/White)
- Control Knobs: Strat®-Style Skirt
- Switch Tip: Black
- Hardware Finish" Black
- Tuning Machines: Charvel®-Branded Die-Cast Locking
- String Trees: Floyd Rose® Retainer Bar
- Strings: Nickel Plated Steel (.009-.042 Gauges)
- Tremolo Arm: Floyd Rose® 1500 Series Locking
- Neck Plate: 4-Bolt Serialized
- Strap Buttons: Standard

Electronics
- Bridge Pickup: EMG® Jim Root Signature Daemonum™ Open-Coil Active Humbucking
- Neck Pickup: EMG® Jim Root Signature Daemonum™ Open-Coil Active Humbucking
- Pickup Configuration: HH
- Controls: Volume
- Switching: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
- Special Electronics: Active Electronics

Measurements
- Dimensions: 7.00x17.00x44.00 IN
- Shipping Weight: 15.90 LB
- Fret Size: Jumbo
- Scale Length: 25.5" (64.77 cm)
- Shipping Length: 44.00 IN
- Shipping Height: 7.00 IN
- Shipping Width: 17.00 IN

Miscellaneous
- Unique Features: Luminlay® Side Dots
