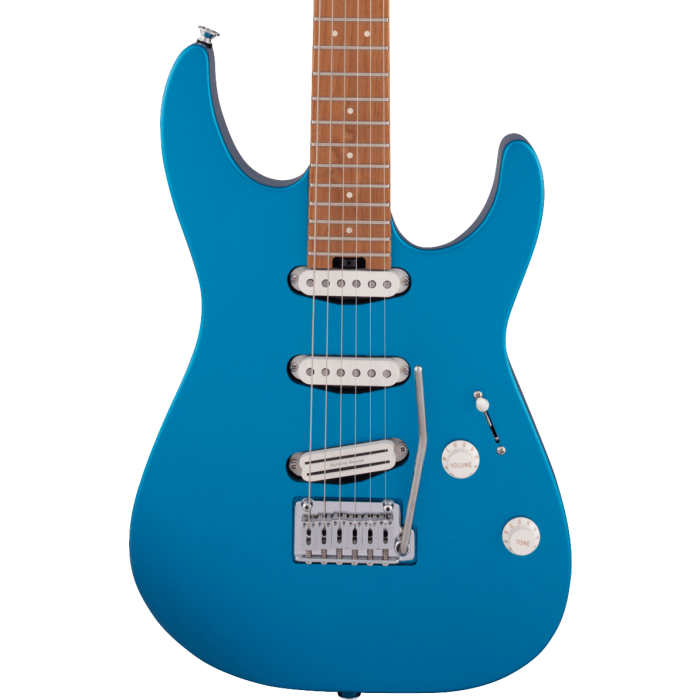

Charvel Pro-Mod DK22 SSS 2PT Electric Guitar. Caramelized Maple FB, Electric Blue

Featuring a sculpted shredder's cut heel and scalloped lower back bout for comfortable and unencumbered upper fret access, the Dinky® alder body is paired with a graphite-reinforced bolt-on caramelized maple neck for rock-solid stability. The baked neck has a silky-smooth hand-rubbed satin urethane finish on the back for sublime playability, Luminlay® side dots to guide your way along the fretboard on dark stages and a heel-mount truss rod adjustment wheel for quick and painless neck relief tweaks. Designed for high-speed playing, its 12"-16" compound radius caramelized maple fingerboard features comfortable rolled edges, 22 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.

Routed for an SSS pickup configuration, this axe combines a Seymour Duncan® Custom Hot Rails® Strat® SHR-1B humbucking bridge pickup, Seymour Duncan Custom Flat Strat SSL-6 single-coil middle pickup and Seymour Duncan Custom Flat Strat SSL-6 RWRP single-coil neck pickup for plenty of glassy, vintage-style timbre with classic Strat chime.

The Pro-Mod DK22 SSS 2PT CM hosts other premium modern features including a five-way blade pickup switch, Stratocaster®-style skirt knobs for the volume (500K EVH® Bourns® low friction potentiometer) and no-load tone controls, Gotoh® Custom 510 tremolo bridge, die-cast tuners and more.

Designed with head-turning style, the all-new DK22 SSS 2PT CM is available in Electric Blue, Gloss Black and Pharaohs Gold with chrome hardware. The Gloss Black model features matte black pickup bobbins and black control knobs, while the Electric Blue and Pharaohs Gold models feature matte parchment pickup bobbins and parchment knobs.

Features

• 25.5" scale length
• Alder Dinky® body with scalloped lower back bout
• Sculpted shredder's cut heel
• Bolt-on caramelized maple neck with graphite reinforcement and hand-rubbed satin urethane on the back
• 12"-16" compound radius caramelized fingerboard with rolled edges, 22 jumbo frets and 4mm pearloid dots
• Luminlay® side dots
• Heel-mount truss rod adjustment wheel
• Routed for an SSS pickup configuration with a direct mount Seymour Duncan Custom Hot Rails® Strat SHR-1B humbucking bridge, Seymour Duncan Custom Flat Strat SSL-6 Single-Coil middle and Seymour Duncan Custom Flat Strat SSL-6 RWRP Single-Coil neck pickups
• Five-way blade switch, volume control (500K EVH® Bourns® low friction potentiometer) and no-load tone control
• Stratocaster®-style skirt knobs
• Gotoh® Custom 510 tremolo bridge
• Graph Tech® TUSQ® XL nut
• Charvel-branded sealed die-cast locking tuners and standard strap buttons
• Available in Electric Blue, Gloss Black and Pharaohs Gold with chrome hardware; Electric Blue and Pharaohs Gold feature parchment controls and matte parchment pickup bobbins, while Gloss Black features matte black pickup bobbins and black controls

Specifications:

General
- Series: Pro-Mod
- Orientation: Right-Hand
- Color: Electric Blue
- Country of Origin: Mexico

Neck
- Headstock: Licensed Fender® Stratocaster®
- Neck Material: Caramelized Maple
- Neck Finish: Hand-Rubbed Satin Urethane
- Neck Shape: Speed Neck with Rolled Fingerboard Edges
- Neck Construction: Bolt-On with Graphite Reinforcement
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Caramelized Maple
- Position Inlays: 4mm Pearloid Dot
- Number of Frets: 22
- Truss Rod: Dual-Action with Wheel
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- String Nut: Graph Tech TUSQ XL
- Nut Width: 1.6875" (42.86 mm)

Body
- Body Material: Alder
- Body Finish: Satin
- Body Shape: Dinky®
- Body Style: Solid Body

Hardware
- Bridge: Gotoh® Custom 510 Tremolo
- Pickguard: None
- Pickup Covers: Flat Parchment
- Control Knobs: Stratocaster®-Style Skirt
- Switch Tip: Parchment
- Hardware Finish: Chrome
- Tuning Machines: Charvel®-Branded Die-Cast Locking
- String Trees: Fender® Standard String Guide
- Strings: Nickel Plated Steel (.009-.042 Gauges)
- Tremolo Arm: Gotoh®
- Neck Plate: None - 4-Bolt Sculpted Heel
- Strap Buttons: Standard

Electronics
- Bridge Pickup: Seymour Duncan® Custom Hot Rails® Strat® SHR-1B
- Middle Pickup: Custom Seymour Duncan® Flat Strat® SSL-6 Single-Coil
- Neck Pickup: Custom Seymour Duncan® Flat Strat® SSL-6 RWRP Single-Coil
- Pickup Configuration: SSS
- Controls: Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone

Switching:
- Position 1: Full Bridge Pickup
- Position 2: Bridge Inner Coil and Middle Pickup
- Position 3: Bridge Outer Coil and Neck Pickup
- Position 4: Middle and Neck Pickup
- Position 5: Full Neck Pickup

Measurements
- Dimensions: 4.50 x 15.20 x 42.00 IN
- Shipping Weight: 10.90 LB
- Fret Size: Jumbo
- Scale Length: 25.5" (64.77 cm)
- Shipping Length: 42.00 IN
- Shipping Height: 4.50 IN
- Shipping Width: 15.20 IN

Accessories
- Saddle Height Wrench: Yes

Miscellaneous
- Disclaimer: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Commodity Code: 9207901000
- Unique Features: Luminlay® Side Dots
