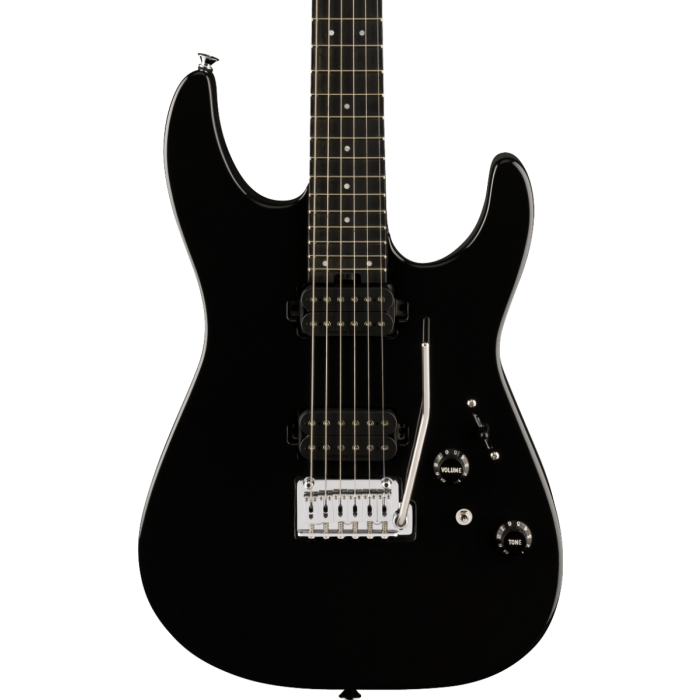

Charvel Pro-Mod DK24 Electric Guitar. HH 2PT EB, Ebony Fingerboard, Gloss Black

The bolt-on caramelized maple “speed” neck has graphite reinforcement, silky-smooth hand-rubbed urethane back finish, heel-mount truss rod adjustment wheel and Luminlay® side dots. Its 12”-16” compound radius ebony fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.
Brimming with versatility courtesy of the mini two-way toggle switch for series and parallel, this axe features an HH pickup configuration consisting of a direct mount Custom Seymour Duncan® Full Shred TB-10 bridge pickup and direct mount Seymour Duncan® Alnico II Pro APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.
Blending sophisticated style with assertive tone, the DK24 HH 2PT EB also offers premium modern features such as a five-way blade pickup switch, Stratocaster®-style skirt knobs for the volume (with 500K EVH® Bourns® low-friction potentiometer) and no-load tone controls, Gotoh® Custom 510 recessed tremolo bridge, locking tuners, chrome hardware and more.

Features

• Alder Dinky® body
• Bolt-on caramelized maple neck with graphite reinforcement
• 12”-16” compound radius ebony fingerboard with 24 jumbo frets and pearloid dot inlays
• Graph Tech® TUSQ® XL nut
• Heel-mount truss rod adjustment wheel
• Direct mount Seymour Duncan® Custom Full Shred TB-10 bridge pickup and direct mount Seymour Duncan Alnico II Pro APH-1N neck pickup
• Five-way blade switch, Stratocaster®-style skirt knobs for no-load tone control and volume knob (with 500K EVH® Bourns™ low-friction potentiometer)
• Mini two-way toggle switch for parallel and series pickup combinations
• Gotoh® Custom 510 recessed tremolo bridge
• Charvel-branded die-cast locking tuners
• Available in Gloss Black with chrome hardware

Specifications:

General
- Series: Pro-Mod
- Orientation: Right-Hand
- Color: Gloss Black
- Country Of Origin: MX

Neck
- Headstock: Licensed Fender® Stratocaster®
- Material: Caramelized Maple
- Finish: Hand-Rubbed Urethane
- Shape: Speed Neck with Rolled Fingerboard Edges
- Construction: Bolt-On with Graphite Reinforcement
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Ebony
- Position Inlays: 4mm Pearloid Dot
- Side Dots: Luminlay®
- Number of Frets: 24
- Truss Rod: Dual-Action with Wheel
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- String Nut: Graph Tech TUSQ XL
- Nut Width: 1.6875" (42.86 mm)
- Nut Material: Graph Tech TUSQ XL

Body
- Body: Alder
- Finish: Gloss
- Shape: Dinky®
- Style: Solid Body
- Material: Alder

Hardware
- Bridge: Gotoh® Custom 510 Tremolo
- Pickguard: None
- Pickup Covers: Black
- Control Knobs: Strat®-Style Skirt
- Switch Tip: Black
- Hardware Finish: Chrome
- Tuning Machines: Charvel®-Branded Die-Cast Locking
- String Trees: Fender® Standard String Guide
- Strings: Nickel Plated Steel (.009-.042 Gauges)
- Tremolo Arm: Gotoh®
- Neck Plate: None - 4-Bolt Sculpted Heel
- Strap Buttons: Standard

Electronics
- Bridge Pickup: Seymour Duncan® Full Shred™ TB-10
- Neck Pickup: Seymour Duncan® Alnico II Pro™ APH-1N
- Pickup Configuration: HH
- Controls: Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
- Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Both Outer Coils, Position 3. Bridge and Neck Pickup, Position 4. Both Inside Coils, Position 5. Neck Pickup
- Auxiliary Switching: 2-Position Mini Toggle Down/All Series, Up/All Parallel

Measurements
- Dimensions: 4.60x15.20x42.20 IN
- Shipping Weight: 10.50 LB
- Fret Size: Jumbo
- Scale Length: 25.5" (64.77 cm)
- Shipping Length: 42.20 IN
- Shipping Height: 4.60 IN
- Shipping Width: 15.20 IN

Accessories
- Saddle Height Wrench: Yes

Miscellaneous
- Unique Features: Luminlay® Side Dots
