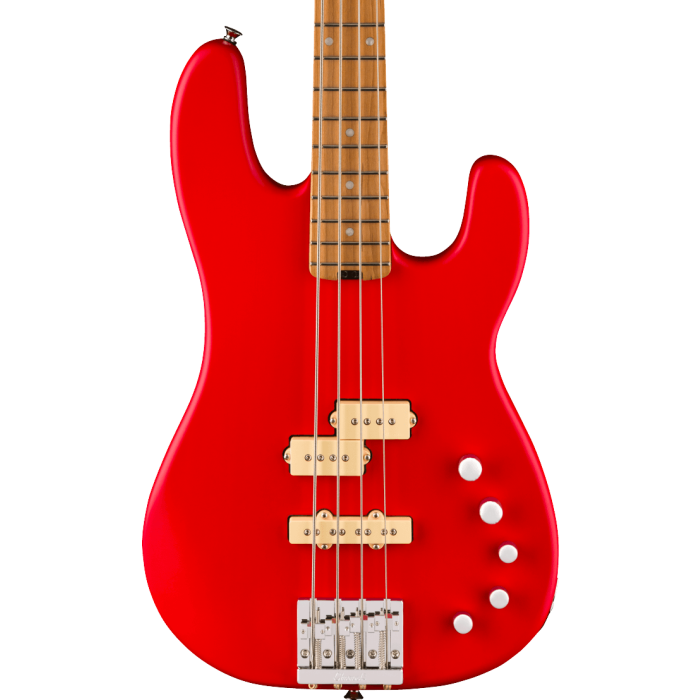

Charvel Pro-Mod San Dimas Bass PJ Electric Bass IV MAH, Caramelized Maple Fingerboard, Satin Ferrari Red

The sleek body shape is a familiar one - straight from the original Charvel San Dimas basses of late 1970s, with the deeper cutaway that gave adventurous bassists effortless upper-register access.

The super-thin bolt-on maple Charvel speed neck is crafted in the original style, with a gorgeous caramelized treatment, graphite reinforcement and heel-mount truss rod wheel for easy adjustment. The 12”-16” compound radius caramelized maple fingerboard gradually flattens from nut to heel for fast, smooth playing, and has rolled edges, 20 jumbo frets and Luminlay® side dots.

And like the originals, the Pro-Mod San Dimas® Bass PJ IV MAH features the powerhouse voice of DiMarzio® pickups - a Model J™ at the bridge for well-rounded punch and a Model P® in the middle for warm and fat tone with a mid-range growl when pushed. Versatile electronics include three-band active EQ, pickup blend control and a master volume control with push/pull selector. The push/pull selector eliminates the risk of losing sound due to a dead battery as a quick pull on the volume knob bypasses the EQ’s active circuit and regains sound from the bass without the use of battery power.

A Charvel HiMass™ bridge, Graph Tech® TUSQ® XL nut and open-gear tuners combine for stellar tuning stability with improved note punch and sustain.

This 4-string bass is presented in a Natural Mahogany and Satin Ferrari Red finishes with chrome hardware, cream pickup covers and licensed Fender® Precision Bass® headstock shape.

Features

• Genuine Mahogany body
• Caramelized maple neck
• 12”-16” compound radius caramelized maple fingerboard
• DiMarzio pickups
• Luminlay side-dots
• Volume
• Blend
• 3-band EQ
• Charvel Hi-Mass bridge

Specifications:

General
- Series: Pro-Mod
- Orientation: Right-Hand
- Color: Satin Ferrari Red
- Country Of Origin: MX

Neck
- Headstock: Licensed Fender® Precision Bass®
- Material: Caramelized Maple
- Finish: Hand-Rubbed Satin Urethane
- Shape: Speed Neck with Rolled Fingerboard Edges
- Construction: Bolt-On with Graphite Reinforcement
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Caramelized Maple
- Position Inlays: Cream Dot
- Side Dots: Luminlay®
- Number of Frets: 20
- Truss Rod: Dual-Action with Wheel
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- String Nut: Graph Tech TUSQ XL
- Nut Width: 1.5" (38.1 mm)
- Nut Material: Graph Tech TUSQ XL

Body
- Body: Mahogany
- Finish: Satin
- Shape: San Dimas® Bass
- Style: Solid Body
- Material: Mahogany

Hardware
- Bridge: Charvel® HiMass™
- Pickup Covers: Cream
- Control Knobs: Dome-Style
- Hardware Finish: Chrome
- Tuning Machines: Charvel® Open-Gear
- String Trees: Vintage-Style Disc
- Strings: Nickel Plated Steel (.045-.100 Gauges)
- Neck Plate: 4-Bolt Standard
- Strap Buttons: Standard

Electronics
- Bridge Pickup: DiMarzio® Model J™ DP123
- Middle Pickup: DiMarzio® Model P® DP122
- Pickup Configuration: PJ
- Controls: Volume (Push/Pull Selector for Active/Passive Options), Blend, 3-Band EQ (Active Only)
- Switching: None
- Special Electronics: Active Electronics

Measurements
- Dimensions: 4.50x15.20x59.50 IN
- Shipping Weight: 11.75 LB
- Fret Size: Jumbo
- Scale Length: 34" (86.36 cm)
- Shipping Length: 59.50 IN
- Shipping Height: 4.50 IN
- Shipping Width: 15.20 IN

Accessories
- Saddle Height Wrench: N/A

Miscellaneous
- Unique Features: Luminlay® Side Dots
