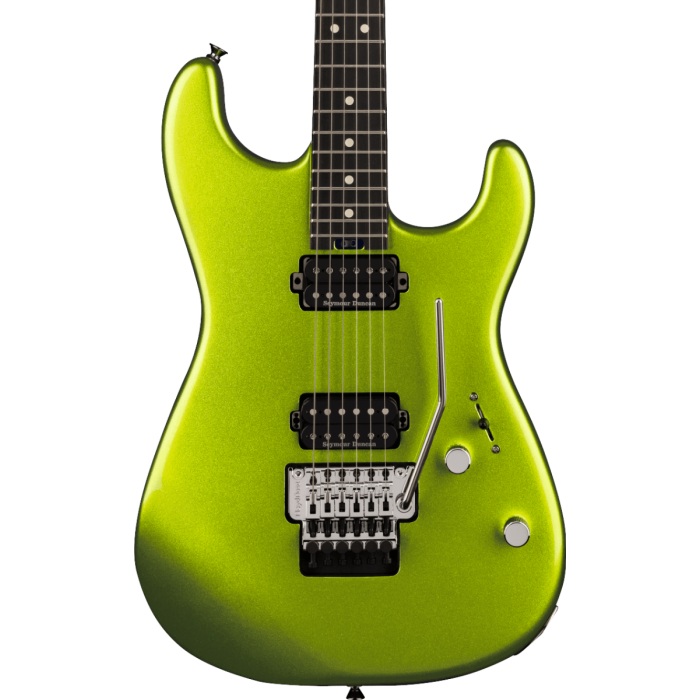

Charvel Pro-Mod San Dimas Style 1 Electric Guitar. HH FR E, Ebony Fingerboard, Lime Green Metallic

The Pro-Mod Series continues upon Charvel's storied legacy of innovative excellence in high-performance guitar design, offering the latest technology and top-notch features that modern players need. An ideal instrument for dazzling high-speed playing, the San Dimas® Style 1 HH FR E boasts scorching sound, stunning style and grin-inducing playing feel and performance.

Features

• 25.5" scale length
• Alder body
• Bolt-on maple neck with graphite reinforcement and hand-rubbed satin urethane finish on the back
• 12"-16" compound radius ebony fingerboard with 22 jumbo frets and white dot inlays
• Heel-mount truss rod adjustment wheel
• Direct mount Seymour Duncan® JB™ TB-4 humbucking bridge and Seymour Duncan '59™ SH-1N humbucking neck pickups
• Three-way pickup blade switch, volume control with (push/pull coil split) and no-load tone control
• Floyd Rose® 1000 Series double-locking tremolo bridge system
• Charvel®-branded sealed die-cast tuners, Charvel neck plate and standard strap buttons
• Available in Lime Green Metallic with chrome hardware, or in Miami Blue with gold hardware

Specifications:

General
- Series: Pro-Mod
- Orientation: Right-Hand
- Color: Lime Green Metallic
- Country Of Origin: MX

Neck
- Headstock: Licensed Fender® Stratocaster®
- Material: Maple
- Finish: Hand-Rubbed Satin Urethane
- Shape: Speed Neck with Rolled Fingerboard Edges
- Construction: Bolt-On with Graphite Reinforcement
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Ebony
- Position Inlays: White Dot
- Side Dots: White
- Number of Frets: 22
- Truss Rod: Dual-Action with Wheel
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- String Nut: Floyd Rose® 1000 Series Locking
- Nut Width: 1.6875" (42.86 mm)
- Nut Material: Floyd Rose® 1000 Series Locking

Body
- Body: Alder
- Finish: Gloss
- Shape: San Dimas® Style 1
- Style: Solid Body
- Material: Alder

Hardware
- Bridge: Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
- Pickguard: None
- Pickup Covers: Black
- Control Knobs: Knurled Flat-Top
- Switch Tip: Black
- Hardware Finish: Chrome
- Tuning Machines: Charvel®-Branded Die-Cast
- String Trees: Floyd Rose® Retainer Bar
- Strings: Nickel Plated Steel (.009-.042 Gauges)
- Tremolo Arm: Floyd Rose® 1000 Series Locking
- Neck Plate: 4-Bolt Serialized
- Strap Buttons: Standard

Electronics
- Bridge Pickup: Seymour Duncan® JB™ TB-4
- Neck Pickup: Seymour Duncan® '59™ SH-1N
- Pickup Configuration: HH
- Controls: Volume (Push/Pull Coil Split), No-Load Tone
- Switching: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil

Measurements
- Dimensions: 4.50x15.20x42.30 IN
- Shipping Weight: 10.90 LB
- Fret Size: Jumbo
- Scale Length: 25.5" (64.77 cm)
- Shipping Length: 42.30 IN
- Shipping Height: 4.50 IN
- Shipping Width: 15.20 IN
