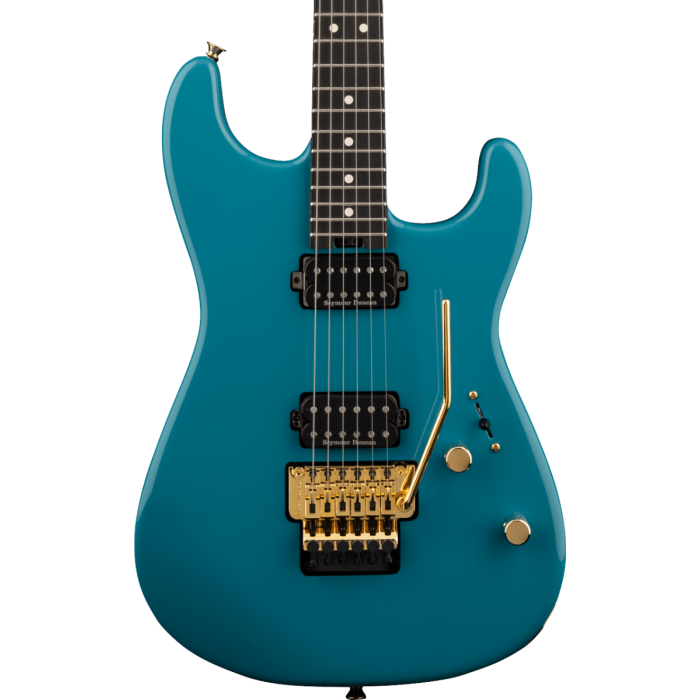

Charvel Pro-Mod San Dimas Style 1 Electric Guitar. HH FR E, Ebony Fingerboard, Miami Blue

Crafted from alder, the body is coupled with a bolt-on maple neck featuring a pair of graphite reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning fast playing and completely unhindered position shifts, while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go. Perfect for faster tempos, the 12"-16" compound radius ebony fingerboard hosts 22 jumbo frets and white dot inlays. For regularly touring musicians, a heel-mount truss rod adjust thumbwheel is a must, allowing for quick and convenient neck relief tweaks.

High-output Seymour Duncan® JB and Seymour Duncan '59™ humbucking pickups are directly mounted to the body, cranking out high octane rock 'n' roll tone with plenty of sweet overtones. The volume control conceals a push/pull coil split to have even more tonal variations on tap while the no-load tone control operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound that lets the full natural voice of the guitar shine through. Dive to rumbling depths or add a well-placed rising harmonic without sacrificing your tuning with the Floyd Rose® 1000 Series double-locking tremolo bridge system.

Features

• 25.5" scale length
• Alder body
• Bolt-on maple neck with graphite reinforcement and hand-rubbed satin urethane finish on the back
• 12"-16" compound radius ebony fingerboard with 22 jumbo frets and white dot inlays
• Heel-mount truss rod adjustment wheel
• Direct mount Seymour Duncan® JB™ TB-4 humbucking bridge and Seymour Duncan '59™ SH-1N humbucking neck pickups
• Three-way pickup blade switch, volume control with (push/pull coil split) and no-load tone control
• Floyd Rose® 1000 Series double-locking tremolo bridge system
• Charvel®-branded sealed die-cast tuners, Charvel neck plate and standard strap buttons
• Available in Lime Green Metallic with chrome hardware, or in Miami Blue with gold hardware

Specifications:

General
- Series: Pro-Mod
- Orientation: Right-Hand
- Color: Miami Blue
- Country Of Origin: MX

Neck
- Headstock: Licensed Fender® Stratocaster®
- Neck Material: Maple
- Neck Finish: Hand-Rubbed Satin Urethane
- Neck Shape: Speed Neck with Rolled Fingerboard Edges
- Neck Construction: Bolt-On with Graphite Reinforcement
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Ebony
- Position Inlays: White Dot
- Side Dots: White
- Number of Frets: 22
- Truss Rod: Dual-Action with Wheel
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- String Nut: Floyd Rose® 1000 Series Locking
- Nut Width: 1.6875" (42.86 mm)
- Nut Material: Floyd Rose® 1000 Series Locking

Body
- Body: Alder
- Body Finish: Gloss
- Body Shape: San Dimas® Style 1
- Body Style: Solid Body
- Body Material: Alder

Hardware
- Bridge: Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
- Pickguard: None
- Pickup Covers: Black
- Control Knobs: Knurled Flat-Top
- Switch Tip: Black
- Hardware Finish: Gold
- Tuning Machines: Charvel®-Branded Die-Cast
- String Trees: Floyd Rose® Retainer Bar
- Strings: Nickel Plated Steel (.009-.042 Gauges)
- Tremolo Arm: Floyd Rose® 1000 Series Locking
- Neck Plate: 4-Bolt Serialized
- Strap Buttons: Standard

Electronics
- Bridge Pickup: Seymour Duncan® JB™ TB-4
- Neck Pickup: Seymour Duncan�� '59™ SH-1N
- Pickup Configuration: HH
- Controls: Volume (Push/Pull Coil Split), No-Load Tone
- Switching: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil

Measurements
- Dimensions: 4.50x15.00x42.00 IN
- Shipping Weight: 11.45 LB
- Fret Size: Jumbo
- Scale Length: 25.5" (64.77 cm)
- Shipping Length: 42.00 IN
- Shipping Height: 4.50 IN
- Shipping Width: 15.00 IN

Accessories
- Saddle Height Wrench: N/A
