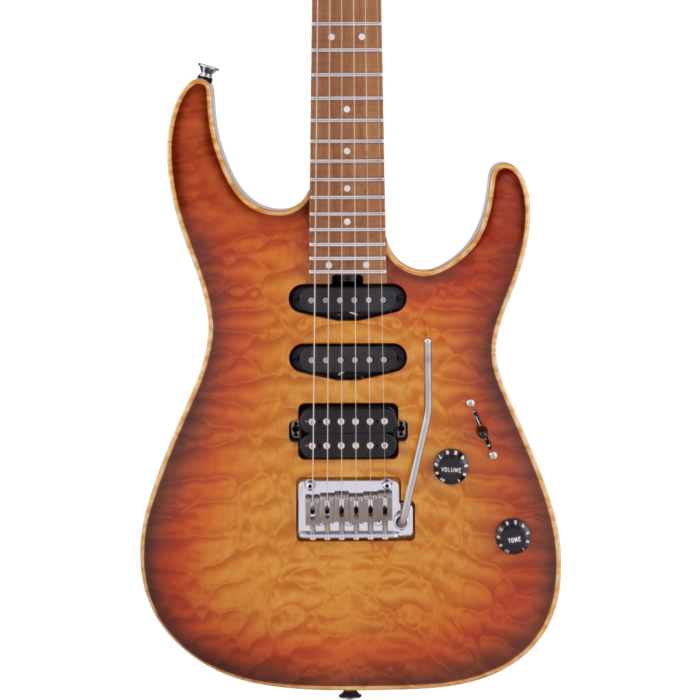

Charvel USA Select DK24 Electric Guitar. HSS 2PT CM QM, Caramelized Maple Fingerboard, Autumn Glow

The Dinky® alder body features a rippling quilt maple top and is paired with a bolt-on caramelized maple "speed" neck with graphite reinforcement, sculpted heel and a silky-smooth hand-rubbed urethane back finish for comfortable playability. The back of the body features a scalloped lower back bout that works in tandem with the shredder's cut heel to allow for easy upper fretboard access.

Built for highly-technical playing, its 12"-16" compound radius caramelized maple fingerboard features comfortable rolled edges, 24 stainless steel jumbo frets, pearl dot inlays and a Graph Tech® TUSQ® XL nut. Luminlay® side dots provide fretboard guidance even on the darkest of stages, while a heel-mount truss rod adjustment wheel makes for quick and painless neck relief tweaks.

An HSS pickup configuration consisting of a custom Seymour Duncan® Full Shred™ TB-10 bridge pickup, Seymour Duncan Custom Flat Strat® SSL-6 single-coil middle pickup and Seymour Duncan Custom Flat Strat SSL-6 RWRP single-coil neck pickup proves to be a versatile tonal force with beefed up mids and articulated, crispy highs.

Other premium modern features include a five-way blade switch, Stratocaster®-style skirt knobs for the volume (with 500K EVH® Bourns® low friction potentiometer) and no-load tone controls, Gotoh® Custom 510 recessed tremolo bridge with titanium saddles and thick brass block, USA-made Sperzel® locking tuners, and more.

Sporting sophisticated style, sound and craftmanship, the USA Select DK24 HSS 2PT CM QM is available in Autumn Glow or Blue Burst with masked-off natural binding chrome hardware.

Features

• Alder Dinky® body with quilt maple top
• Scalloped lower back bout for easy upper access to fingerboard
• Bolt-on caramelized maple neck with graphite reinforcement and hand-rubbed urethane finish on the back
• Sculpted shredder's heel
• 12"-16" compound radius caramelized maple fingerboard with 24 jumbo stainless steel frets and pearl dot inlays
• Luminlay® side dots
• Graph Tech® TUSQ® XL nut
• Heel-mount truss rod adjustment wheel
• Direct mount custom Seymour Duncan® Full Shred™ TB-10 bridge pickup, direct mount Seymour Duncan Custom Flat Strat® SSL-6 single-coil middle pickup and Seymour Duncan Custom Flat Strat SSL-6 RWRP single-coil neck pickup
• Five-way blade switch, Stratocaster®-style skirt knobs for no-load tone control and volume knob (with 500K EVH® Bourns® low friction potentiometer)
• Gotoh® Custom 510 recessed tremolo bridge with titanium saddles and thick brass block
• USA-made Sperzel® die-cast locking tuners
• Available in Autumn Glow or Blue Burst with masked-off natural binding and chrome hardware

Specifications:

General
- Series: USA Select
- Orientation: Right-Hand
- Color: Autumn Glow
- Country Of Origin: US

Neck
- Headstock: Licensed Fender® Stratocaster®
- Material: Caramelized Flame Maple
- Finish: Hand-Rubbed Urethane
- Shape: Speed Neck with Rolled Fingerboard Edges
- Construction: Bolt-On with Graphite Reinforcement
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Caramelized Flame Maple
- Position Inlays: 4mm Pearloid Dot
- Number of Frets: 24
- Truss Rod: Dual-Action with Wheel
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- String Nut: Graph Tech TUSQ XL
- Nut Width: 1.6875" (42.86 mm)
- Nut Material: Graph Tech TUSQ XL

Body
- Body: Caramelized Alder
- Finish: Gloss
- Shape: Dinky®
- Top: Quilt Maple
- Binding: Masked-Off Natural
- Style: Solid Body
- Material: Alderh

Hardware
- Bridge: Gotoh® Custom 510 Tremolo Bridge with Brass Block and Titanium Saddles
- Pickguard: None
- Pickup Covers: Flat Black
- Control Knobs: Stratocaster®-Style Skirt
- Switch Tip: Black
- Hardware Finish: Chrome
- Tuning Machines: Sperzel® Die-Cast Locking
- Strings: Nickel Plated Steel (.009-.042 Gauges)
- Tremolo Arm: Gotoh®
- Neck Plate: 4-Bolt Sculpted Heel
- Strap Buttons: Standard

Electronics
- Bridge Pickup: Seymour Duncan® Full Shred™ TB-10
- Middle Pickup: Seymour Duncan® Custom Flat Strat® SSL-6 Single-Coil
- Neck Pickup: Seymour Duncan® Custom Flat Strat® SSL-6 RWRP Single-Coil
- Pickup Configuration: HSS
- Controls: Volume (with 500K EVH® Bourns® Low Friction Potentiometer), No-Load Tone
- Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Inner Coil of Bridge and Middle Pickup, Position 3. Neck and Bridge Outer Coil, Position 4. Neck and Middle Pickup, Position 5. Neck Pickup

Measurements
- Dimensions: 7.50x18.00x45.75 IN
- Shipping Weight: 20.15 LB
- Fret Size: Jumbo Stainless Steel
- Scale Length: 25.5" (64.77 cm)
- Shipping Length: 45.75 IN
- Shipping Height: 7.50 IN
- Shipping Width: 18.00 IN
