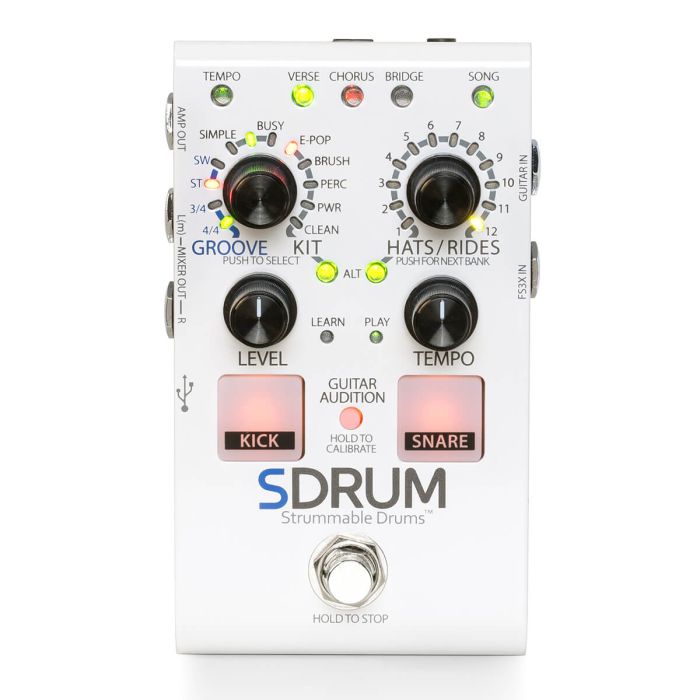

Digitech SDrum Drum Machine TGF33
OPEN BOX - NOT AVAILABLE IN STORE - ONLINE ORDERS ONLY
Mint, Perfect, Open Box with Full Digitech Warranty
SDRUM is the world’s first intelligent drum machine for guitarists and bassists. By simply scratching across your guitar strings, you teach the SDRUM a kick snare pattern that forms the foundation of the beat you want to hear. Based on this pattern, the SDRUM supplies a professional sounding drum beat with different embellishments and variations to perfectly complement your beat. Gone are the days of having your creative flow disrupted by searching through lists in a frustrating attempt to find the beat you want.
The SDRUM stores up to 36 different songs. Beats are played from a choice of 5 different kits covering a wide range of genres. The pedal also supports three different parts (e.g. verse/chorus/bridge) for each song that can be switched on the fly for enhancing live performances and exploring song ideas.
SDRUM is the fastest way to go from a beat idea to a working drum track.
General Specifications
Controls
Groove/Kit, Hats/Rides, Level, Tempo
Backlit Buttons
Tempo, Verse, Chorus, Bridge, Song, Alt (Kit), Alt (Hats/Rides), Guitar Audition
Pads
Kick, Snare
Footswitches
Main Footswitch
LEDs
Learn, Play
Jacks
Guitar In, FS3X In, Amp Out, Mixer Out L(m), Mixer Out R, JamSync Out
Other
Mini USB port
Inputs
Guitar Input
Type: Unbalanced, 1/4" TS / Impedance: 1 MΩ / Max Input: +8 dBu
FS3X Input
Type: 1/4" TRS (compatible with DigiTech FS3X)
Outputs
Amp Output
Type: Unbalanced, 1/4" TS / Impedance: 1 kΩ / Frequency Response: 20 Hz–20 kHz
Mixer L/R Outputs
Type: Impedance balanced, 1/4" TRS / Impedance: 1 kΩ / Max Output: +19 dBu / Frequency Response: 20 Hz–20 kHz
JamSync Outputs
Type: 1/8" TRS
Performance
Bit Depth
24-bit
Sample Rate
44.1 kHz
Signal-To-Noise Ratio
≥108 dB, A-weighted
THD + Noise
0.004% @ 1 kHz
Storage
Maximum Bars
4 bars per song part
Maximum Parts
3 per song
Maximum Songs
36
USB
Type
Mini-B, USB 2.0
Physical
Dimensions
5.25” (L) x 3” (W) x 2.45” (H) / 133.4 mm (L) x 76.2 mm (W) x 62.2 mm (H)
Unit Weight
1.14 lb / 0.52 kg
Shipping Weight
1.92 lb / 0.87 kg
Power
Power Requirements
9 VDC external power adapter
Power Consumption
<5 W
Current Draw
500 mA
Power Adapter Model
PS0913DC-04 (US, JA, EU, AU, UK)
Power Adapter Output
9 VDC 1.3 A
