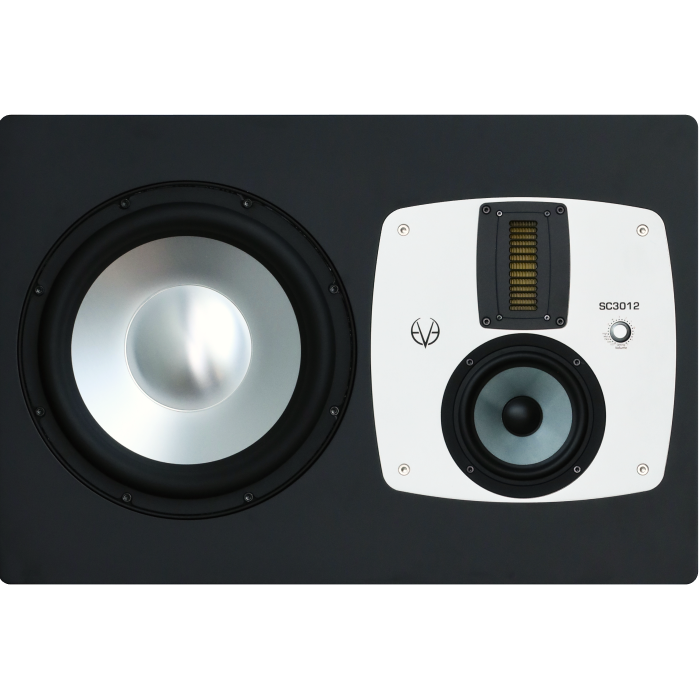

Eve Audio 3-Way 5-inch Mid + 12-inch + AMT 1,300-watt Active Monitor for Main

Full power with no compromise

Each driver is powered by its own custom specified PWM amplifier. Tweeter and midrange are supported with a 250 W amplifier each while the bass woofer is amplified with a bridged 800 W PWM module. All drivers are protected with a limiter detection circuit. With a maximum output level of 118 dB (SPL @ 1 m) you'll easily be able to judge your mixes precisely, whatever their intended output level is.

Simply put, the SC3012 is the perfect match of robustness and accuracy, where the whole becomes more than the sum of the parts. The SC3012 represents the pinnacle of EVE Audio engineering, our flagship model, and with good reason. This is the monitor you have been looking for.
As with every other EVE Audio speaker, you get both balanced XLR inputs and unbalanced RCA inputs for greater convenience.

Understanding the Air Motion Transformer

The Air Motion Transformer (AMT) is a unique driver technology, distinct from other audio drivers. It utilizes a lightweight, hand-folded diaphragm that is thinly coated with aluminum. The current of the music signal flows through these conductive strands.

The diaphragm is placed in a powerful magnetic field leading to movement in the folds caused by the Lorentz force. Due to the opposing direction of the current the walls of each single fold work against each other. The air between the folds is squeezed in and out at a ratio of 1:4, compared to the 1:1 ratio of a regular dome tweeter.

This results in higher resolution and dynamics in the tweeter section, along with a very low distortion level, allowing superior sound quality with enhanced detail and clarity.

SPECS

General
Tweeter - AMT RS6
Output power tweeter - 250 W
Mid-driver - 5"
Output power mid-driver - 250 W
Woofer - 12"
Output power woofer - 800 W
Protection limiter - Yes
Weight - 44 kg (97 lb)

Settings
Volume - - ∞ to + 6 dB
High-shelf filter (-5 dB to +3 dB) - > 3 kHz
Mid EQ (-3 dB to +3 dB) - 1 kHz
Desk filter cut (-5 dB to 0 dB) - 160 Hz
Desk filter boost (0 dB to +3 dB) - 80 Hz
Low-shelf filter (-5 dB to +3 dB) - < 300 Hz
Adjustable LED brightness - Yes
Level-lock dip switch - Yes
Filter-lock dip switch - Yes
Input level dip switch - +7 dBu / +22 dBu

Connectors (10k impedance)
RCA in
XLR in

Power consumption
Standby - < 1 W
Maximum - 1000 VA
