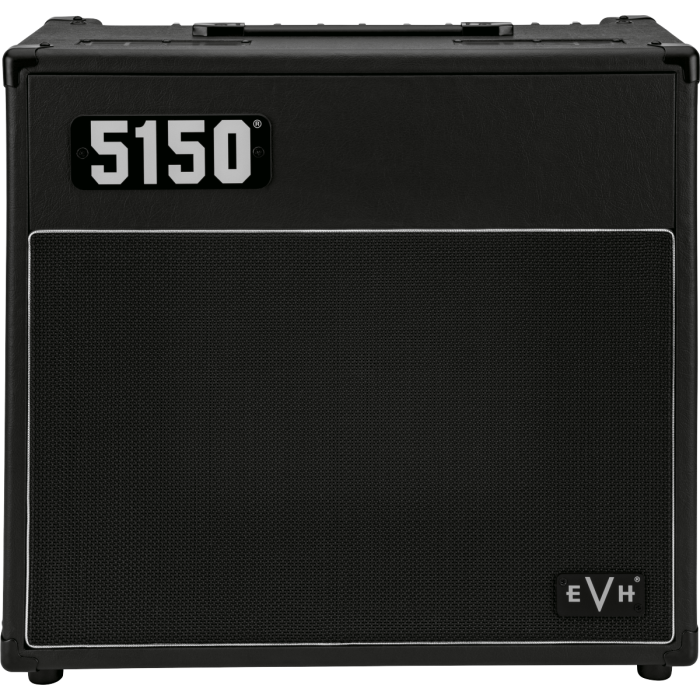

EVH 5150 Iconic Series 15W 1X10 Combo, Black, 120V

The EVH® 5150® Iconic® Series satisfies the needs of gigging and recording guitarists craving that powerful EVH tube tone at a more affordable price. Evolving from the revered and flagship EVH 5150III® amplifiers, the Iconic amplifiers deliver the searing sound and growling gain that Eddie Van Halen made famous.

Collaboratively designed by the EVH team and led by renowned amp engineer, James Brown, the 5150® Iconic® Series 15-watt 1x10 combo has a 6L6 power tube voiced by a complex, multi-stage hybrid preamp section anchored by a pair of ECC83 tubes, providing all the muscle you need for a modern-day practice amp. The cabinet features special internal plywood baffling for tight and increased bass response, and houses a custom-designed EVH 10" Celestion® speaker voiced specifically for this preamp circuit, so that the pristine cleans and searing high gain tones are tight, clear and articulate.

Punching above its weight, this combo features two channels with an extra voicing on each for even more versatility. The Green channel boasts an overdrive button to run from clean tones to increased gain, while the Red channel's burn button adds fiery crunch that's ideal for blistering leads.

Each channel houses its own gain and volume controls, allowing for level-matching the volume when switching between the clean and high gain channels. The control panel also includes shared EQ (Low, Mid and High), global resonance and presence knobs to adjust the low- and high-end aspects of your tone, and a global reverb control to add the perfect amount of bounce and decay for any room.

Other features include a one-button footswitch, effects loop, dual parallel speaker output jacks, ¼ power switch to reduce wattage - allowing you to crank the amp and still preserve tone but without destroying your neighbor's solitude. The 1/8" audio in allows for playing along with your favorite drum tracks or songs, while the 1/8" emulated cab headphone/recording out allows for accurate all-tube EVH tone while recording direct or using through any PA system.

Sporting distinctive EVH style, the 5150 Iconic Series 15W 1x10 combo is wrapped in either Black or Ivory textured vinyl with a black cloth front grille and features silver and black 5150 and EVH logo badges in the upper left and lower right corners. This all-tube combo is finished off with a brushed aluminum top panel, vintage-style chicken-head knobs and molded black plastic top handle.

Features

• 15-watt 1x10 combo
• Two channels: Green and Red; Green channel has overdrive button to go from clean to increased gain, while the Red channel has a burn button to go from lead to burn
• Dual Gain, Shared Low, Mid, High EQ, Dual Volume, Shared Global Reverb, Resonance and Presence controls
• ¼ Power level switch, standby switch, power switch and ground lift located on rear panel
• Selectable impedance (4, 8 or 16 ohms)
• Two ECC83 preamp tubes and one 6L6 power tube
• One 10" EVH® Celestion® Custom speaker
• 1/8" audio in and 1/8" emulated cab headphone/recording out
• Dual parallel speaker output jacks
• Effects loop
• One-button footswitch included
• Available in Black or Ivory with black cloth front grille and silver and black 5150® and EVH® logo badges

Specifications:

General
- Series: 5150® Iconic®
- Color: Black
- Amplifier Type: Tube
- Country Of Origin: CN

Electronics
- Control Panel: Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Shared Low, Mid, High EQ; Channel 1/Channel 2 Volume; Global Reverb, Resonance and Presence
- Inputs: One - 1/4"
- Auxiliary Input: 1/8 in (3.5 mm) Stereo
- Headphone Jack: 1/8" Stereo
- Line Out: One - (1/8" Stereo)
- Channels: Two - Clean/Overdrive and Lead/Burn
- Effects: Reverb
- Effects Loop: 1/4" (Send/Return)
- Connection Type: 1/4"
- Voltage: 120V
- Wattage: 15 Watts

Hardware
- Control Knobs: Black Chicken-Head Style Pointer
- Amplifier Covering: Textured Vinyl
- Cabinet Material: MDF w/ Plywood Baffle
- Grille Cloth: Black
- Handle: Molded Plastic Strap with Black Powder Coated Caps
- Amplifier Jewel: Red Jewel
- Speaker Jack: Two - 1/4" Parallel
- Front Panel: Brushed Aluminum

Speakers
- Speakers: One - 10" EVH® Celestion® Custom
- Speaker Wattage: 15 Watts
- Total Impedance: 4, 8, or 16 ohms

Tubes
- Power Tubes: 1 X 6L6
- Preamp Tubes: 2 x ECC83S
- Rectifier: Solid State

Measurements
- Dimensions: 14.40x22.00x23.50 IN
- Shipping Weight: 41.70 LB
- Product Depth: 10.25" (26.04 cm)
- Product Height: 18.5" (47.0 cm)
- Product Width: 19.69" (500 mm)
- Power Tubes: 1 X 6L6
- Shipping Length: 23.50 IN
- Shipping Height: 14.40 IN
- Shipping Width: 22.00 IN

Accessories
- Footswitch: 1-Button Footswitch Included

Miscellaneous
- Unique Features: 1/4 Power Level Switch
- Power Cable: IEC
