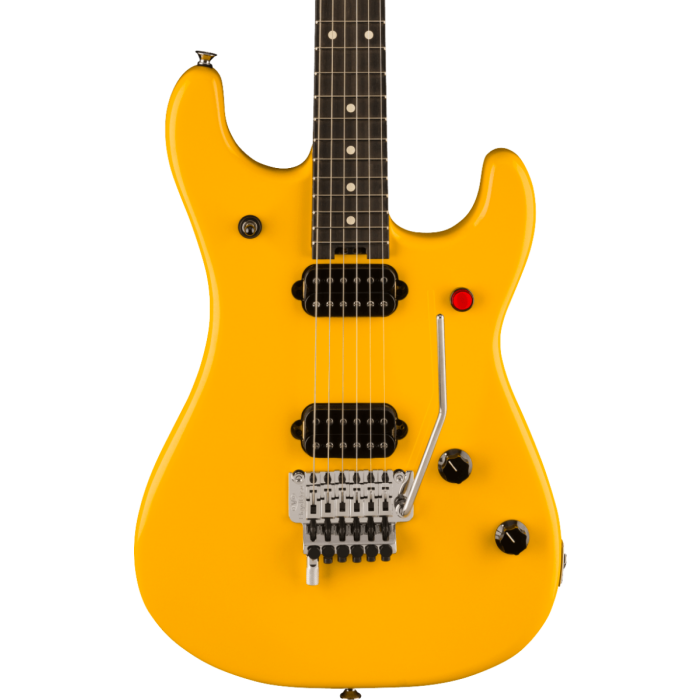

EVH 5150 Series Standard Electric Guitar. Ebony Fingerboard, EVH Yellow

Engineered for speed, comfort and full-throttle attitude, the reimagined 5150® Series Standard is an iconic blast from the past that blends both throwback and modernized features.

Like its predecessor, the 5150 Standard features a modified Strat®-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on quartersawn maple neck features a comfortable modified "C" profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and color matched "hockey stick" headstock with EVH® logo decal. Built for smooth and speedy playability, the 12"-16" compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays.

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 is outfitted with an HH pickup configuration controlled by a three-way toggle switch on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucker neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects - think "You Really Got Me."

Decked out with a "dive-bomb" certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

Features

• 25.5" scale length
• Modified Strat®-style basswood body with deeper upper body curve
• Graphite-reinforced bolt-on quartersawn maple neck
• Neck is carved and rolled to Eddie Van Halen's specifications with hand-rubbed satin urethane back finish
• 12"-16" compound radius ebony fingerboard with 22 jumbo frets and cream dot inlays
• Convenient heel-mount truss rod adjustment spoke wheel
• Direct mount EVH® Wolfgang® bridge and neck humbucking pickups
• Top-mount EVH-branded Floyd Rose® bridge and R3 locking nut
• EVH D-Tuna®
• Three-way toggle switch, kill switch, volume control (500K EVH Bourns® Low Friction Pot) with treble bleed circuit and tone control (250K EVH Bourns® High Friction Pot)

Specification:

General
- Series: 5150® Series Guitars
- Orientation: Right-Hand
- Color: EVH Yellow
- Country Of Origin: MX

Neck
- Headstock: EVH® Hockey Stick
- Material: Quartersawn Maple
- Finish: Hand-Rubbed Satin Urethane
- Shape: EVH® Modified "C" Backshape
- Construction: Bolt-On with Graphite Reinforcement
- Thickness: .790" at 3rd Fret & .810" at 12th Fret
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Ebony
- Position Inlays: Cream Dot
- Side Dots: Cream
- Number of Frets: 22
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- String Nut: Floyd Rose® R3 Locking
- Nut Width: 1.685" (42.8 mm)
- Nut Material: Floyd Rose® R3 Locking

Body
- Body: Basswood
- Finish: Gloss Urethane
- Shape: 5150™
- Material: Basswood

Hardware
- Bridge: Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
- Tremolo Block: Brass
- Pickup Covers: Black
- Control Knobs: Black Knurled with White Indicator
- Switch Tip: Black
- Hardware Finish: Black
- Tuning Machines: EVH®-Branded Gotoh®
- String Trees: Floyd Rose® Retainer Bar
- Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
- Tremolo Arm: Floyd Rose® 1000 Series Locking
- Neck Plate: 4-Bolt Standard
- Strap Buttons: Oversized

Electronics
- Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking
- Neck Pickup: Direct Mount EVH® Wolfgang® Humbucking
- Pickup Configuration: HH
- Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
- Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
- Auxiliary Switching: Kill Switch

Measurements
- Dimensions: 4.50x15.20x42.10 IN
- Shipping Weight: 11.45 LB
- Fret Size: Jumbo
- Scale Length: 25.5" (64.77 cm)
- Shipping Length: 42.10 IN
- Shipping Height: 4.50 IN
- Shipping Width: 15.20 IN

Accessories
- Included Accessories: Tremolo Arm, Hex Keys & User Manual
- Truss Rod Wrench: 2.5 mm Hex
