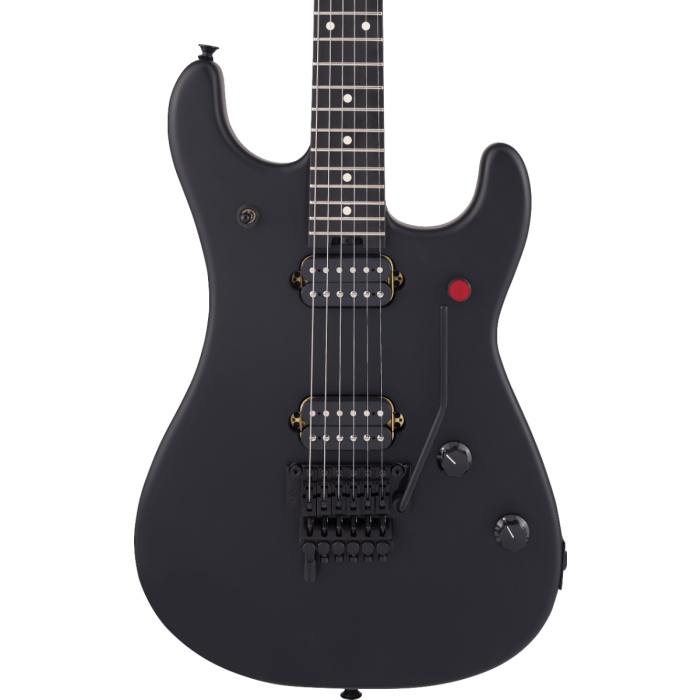

EVH 5150 Series Standard Electric Guitar. Ebony Fingerboard, Stealth Black

DESCRIPTION

Like its predecessor, the 5150 Standard features a modified Strat®-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on quartersawn maple neck features a comfortable modified "C" profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and color matched "hockey stick" headstock with EVH® logo decal. Built for smooth and speedy playability, the 12"-16" compound radius maple fingerboard has 22 jumbo frets and black dot inlays.

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 is outfitted with an HH pickup configuration controlled by a three-way toggle switch on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucker neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects - think "You Really Got Me."

Decked out with a "dive-bomb" certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna for switching back and forth from drop-D to standard tuning in an instant.

A high-octane, high performance axe, the 5150 Standard boasts screaming style in a Neon Pink finish with all-chrome hardware, including the EVH-branded Gotoh tuning machines.

FEATURES

• 25.5" scale length
• Modified Strat-style basswood body with deeper upper body curve
• Graphite-reinforced bolt-on quartersawn maple neck
• Neck is carved and rolled to Eddie Van Halen's specifications with a hand-rubbed satin urethane back finish
• 12"-16" compound radius ebony fingerboard with 22 jumbo frets and black dot inlays
• Convenient heel-mount truss rod adjustment spoke wheel
• Direct mount EVH Wolfgang bridge and neck humbucking pickups
• Top-mount EVH-branded Floyd Rose® bridge and R3 locking nut
• EVH D-Tuna
• Three-way toggle switch, kill switch, volume control (500K EVH Bourns Low Friction Pot) with treble bleed circuit and tone control (250K EVH Bourns High Friction)
• Available in Ice Blue Metallic or Stealth Black with color matched hockey stick headstock and all-black hardware, including the EVH-branded Gotoh tuning machines

BOLT-ON QUARTERSAWN MAPLE NECK WITH EDDIE VAN HALEN'S MODIFIED “C” BACKSHAPE
Bolt-on is a type of neck construction that joins the maple neck to the body of the guitar with screws or bolts, resulting in bright tone with more control. The quartersawn grain runs the length of the neck and as well as being visually appealing, is less susceptible to shrinking, warping or splitting. Graphite-reinforcement rods flank the truss rod for even more increased neck stability, while your fretting hand will feel right at home on the modified “C”-shape neck, which has a .790” thickness at the 3rd fret and .825” at the 12th fret.

12"-16" COMPOUND RADIUS EBONY FINGERBOARD
The innovative 12"-16" compound radius design features a fingerboard that gradually flattens toward the heel from its smaller and more rounded profile at the nut. This makes for unparalleled comfortable chording and riffing near the nut and precise shred articulation and bending near the heel. A premium wood, ebony has very tight wood grains and creates a slick and fast-playing surface. Ebony fingerboards are known for their clear and crisp attack, and favored by guitarists looking for sharp top end, pleasing brightness and articulate mid-range.

HEEL-MOUNT TRUSS ROD ADJUSTMENT SPOKE WHEEL
Humidity and temperature fluctuations wreak havoc on a guitar’s neck. With the truss rod adjustment wheel placed at the heel of the neck, you (or your guitar tech) can quickly insert a 1.5 mm Allen wrench between the strings for seamless neck relief tweaks on the fly.

EVH-BRANDED FLOYD ROSE LOCKING TREM, R3 LOCKING NUT AND EVH D-TUNA
Eddie Van Halen was the first player to popularize the innovative Floyd Rose locking tremolo, even advising Floyd Rose on his early designs to integrate round disc finger-type tuners that you would see on a cello or violin. Now universally embraced, our EVH-branded Floyd Rose bridge features our EVH logo stamped on the bridge plate, steel saddles and a solid brass block. The Floyd Rose bridge and R3 (43 mm) locking nut is a professional-grade double-locking design that secures the strings in the saddle and nut, providing ultimate tuning stability and dynamic tremolo action. Standard equipment on Eddie’s personal guitars since the early ‘90s, the EVH D-Tuna is a unique patented device that enables players to drop the E to D and back, in an instant.

VERSATILE CONTROL LAYOUT & SWITCHING
Explore the tonal landscape with the upper bout three-way toggle switch, which in position one engages the bridge pickup for robust rhythm riffing. Position two engages both pickups, while position three’s neck pickup provides a warmer tone for leads. The volume knobs houses a 500K EVH Bourns low friction pot with treble bleed circuit for seamless swells, while the tone control with 250K EVH Bourns high friction pot will stay in place even if accidentally nudged. A killswitch on the lower bout blocks the signal from the guitar to the amp, temporarily stopping noise output as long as the switch is pressed down. This feature adds an expressive stutter, rhythmic effect to performances.

SPECS

General
SERIES5 - 150 Series Guitars
ORIENTATION - Right-Hand
COLOR - Stealth Black
COUNTRY OF ORIGIN - MX

Neck
HEADSTOCK - EVH Hockey Stick
NECK MATERIAL - Quartersawn Maple
NECK FINISH - Hand-Rubbed Satin Urethane
NECK SHAPE - EVH Modified "C" Backshape
NECK CONSTRUCTION - Bolt-On with Graphite Reinforcement
NECK THICKNESS - .790" at 3rd Fret & .810" at 12th Fret
FINGERBOARD RADIUS - 12"-16" Compound Radius (304.8 mm to 406.4 mm)
FINGERBOARD MATERIAL - Ebony
POSITION INLAYS - Cream Dot
SIDE DOTS - Cream
NUMBER OF FRETS - 22
TRUSS ROD NUT - Heel-Mount Truss Rod Adjustment Wheel
STRING NUT - Floyd Rose R3 Locking
NUT WIDTH - 1.685" (42.8 mm)

Body
BODY - Basswood
BODY FINISH - Gloss Urethane
BODY SHAPE5 - 150™
BODY MATERIAL - Basswood

Hardware
BRIDGE 0 Top-Mount EVH-Branded Floyd Rose Locking Tremolo with EVH® D-Tuna
TREMOLO BLOCK - Brass
PICKUP COVERS - Black
CONTROL KNOBS - Black Knurled with White Indicator
SWITCH TIP - Black
HARDWARE FINISH - Chrome
TUNING MACHINES - EVH-Branded Gotoh
STRING TREES - Floyd Rose Retainer Bar
STRINGSE - VH Nickel Plated Steel (.009-.042 Gauges)
TREMOLO ARM - Floyd Rose 1000 Series Locking
NECK PLATE - 4-Bolt Standard
STRAP BUTTONS - Oversized

Electronics
BRIDGE PICKUP - Direct Mount EVH Wolfgang Humbucking
NECK PICKUP - Direct Mount EVH Wolfgang Humbucking
PICKUP CONFIGURATIONHH
CONTROLS -Volume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH Bourns High Friction Pot)
SWITCHING - 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
AUXILIARY SWITCHING - Kill Switch

Measurements
DIMENSIONS - 4.50x15.20x42.10 IN
SHIPPING WEIGHT - 16.15 LB
FRET SIZE - Jumbo
SCALE LENGTH - 25.5" (64.77 cm)
SHIPPING LENGTH - 42.10 IN
SHIPPING HEIGHT - 4.50 IN
SHIPPING WIDTH - 15.20 IN

Accessories
INCLUDED ACCESSORIES - Tremolo Arm, Hex Keys & User Manual
TRUSS ROD WRENCH - 2.5 mm Hex

Miscellaneous
COMMODITY CODE - 9207901000
