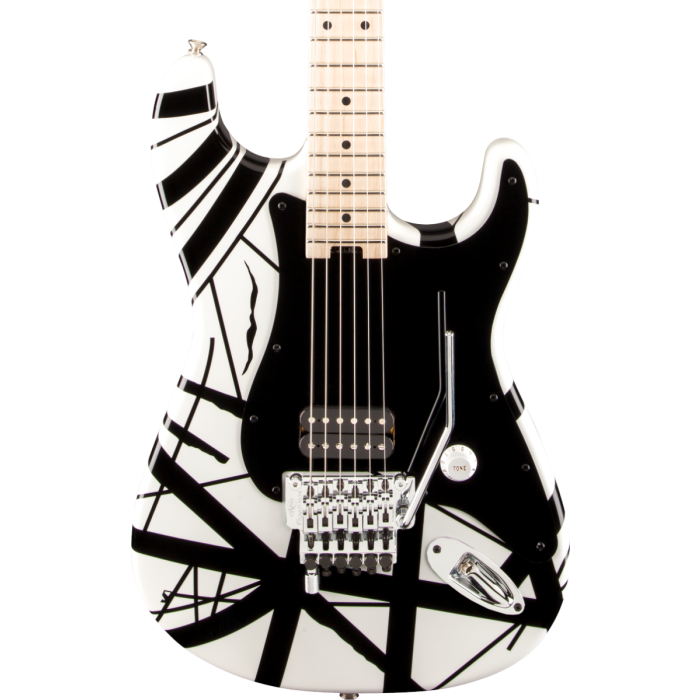

EVH Striped Series Electric Guitar. White with Black Stripes
$1,149.99
In stock
SKU
EVH-5107902576
Brand New. Not available for curbside pickup. Online orders only.
With a career of being copied, the EVH Striped Series guitars put Eddie Van Halen's historic and authentic style in your hands ... These are high powered, high-performance machines as kickbutt to look at as they are to play.
The Striped Series guitar features a basswood Stratocaster®-style body decked out in Eddie's famed striped graphics - Red with Black Stripes, Black with Yellow Stripes and White with Black Stripes.
These unique guitars also have a graphite-reinforced bolt-on quartersawn maple neck with a hand-rubbed oil finish on the back, 12"-16" maple fingerboard with 22 jumbo frets and black dot inlays and a thumbwheel truss rod adjustment wheel for convenient neck relief tweaks.
Powered by a single ferocious direct-mount Wolfgang® humbucking bridge pickup, the Striped Series guitars also feature a single skirted Strat-style volume control knob (labeled "tone") that houses a 500K EVH® Bourns® low friction pot with treble bleed circuit, single-ply black pickguard (White with Black Stripes model only), bar string retainer and Floyd Rose® locking nut, EVH-branded Floyd Rose® locking tremolo with EVH D-Tuna®, EVH die-cast tuners, chrome hardware, vintage-style strap buttons, EVH neck plate and licensed Fender® Strat® headstock. The White with Black Stripes model also features a top-mount output jack.
Features
- Iconic Design: Basswood body with Eddie Van Halen's signature striped graphics.
- Smooth Playability: Quartersawn maple neck with graphite reinforcement, rolled fingerboard edges, and a hand-rubbed satin urethane finish.
- Versatile Tone: Direct-mount EVH Wolfgang® humbucking bridge pickup for searing leads and thick rhythms.
- Performance-Ready Hardware: EVH-branded Floyd Rose® locking tremolo with EVH D-Tuna®, and oversized strap buttons.
- Vintage Aesthetic: Includes a black pickguard (on the White with Black Stripes model) and a vintage-style Strat headstock.
Specifications
General
- Series: Striped Series
- Orientation: Right-Hand
- Color: White with Black Stripes
- Country of Origin: Mexico
Neck
- Headstock: Licensed Fender® Stratocaster®
- Neck Material: Quartersawn Maple
- Neck Finish: Hand-Rubbed Satin Urethane
- Neck Shape: EVH® Modified "C" Backshape
- Neck Construction: Bolt-On with Graphite Reinforcement
- Neck Thickness: .790" at 3rd Fret, .810" at 12th Fret
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Maple
- Position Inlays: Black Dot
- Number of Frets: 22
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- String Nut: Floyd Rose® R3 Locking
- Nut Width: 1.6875" (42.86 mm)
Body
- Body Material: Basswood
- Body Finish: Gloss Urethane
- Body Shape: Stratocaster®-Style
Hardware
- Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
- Tremolo Block: Brass
- Pickguard: 1-Ply Black (White with Black Stripes model only)
- Pickup Covers: Black
- Control Knobs: White Strat-Style Knob (Labeled "Tone")
- Hardware Finish: Chrome
- Tuning Machines: EVH®-Branded Gotoh®
- String Trees: Floyd Rose® Retainer Bar
- Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
- Tremolo Arm: Floyd Rose® 1000 Series Locking
- Neck Plate: 4-Bolt Standard
- Strap Buttons: Oversized
Electronics
- Bridge Pickup: EVH® Wolfgang® Humbucking
- Pickup Configuration: H
- Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
- Switching: None
Measurements
- Scale Length: 25.5" (648 mm)
- Fret Size: Jumbo
- Dimensions: 4.50 x 15.30 x 42.20 IN
- Shipping Weight: 11.30 LB
- Shipping Length: 42.20 IN
- Shipping Height: 4.50 IN
- Shipping Width: 15.30 IN
Accessories
- Included Accessories: Tremolo Arm, Hex Keys & User Manual
- Truss Rod Wrench: 2.5 mm Hex
Miscellaneous
- Disclaimer: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Commodity Code: 9207901000
