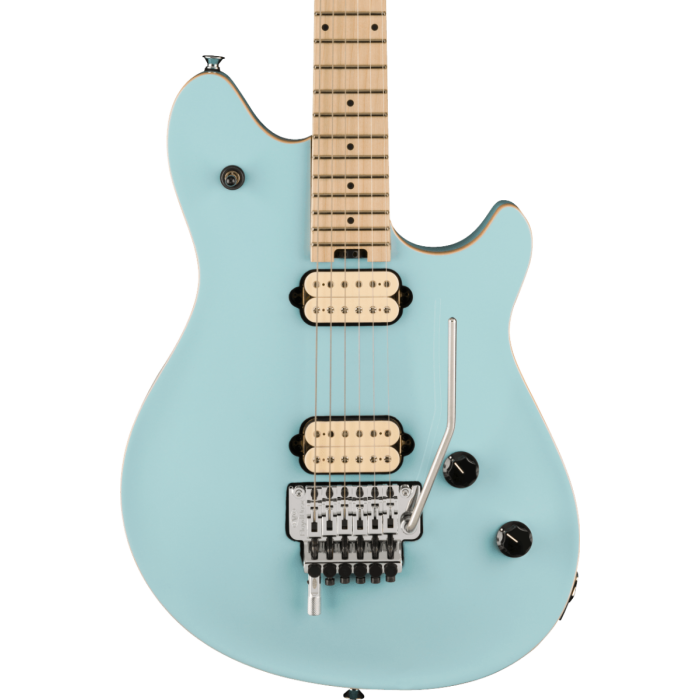

EVH Wolfgang Special Electric Guitar. Maple Fingerboard, Sonic Boom

Road-tested in arenas around the world, the Wolfgang® Special is a purebred music-making machine, designed with stunning style, giant sound and high-speed playability.

The Wolfgang Special features a basswood body with an arched top and a robust graphite-reinforced bolt-on quartersawn maple neck. The neck is carved and rolled to Eddie Van Halen's exacting specifications and features a hand-rubbed urethane back finish. Primed for high performance, energetic riffing and blazing leads, the 12"-16" compound radius maple fingerboard has 22 jumbo frets and black dot inlays. Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck.

A pair of flagship custom designed black EVH® Wolfgang Alnico 2 humbucking pickups are mounted directly to the body, providing dynamic yet articulate voicing, as well as endless sustain for powerful chords and melody lines. A sturdy and dependable EVH-branded Floyd Rose® locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger. The volume knob with treble bleed circuit has a 500K EVH Bourns® low friction pot for smooth swells and a tone control knob with a 250K Bourns high friction tone pot that prevents accidental tone shifting.

Features

• 25.5" scale length
• Basswood body with arched top
• Graphite-reinforced bolt-on quartersawn maple neck
• Neck is carved and rolled to Eddie Van Halen's specifications with hand-rubbed satin urethane back finish
• 12"-16" compound radius maple fingerboard with 22 jumbo frets and black dot inlays
• Convenient heel-mount truss rod adjustment spoke wheel
• Direct mount EVH® Wolfgang® bridge and neck humbucking pickups
• EVH-branded Floyd Rose® locking trem and Floyd Rose locking nut
• EVH D-Tuna®
• Three-way toggle switch, EVH volume control (500K EVH Bourns® Low Friction Pot) with treble bleed circuit and tone control (250K EVH Bourns® High Friction)

Specifications:

General
- Series: Wolfgang® Special
- Orientation: Right-Hand
- Color: Sonic Boom
- Country Of Origin: MX

Neck
- Headstock: EVH® Wolfgang®
- Material: Quartersawn Maple
- Finish: Hand-Rubbed Satin Urethane
- Shape: Wolfgang® Backshape
- Construction: Bolt-On with Graphite Reinforcement
- Thickness: .805" at 3rd & .890" at 12th Fret
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Maple
- Position Inlays: Black Dot
- Side Dots: Black
- Number of Frets: 22
- Truss Rod: EVH®-Branded with Wheel
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- String Nut: Floyd Rose® R2 Locking
- Nut Width: 1.625" (41.3 mm)
- Nut Material: Floyd Rose® R2 Locking

Body
- Body: Arched Basswood
- Finish: Gloss Polyurethane
- Shape: Wolfgang®
- Binding: 1-Ply Cream
- Material: Arched Basswood

Hardware
- Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
- Tremolo Block: Brass
- Control Knobs: Black Plastic with White Indicator
- Hardware Finish: Chrome
- Tuning Machines: EVH®-Branded Gotoh®
- String Trees: Floyd Rose® Retainer Bar
- Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
- Tremolo Arm: Floyd Rose® 1000 Series Locking
- Strap Buttons: Oversized

Electronics
- Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking
- Neck Pickup: Direct Mount EVH® Wolfgang® Humbucking
- Pickup Configuration: HH
- Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
- Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Measurements
- Dimensions: 4.50x15.20x42.10 IN
- Shipping Weight: 11.45 LB
- Fret Size: Jumbo
- Scale Length: 25.5" (64.77 cm)
- Shipping Length: 42.10 IN
- Shipping Height: 4.50 IN
- Shipping Width: 15.20 IN

Accessories
- Included Accessories: Tremolo Arm, Hex Keys & User Manual
- Saddle Height Wrench: N/A
- Truss Rod Wrench: 2.5 mm Hex
