Fender 50s Modified Esquire Neck, 22 Narrow Tall Frets, 9.5 inch, U Shape, Roasted Maple TGF33
Brand new. Not available for curbside pickup. Online orders only.
Mint, Perfect, Open Box with Full Fender Warranty
There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice. This roasted maple Modified Esquire neck has the back shape of an early 50's Esquire but with a flatter fingerboard radius and larger frets for modern playability.

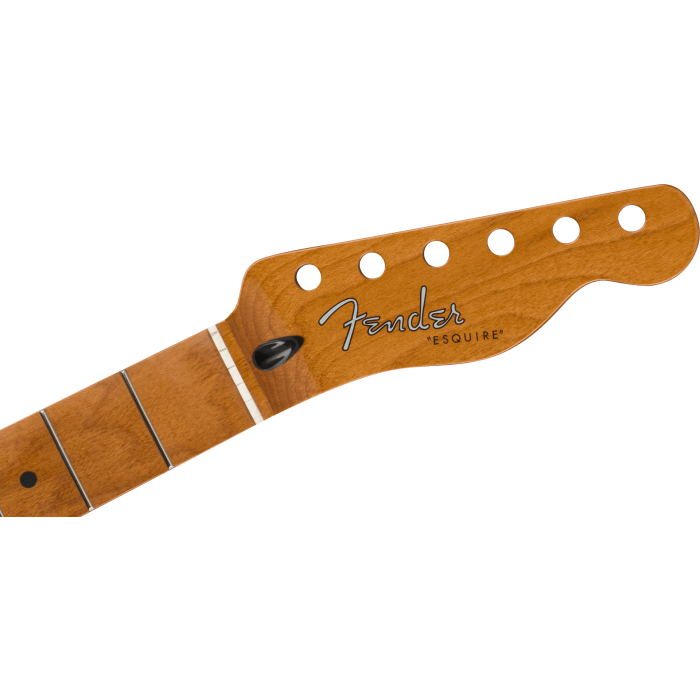

Fender replacement necks are made at Fender manufacturing facilities to the same specifications as those used on our instruments. This Ensenada, Mexico-made Esquire neck features a maple fingerboard, a 9.5" radius and 22 narrow tall frets. The one-piece roasted maple neck has a thick early 50's "U" profile with a smooth satin urethane finish on the front and back of the neck. The headstock has a gloss finish with an authentic "Esquire" decal to complete the classic look.
The bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing. For true Fender authenticity, it's also serialized and stamped, with genuine headstock logo decal.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Features
- One-piece roasted maple neck with walnut "skunk" stripe
- Roasted maple fingerboard with 9.5" radius
- 22 narrow tall frets
- Pre-slotted bone nut
- Standard truss rod
- Six two-guide-pin tuning machine holes
Specifications:
General
- Series: Fender® Parts
- Orientation: Right-Hand
- Color: Natural
- Instrument Type: Esquire®
- Country of Origin: Mexico
Neck
- Neck Material: Roasted Maple
- Neck Finish: Satin Urethane with Gloss Urethane Headstock Face
- Neck Shape: Early '50s "U"
- Neck Thickness:
- 1st Fret: .880” (22.35 mm)
- 12th Fret: .990” (25.15 mm)
- Neck Mounting: 4-Bolt
- Fingerboard Radius: 9.5" (241 mm)
- Fingerboard Material: Roasted Maple
- Position Inlays: Black Dot
- Side Dots: Black Micarta, 3/32" (2.38 mm)
- Number of Frets: 22
- Truss Rod: Standard
- Truss Rod Nut: 3/16" Hex Adjustment
- String Nut: Bone
- Nut Width: 1.650" (42 mm)
- Nut Material: Bone
Hardware
- Tuner Mounting Configuration: Dual Guide Pin
Measurements
- Scale Length: 25.5" (64.77 cm)
- Fret Size: Narrow Tall
- Headstock Thickness: .540" (13.71 mm)
- Peg Hole Diameter: .397" (10.08 mm)
- Dimensions: 3.20 x 7.00 x 30.00 IN
- Shipping Weight: 2.95 LB
- Shipping Length: 30.00 IN
- Shipping Height: 3.20 IN
- Shipping Width: 7.00 IN
Miscellaneous
- Disclaimer: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Commodity Code: 9209940000
The Fender® Roasted Maple Esquire® Neck is the perfect addition to your Esquire® or Telecaster® build, combining vintage charm with modern craftsmanship. Whether upgrading your instrument or starting a new project, this neck offers exceptional playability, tone, and style.
