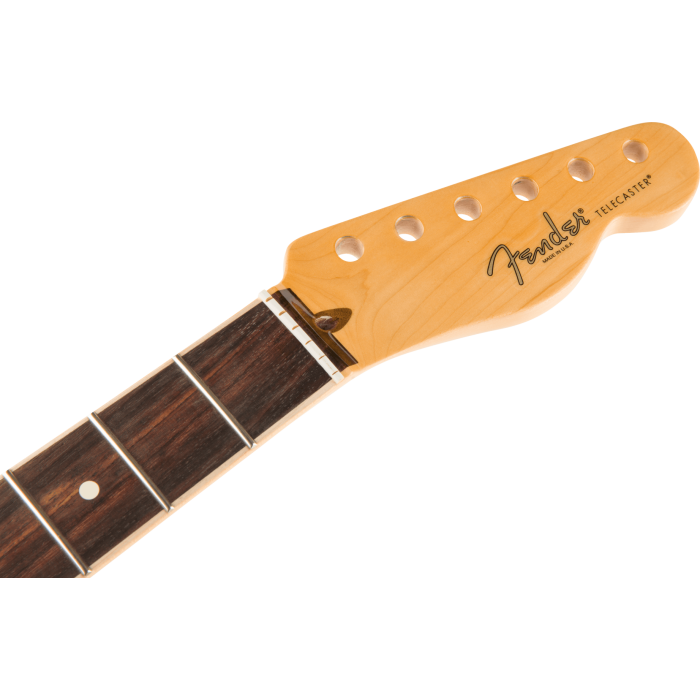

Fender American Channel Bound Telecaster Neck, 21 Med Jumbo Frets, Rosewood
Brand New. Not available for curbside pickup. Online orders only.
ADD A TOUCH OF ELEGANCE
Crafted in the same facility as our U.S.-made instruments, the Channel-Bound Telecaster® Neck combines a uniquely elegant aesthetic with a distinctively smooth fret-hand feel. The "channel-bound" fingerboard is a unique Fender innovation whereby the fingerboard is directly inlaid into the neck, eliminating the side seams while combining slick style with astounding fret-hand feel. The 9.5"-14" compound-radius rosewood fingerboard is more rounded towards the nut for easy chording, while the flatter radius in the upper register allows wide bends without fretting out. The comfortably rounded fingerboard edges and "Modern C"-shaped profile are ideal for any playing style.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the “Support” section of fender.com.
FEATURES
- Maple Telecaster neck w/ walnut stripe
- Channel-bound 9.5”-14” compound-radius fingerboard
- 21 medium jumbo frets; vintage ivory inlays
- Hand-rubbed polyurethane finish with gloss headstock
- Pre-slotted synthetic bone nut; Bi-Flex™ truss rod
- Six two-guide-pin tuning machine holes; requires 4-bolt neck plate
GENERAL
-
Neck ShapeModern "C"
-
Tuner Mounting ConfigDual Guide Pin
MATERIALS
-
Fingerboard MaterialRosewood
-
Neck MaterialMaple
-
Nut MaterialSynthetic Bone
-
Position InlaysVintage Ivory Dots
-
Neck FinishSatin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
-
Truss Rod Nut1/8" Hex Adjustment
-
Truss RodBi-Flex™
MEASUREMENTS
-
Fingerboard Radius9.5" to 14" Compound Radius (241 mm-355.6 mm)
-
Scale Length25.5" (648 mm)
-
Nut Width1.6875" (42.86 mm)
-
Number of Frets21
-
Fret SizeMedium Jumbo
-
Headstock Thickness.540" (13.71 mm)
-
Neck Thickness1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
-
Peg Hole Diameter.404” (10.26 mm)
