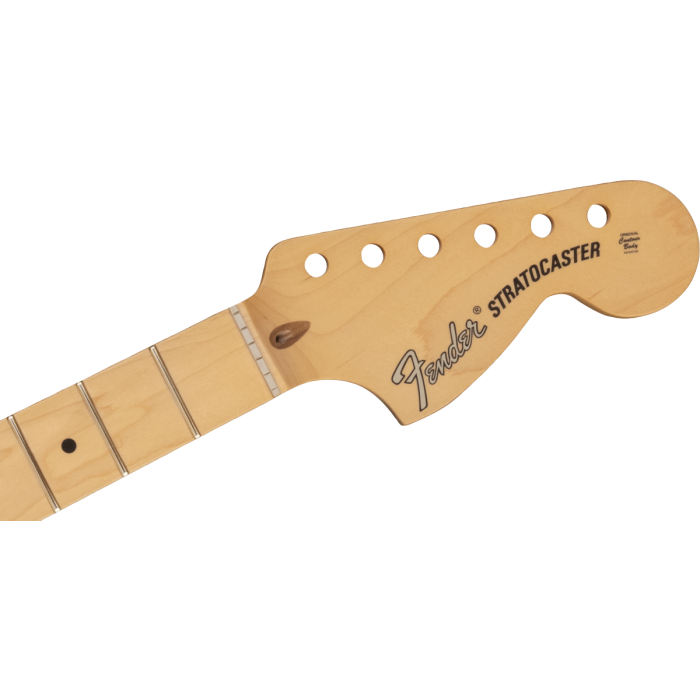

Fender American Performer Stratocaster Neck, 22 Jumbo Frets, 9.5 inch Radius, Maple
Brand new. Not available for curbside pickup. Online orders only.
Crafted in the same facility as our U.S.-made instruments, the American Performer Stratocaster Neck works well with almost any playing style. Features include our comfortable "Modern C" neck profile with a satin urethane finish that give it a smooth, fast playing feel. A large, '70's era headstock adds mass and sustain and 22 jumbo frets make it easier to achieve wide, expressive bends.
This replacement neck is for a Fender or Squier by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures.
FEATURES
- Maple neck w/ walnut stripe
- Large '70s headstock
- Maple fingerboard with 9.5" radius
- 22 jumbo frets
- Pre-slotted synthetic bone nut
- Six two-guide-pin tuning machine holes
SPECS
GENERAL
-
Neck ShapeModern "C"
-
Tuner Mounting ConfigDual Guide Pin
MATERIALS
-
Fingerboard MaterialMaple
-
Neck MaterialMaple
-
Nut MaterialSynthetic Bone
-
Position InlaysBlack Dot
-
Neck FinishSatin Urethane
-
Truss Rod Nut1/8" Hex Adjustment
-
Truss RodStandard
MEASUREMENTS
-
Fingerboard Radius9.5" (241 mm)
-
Scale Length25.5" (64.77 cm)
-
Nut Width1.685" (42.8 mm)
-
Number of Frets22
-
Fret SizeJumbo
-
Headstock Thickness.404” (10.26 mm)
-
Neck Thickness1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
-
Peg Hole Diameter.404” (10.26 mm)
