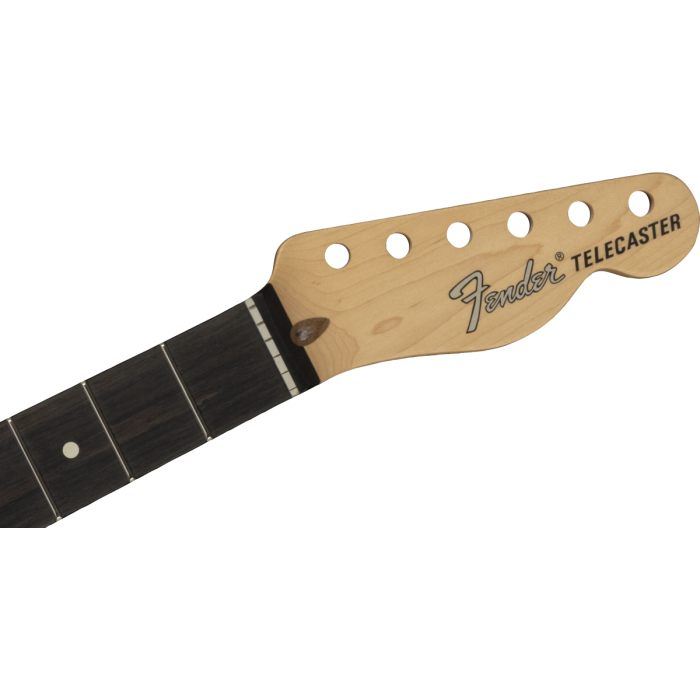

Fender American Performer Telecaster Neck, 22 Jumbo Frets, 9.5 inch Radius, Rosewood
Brand new. Not available for curbside pickup. Online orders only.
DESCRIPTION
Crafted in the same facility as our U.S.-made instruments, the American Performer Telecaster Neck works well with almost any playing style. Features include our comfortable "Modern C" neck profile with a satin urethane finish that give it a smooth, fast playing feel. A large, '70's era headstock adds mass and sustain and 22 jumbo frets make it easier to achieve wide, expressive bends.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
FEATURES
- Maple neck w/ walnut stripe
- Large '70s headstock
- Maple fingerboard with 9.5" radius
- 22 jumbo frets
- Pre-slotted synthetic bone nut
- Six two-guide-pin tuning machine holes
SPECS
General
SERIES - Necks
ORIENTATION - Right-Hand
COLOR - Natural
INSTRUMENT TYPE - Telecaster®
COUNTRY OF ORIGIN - US
Neck
NECK MATERIAL - Maple
NECK FINISH - Satin Urethane
NECK SHAPE - Modern "C"
NECK THICKNESS - 1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
NECK MOUNTING - 4-Bolt
FINGERBOARD RADIUS - 9.5" (241 mm)
FINGERBOARD MATERIAL - Rosewood
POSITION INLAYS - White Dot
SIDE DOTS - White
NUMBER OF FRETS - 22
TRUSS ROD - Standard
TRUSS ROD NUT - 1/8" Hex Adjustment
STRING NUT - Synthetic Bone
NUT WIDTH - 1.685" (42.8 mm)
NUT MATERIAL - Synthetic Bone
Hardware
TUNER MOUNTING CONFIG - Dual Guide Pin
Measurements
DIMENSIONS - 3.30x7.20x30.00 IN
SHIPPING WEIGHT - 2.80 LB
HEADSTOCK THICKNESS - .540” (13.71 mm)
PEG HOLE DIAMETER - .404” (10.26 mm)
FRET SIZE - Jumbo
SCALE LENGTH - 25.5" (64.77 cm)
SHIPPING LENGTH - 30.00 IN
SHIPPING HEIGHT - 3.30 IN
SHIPPING WIDTH - 7.20 IN
Miscellaneous
COMMODITY CODE - 9209940000
