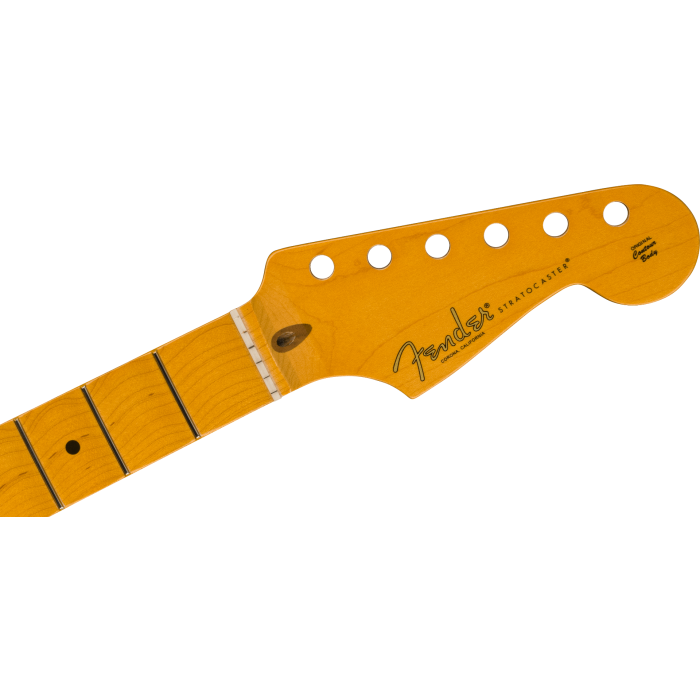

Fender American Professional II Scalloped Stratocaster Neck, 22 Narrow Tall Frets, 9.5 inch Radius, Maple

DESCRIPTION

Iconic players from around the globe have always known the secret to Stratocaster shredding…the scalloped fingerboard. A scalloped fingerboard allows your fingers to make contact only with the strings and not with the wood of the fingerboard itself. This allows a lighter touch, greater speed and improved grip on the strings, facilitating effortless string bending, pull offs and tapping technique.

Crafted at our Corona, Calif. manufacturing facility, this genuine Fender American Pro II Scalloped Stratocaster guitar neck features a Deep "C"-shaped profile and 9.5"-radius maple or rosewood fingerboard with 22 narrow-tall frets.

This replacement neck is for a Fender or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.

FEATURES

• Stratocaster neck with scalloped fingerboard
• 9.5"-radius maple or rosewood fingerboard
• 22 narrow-tall frets
• Satin urethane "super natural" back finish with gloss headstock
• Pre-slotted bone nut
• Bi-Flex™ truss rod adjustment

SPECS

General
SERIES - Fender® Parts
ORIENTATION - Right-Hand
COLOR - Natural
INSTRUMENT TYPE - Stratocaster®
COUNTRY OF ORIGIN - US

Neck
NECK MATERIAL - Maple with Walnut Stripe
NECK FINISH - “Super-Natural” Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
NECK SHAPE - Deep "C"
NECK THICKNESS - 1st Fret - .820" (20.82 mm), 12th Fret - .920" (22.86 mm)
NECK MOUNTING - 4-Bolt
FINGERBOARD RADIUS - 9.5" (241 mm)
FINGERBOARD MATERIAL - Scalloped Maple
POSITION INLAYS - Black Dot
SIDE DOTS - Black
NUMBER OF FRETS - 22
TRUSS ROD - Bi-Flex™
TRUSS ROD NUT - 1/8" Hex Adjustment
STRING NUT - Bone
NUT WIDTH - 1.685" (42.8 mm)
NUT MATERIAL - Bone

Hardware
TUNER MOUNTING CONFIG - Dual Guide Pin

Measurements
DIMENSIONS - 3.30x7.20x30.00 IN
SHIPPING WEIGHT - 2.80 LB
HEADSTOCK THICKNESS - .540” (13.71 mm)
PEG HOLE DIAMETER - .404” (10.26 mm)
FRET SIZE - Narrow Tall
SCALE LENGTH - 25.5" (64.77 cm)
SHIPPING LENGTH - 30.00 IN
SHIPPING HEIGHT - 3.30 IN
SHIPPING WIDTH - 7.20 IN

Miscellaneous
COMMODITY CODE - 9209940000
