Fender Classic Series 50's Telecaster Neck, 21 Vintage Frets, Maple
Brand New. Not available for curbside pickup. Online orders only.

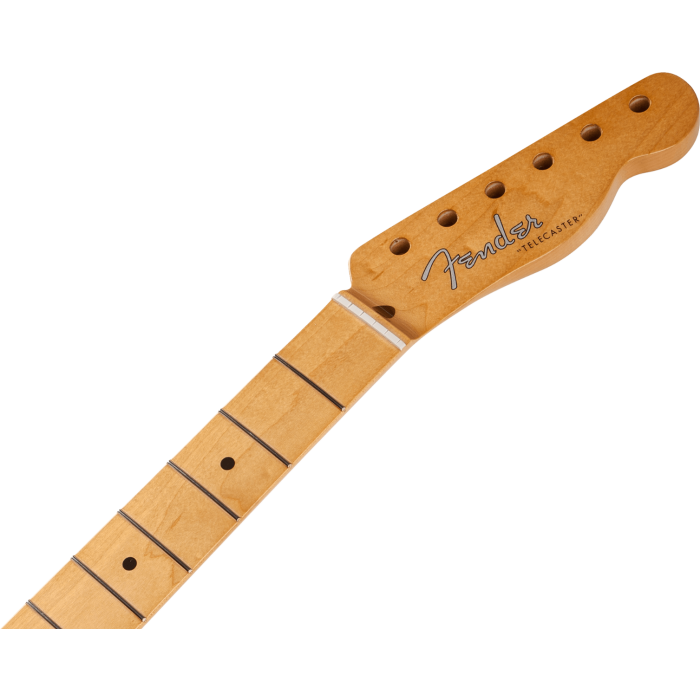

Crafted at our Ensenada, Mexico, manufacturing facility, this genuine vintage-style Fender Telecaster® guitar maple neck features a comfortable vintage "C" profile and 7.25"-radius maple fingerboard with 21 vintage-style frets.
The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a gloss urethane finish on the back offers smooth playability.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you.
Features
- Maple neck with walnut "skunk" stripe
- Maple fingerboard with 7.25" radius
- 21 vintage-style frets
- Pre-slotted synthetic bone nut
- 3/16" truss rod nut
- Six tuning machine holes designed to fit vintage-style two-screw-mount tuning machines
Classic Series 50's Telecaster® Neck, 21 Vintage Frets, Maple
GENERAL
- Series: Necks
- Orientation: Right-Hand
- Color: Natural
- Instrument Type: Telecaster®
- Country Of Origin: MX
NECK
- Neck Material: Maple
- Neck Finish: Gloss Urethane
- Neck Shape: Vintage "C"
- Neck Thickness: 1st Fret - .820" (20.82 mm), 12th Fret - .920" (23.36 mm)
- Neck Mounting: 4-Bolt
- Fingerboard Radius: 7.25" (184.1 mm)
- Fingerboard Material: Maple
- Position Inlays: Black Dot
- Number of Frets: 21
- Truss Rod: Vintage-Style Butt Adjust
- Truss Rod Nut: Vintage-Style Slotted
- String Nut: Synthetic Bone
- Nut Width: 1.650" (42 mm)
- Nut Material: Synthetic Bone
HARDWARE
- Tuner Mounting Config: Vintage-style 2-screw
MEASUREMENTS
- Dimensions: 3.20x7.10x30.00 IN
- Shipping Weight: 2.45 LB
- Headstock Thickness: .540” (13.71 mm)
- Peg Hole Diameter: .358” (9.09 mm)
- Fret Size: Vintage-Style
- Scale Length: 25.5" (64.77 cm)
- Shipping Length: 30.00 IN
- Shipping Height: 3.20 IN
- Shipping Width: 7.10 IN
MISCELLANEOUS
- Style: Vintage-Style
- Unique Features: Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)
