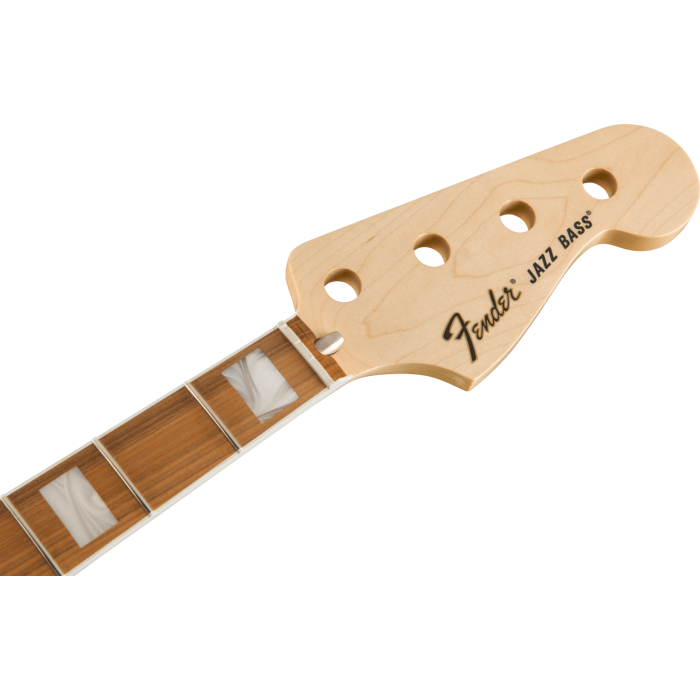

Fender Classic Series 70's Jazz Bass Neck, 20 Medium Jumbo Frets, Block Inlay, Pau Ferro

DESCRIPTION

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.

FEATURES

7.25"-radius pau ferro fingerboard
"C"-shaped neck profile
20 medium-jumbo frets; block inlays
Pre-slotted synthetic bone nut
Gloss urethane finish

SPECS

General
SERIES - Necks
ORIENTATION- Right-Hand
COLOR- Natural
INSTRUMENT TYPE - Jazz Bass
COUNTRY OF ORIGIN - MX

Neck
NECK MATERIAL - Maple
NECK FINISH - Gloss Urethane
NECK SHAPE - '70s "C"
NECK THICKNESS - 2nd Fret - .820" (20.82 mm), 12th Fret - .920" (23.36 mm)
NECK MOUNTING- 4-Bolt
FINGERBOARD RADIUS - 7.25" (184.1 mm)
FINGERBOARD MATERIAL- Pau Ferro
POSITION INLAYS - Pearloid Block
NUMBER OF FRETS - 20
TRUSS ROD - Standard
TRUSS ROD NUT - Bullet Style
STRING NUT- Synthetic Bone
NUT WIDTH - 1.5" (38.1 mm)
NUT MATERIAL - Synthetic Bone

Hardware
TUNER MOUNTING CONFIG - Vintage-style 4-screw

Measurements
DIMENSIONS - 3.20x7.00x37.25 IN
SHIPPING WEIGHT - 3.65 LB
HEADSTOCK THICKNESS - .540” (13.71 mm)
PEG HOLE DIAMETER - .625” (15.87 mm)
FRET SIZE - Vintage-Style
SCALE LENGTH - 34" (86.36 cm)
SHIPPING LENGTH - 37.25 IN
SHIPPING HEIGHT - 3.20 IN
SHIPPING WIDTH - 7.00 IN

Miscellaneous
COMMODITY CODE - 9209940000
STYLE - Vintage-Style
UNIQUE FEATURES - Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)
