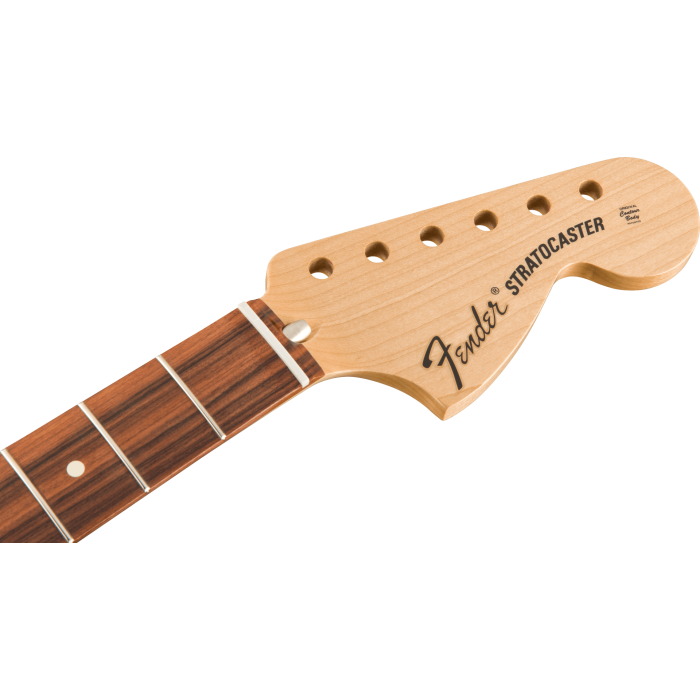

Fender Classic Series '70s Stratocaster "U" Neck, 3-Bolt Mount, 21 Vintage-Style Frets, Pau Ferro FB

$299.99

In stock

SKU

FEN-997003921

Brand New. Not available for curbside pickup. Online orders only.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Crafted at our Ensenada, Mexico manufacturing facility, this genuine vintage-style 3-bolt Stratocaster® guitar neck features a comfortable "U"-shaped profile and 7.25"-radius maple fingerboard with 21 vintage-style frets. Although this neck features a 3-bolt design typical of '70s Strats, only the bottom two neck mounting pilot holes are available, giving you the flexibility to use this neck with many different guitar bodies.

The synthetic bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, while a gloss urethane finish on the back offers smooth playability.

Features

"U"-shaped neck profile
Maple, rosewood, or pau ferro fingerboard with 7.25" radius
21 vintage-style frets
Pre-slotted synthetic bone nut
Gloss urethane finish
Bullet-style truss rod adjustment

Specifications:

General
- Series: Necks
- Orientation: Right-Hand
- Color: Natural
- Instrument Type: Stratocaster®
- Country Of Origin: MX

Neck
- Neck Material: Maple
- Neck Finish: Gloss Urethane
- Neck Shape: "U" Shape
- Neck Thickness: 1st Fret - .820" (20.82 mm), 12th Fret - .900" (22.86 mm)
- Neck Mounting: 3 or 4-Bolt Configurable (Only two pilot holes drilled)
- Fingerboard Radius: 7.25" (184.1 mm)
- Fingerboard Material: Pau Ferro
- Position Inlays: White Dot
- Number of Frets: 21
- Truss Rod: Bullet Style
- Truss Rod Nut: Bullet Style
- String Nut: Synthetic Bone
- Nut Width: 1.650" (42 mm)
- Nut Material: Synthetic Bone

Hardware
- Tuner Mounting Config: Vintage-Style 2-Screw

Measurements
- Dimensions: 3.40x7.00x30.00 IN
- Shipping Weight: 2.80 LB
- Headstock Thickness: .540" (13.71 mm)
- Peg Hole Diameter: .397" (10.08 mm)
- Fret Size: Vintage-Style
- Scale Length: 25.5" (64.77 cm)
- Shipping Length: 30.00 IN
- Shipping Height: 3.40 IN
- Shipping Width: 7.00 IN

Miscellaneous
- Disclaimer: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
- Commodity Code: 9209940000
- Style: Vintage-Style
- Unique Features: Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)
