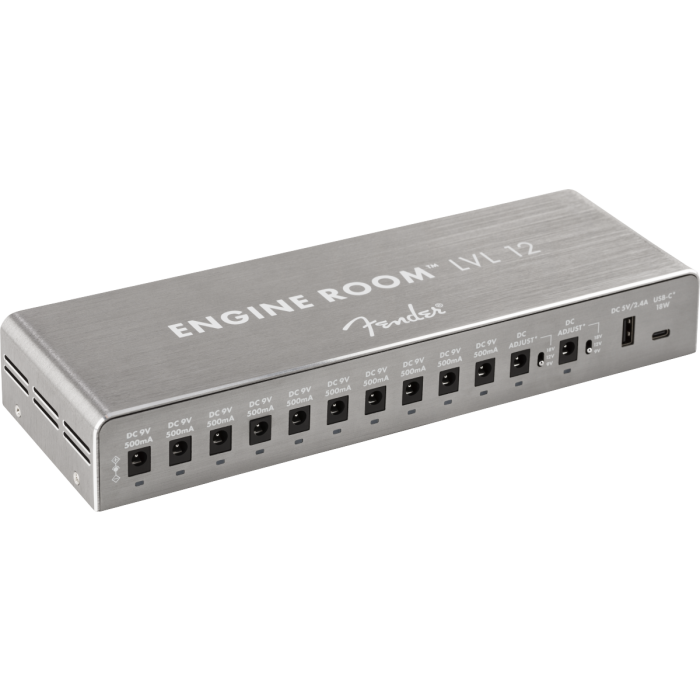

Fender Engine Room LVL12 Power Supply, 120V TGF33
$229.49
In stock
SKU
FEN-0230100012-OP
Brand new. Not available for curbside pickup. Online orders only.
Mint, Perfect, Open Box with Full Fender Warranty
Designed to accommodate all your pedalboard needs, the Engine Room® LVL 12 is ready to deliver. Featuring twelve ground isolated power outlets, (10) are capable of delivering 9Vdc at 500mA while (2) additional outlets provide switchable voltage (9v/12v/18v) via 3-way toggle or slide switch. A courtesy IEC outlet on the back allows you to add an additional Engine Room® LVL5, LVL8, or even LVL12 for the biggest rigs.
The Engine Room® Power Supply was designed by our in-house team of experts in Southern California. The chassis is crafted from lightweight, durable anodized aluminum, and its sleek, low-profile appearance is engineered to accommodate most pedalboards. Road-tested and ready for live or studio use, Fender's Engine Room® Power Supply is built to power your performance.
Features
- 12 ground isolated outputs - 10 outlets fixed 9Vdc at 500mA and 2 outlets with switchable voltage (9v/12v/18v)
- Global mains input voltage (100-240Vac) 50/60Hz for use anywhere in the world
- Standard IEC mains voltage connector
- Dimensions: Width: 11.1" (282mm), Height: 1.65" (42mm), Depth: 3.66" (93mm)
- 5V USB-A and USBC output for charging smart devices
Specifications:
General
- Series: Engine Room®
- Color: Gray
- Material: Anodized Aluminum
- Country of Origin: China
Electronics
- Output: 12 Ground-Isolated Outputs
- 10 Outputs: 9V/500mA
- 2 Switchable Outputs: 9V/500mA, 12V/375mA, 18V/250mA
- Voltage: 120V
Measurements
- Dimensions: 2.00 x 8.50 x 14.25 in
- Shipping Weight: 4.00 lb
- Product Depth: 3.66" (93 mm)
- Product Height: 1.65" (42 mm)
- Product Width: 12.84" (32.8 cm)
- Shipping Length: 14.25 in
- Shipping Height: 2.00 in
- Shipping Width: 8.50 in
Included Accessories:
- 6 x 2.1mm barrel connector, 24” (60cm) length
- 4 x 2.1mm barrel connector, 18” (45cm) length
- 2 x 2.1mm barrel connector, 12” (30cm) length
- 1 x 2.5mm to 2.1mm barrel adapter
- 1 x 2.5mm to 2.1mm barrel reverse polarity adapter
- 1 x 3.5mm TS to 2.1mm barrel adapter
- 1 x 9V Battery clip to 2.1mm barrel adapter
- 1 x IEC daisy-chain cable (male to female)
- Power Cable: 6.6 ft (2 m) IEC
Miscellaneous
- Disclaimer: ⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Case Pack Quantity: 6
The Fender Engine Room® LVL12 Power Supply is a premium pedalboard power solution, offering 12 isolated outputs to ensure clean, noise-free power for your effects pedals. Featuring a rugged anodized aluminum chassis, switchable voltage options, and an extensive set of included cables and adapters, this power supply is designed for versatility and reliability. Whether you're running standard 9V pedals or need higher voltage outputs, the LVL12 is an essential tool for any guitarist's pedalboard setup.
