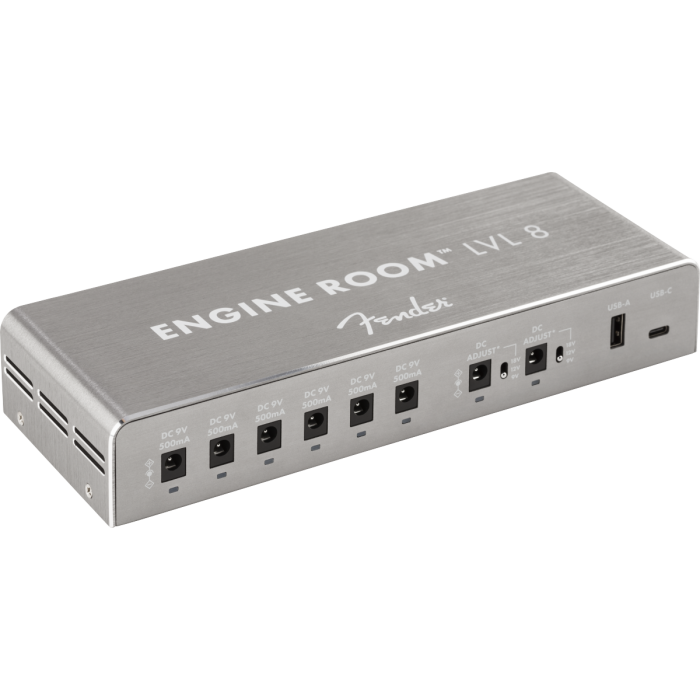

Fender Engine Room LVL8 Power Supply, 120V TGF33

Mint, Perfect, Open Box with Full Fender Warranty

Pedals need clean isolated power and Fender's Engine Room® LVL8 Power Supply is capable of the task. Featuring eight ground isolated power outlets, (6) are capable of delivering 9Vdc at 500mA while (2) additional outlets provide switchable voltage (9v/12v/18v) via 3-way toggle or slide switch. Perfect for performance or studio players and can be daisy-chained with our LVL12 for players looking for more tonal variety.

The Engine Room® Power Supply is designed by our in-house team of experts in Southern California. The chassis is crafted from lightweight, durable anodized aluminum, and its sleek, low-profile appearance is engineered to accommodate most pedalboards. Also features a 2-color LED indicator for each output, green indicating current consumption. Road-tested and ready for live or studio use, Fender's Engine Room® Power Supply is built to power your performance.

Features

• 8 ground isolated outputs - 6 outlets fixed 9Vdc at 500mA and 2 outlets with switchable voltage (9v/12v/18v)
• Global mains input voltage (100-240Vac) 50/60Hz for use anywhere in the world
• Standard IEC mains voltage connector
• Dimensions: Width: 9.6" (244mm), Height: 1.65" (42mm), Depth: 3.59" (91.3mm)
• 5V USB-A and USBC output for charging smart devices

Specifications:

General
- Series: Engine Room®
- Color: Gray
- Material: Anodized Aluminum
- Country of Origin: China

Electronics
- Output: 8 Ground-Isolated Outputs
- 6 x 9V/500mA
- 2 Switchable Outputs: (9V/500mA, 12V/375mA, 18V/250mA)
- Voltage: 120V

Measurements
- Dimensions: 2.00 x 8.50 x 11.75 in
- Shipping Weight: 3.40 lb
- Product Depth: 3.59” (91.3 mm)
- Product Height: 1.65” (42 mm)
- Product Width: 9.6” (244 mm)
- Shipping Length: 11.75 in
- Shipping Height: 2.00 in
- Shipping Width: 8.50 in

Included Accessories:
- 4 x 2.1mm Barrel Connector (24” / 60cm)
- 2 x 2.1mm Barrel Connector (18” / 45cm)
- 2 x 2.1mm Barrel Connector (12” / 30cm)
- 1 x 2.5mm to 2.1mm Barrel Connector
- 1 x 2.5mm to 2.1mm Barrel Reverse Polarity Connector
- 1 x 3.5mm TS to 2.1mm Barrel Connector
- 1 x 9V Battery Clip to 2.1mm Barrel Connector

Miscellaneous
- Disclaimer: ⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Case Pack Quantity: 6
- Power Cable: 6.6 ft (2 m) IEC

The Fender® Engine Room® LVL8 Power Supply is designed for pedalboard efficiency, featuring eight ground-isolated outputs and high-current capability for reliable performance. With switchable voltage options and a durable anodized aluminum chassis, this power supply is ideal for musicians needing a compact, noise-free power solution for their effects pedals.
