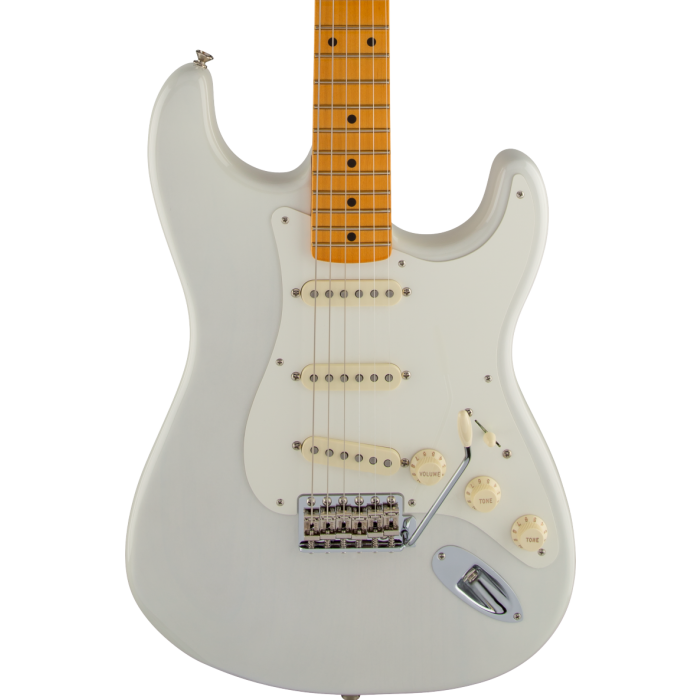

Fender Eric Johnson Stratocaster Electric Guitar. Maple FB, White Blonde

The Eric Johnson signature Stratocaster® guitar features a light two-piece alder body with deep '57-style body contours and cavities; one-piece, vintage-tinted quartersawn plain maple neck (contours sanded very smooth) with light '57-style "V"-shape, 12" fingerboard radius and highly-polished frets; special Eric Johnson single-coil pickups with countersunk screws and a five-way switch; vintage tremolo with silver-painted block; '57-style string recess; no paint between the base plate and the block; five springs (no tremolo cover); master volume; neck and bridge tone controls; thin neck-cap with staggered machine heads; and '57-style parchment pickguard. Available with .010-.046 gauge strings and thin nitrocellulose lacquer finish.

FEATURES

• Light two-piece alder body with deep 1957-style body contours and cavities
• One-piece vintage-tint quartersawn maple neck (contours sanded very smooth) with '57-style "soft V" contour
• 12"-radius maple fingerboard with 21 medium jumbo frets
• Specially voiced Eric Johnson single-coil pickups with countersunk screws and five-way switching
• Vintage-style tremolo with silver-painted block,'57-style string recess, no paint between base plate and block, and five springs (no tremolo cover)
• Master volume, neck tone and bridge tone controls

General

• SERIES: Artist
• ORIENTATION: Right-Hand
• COLOR: White Blonde
• COUNTRY OF ORIGIN: US
• PLATFORM: Artist

Neck

• NECK MATERIAL: 1-Piece Quartersawn Maple
• NECK FINISH: Gloss Nitrocellulose Lacquer
• NECK SHAPE: Soft "V"
• FINGERBOARD RADIUS: 12" (305 mm)
• FINGERBOARD MATERIAL: Maple
• POSITION INLAYS: Black Dot
• NUMBER OF FRETS: 21
• TRUSS ROD: Vintage-Style Butt Adjust
• STRING NUT: Bone
• NUT WIDTH: 1.650" (42 mm)
• NUT MATERIAL: Bone

Body

• BODY: Alder
• BODY FINISH: Gloss Lacquer
• BODY SHAPE: Stratocaster®
• BODY MATERIAL: Alder

Hardware

• BRIDGE: 6-Saddle American Vintage Synchronized Tremolo
• BRIDGE COVER/TAILPIECE: Includes Chrome Bridge Cover
• PICKGUARD: 1-Ply Parchment
• CONTROL KNOBS: Parchment Plastic
• SWITCH TIP: Parchment
• HARDWARE FINISH: Nickel/Chrome
• TUNING MACHINES: Vintage-Style Staggered
• STRINGS: Fender® USA 250R Nickel Plated Steel (.010-.046 Gauges), PN 0730250406
• TREMOLO ARM: American Vintage
• NECK PLATE: 4-Bolt Custom
• STRAP BUTTONS: Vintage-Style

Electronics

• BRIDGE PICKUP: Specially Voiced Eric Johnson Single-Coil with Countersunk Mounting Screws
• MIDDLE PICKUP: Specially Voiced Eric Johnson Single-Coil with Countersunk Mounting Screws
• NECK PICKUP: Specially Voiced Eric Johnson Single-Coil with Countersunk Mounting Screws
• PICKUP CONFIGURATION: SSS
• CONTROLS: Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge Pickup)
• SWITCHING: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

Measurements

• DIMENSIONS: 4.90x16.90x51.00 IN
• SHIPPING WEIGHT: 27.35 LB
• FRET SIZE: Medium Jumbo
• SCALE LENGTH: 25.5" (64.77 cm)
• SHIPPING LENGTH: 51.00 IN
• SHIPPING HEIGHT: 4.90 IN
• SHIPPING WIDTH: 16.90 IN
